Solar Inverter 3.2kW Diamond

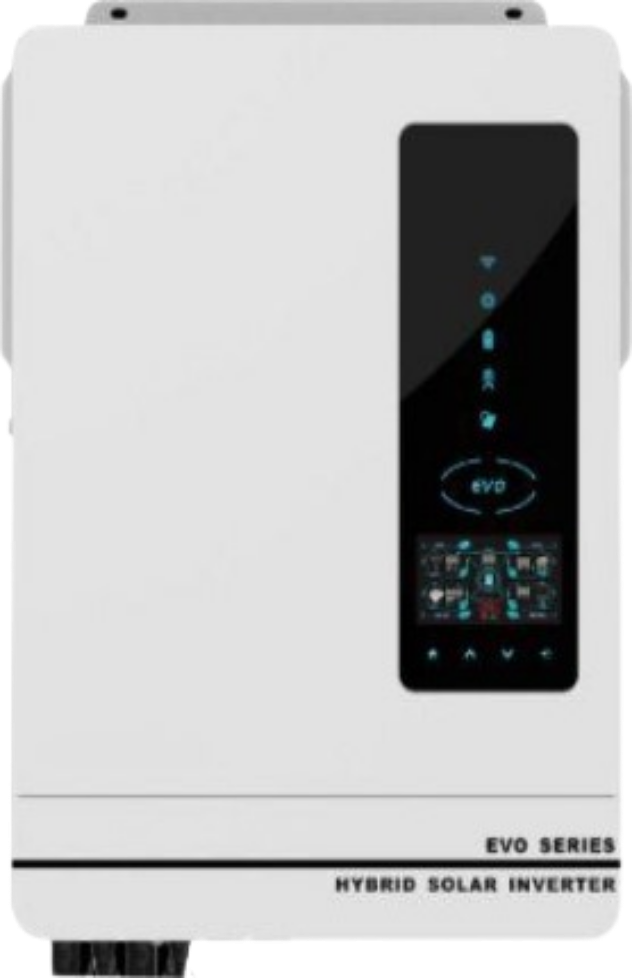

Diamond Hybrid Solar Inverter 3.2kW (Evo Series)

Features of Module

Pure sine wave solar inverter
Output power factor 1.0
Built-in 80A MPPT solar controller
Max 3000W(for 3200KVA) solar charge
High PV input voltage range(30-400VDC)
Built-in anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life
Compatible with lithium battery
WIFI available for IOS and Android
Model
RATED POWER: 3.2KVA/3000W

AC INPUT
Voltage: 230VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto sensing)

AC OUTPUT
AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
Surge Power: 6400VA
Efficiency (Peak) PV to INV: 98%
Efficiency (Peak) Battery to INV: 94%
Transfer Time: 10ms (For Personal Computers); 20ms (For Home Appliances)
Waveform: Pure Sine Wave

BATTERY & AC CHARGER
Battery Voltage: 24VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 33VDC
Maximum AC Charge Current: 60A

SOLAR CHARGER
Maximum PV Array Power: 3000W
MPPT Range @ Operating Voltage: 30-400VDC
Maximum PV Array Open Circuit Voltage: 400VDC
Maximum Charging Current: 80A

DIAMOND HYBRID SOLAR INVERTER PHYSICAL DIMENSIONS
Dimension: D x W x H (mm) 390*270*100mm
Net Weight (kg): 5.4

INTERFACE
Communication Interface WIFI

OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: –10°C – 50°C
Storage Temperature: –15°C – 60°C

RS232/GPRS
WIFI
IP21 Ingress Protection
Max. Efficiency 98%

80A MPPT
