Navasolar 3kVA Inverter and 2 x 100Ah LifePO4 Lithium Batteries Kit

The NavaSolar 3KVA Inverter Kit with 2x LifePO4 Lithium Batteries are designed to last you longer and save you money. The system can be used as a back-up or an off-grid system.

Inverter Specs

Pure sine wave solar inverter
Output power factor up to 1.0
Compatible to AC mains or generator inputs
Considerable PV input types
Build-in smart solar charger (PWM/MPPT)
Battery independent design(5kW)
Auto restart while AC is recovering
Configurable AC/Solar input priority via LCD setting
Selectable input voltage range for home appliances
and personal computer loads

Key Specifications
Model : NV-X3024
Rated Power : 3000W / 3000KVA

Input
Voltage : 208/220/230/240VAC
Selectable Voltage Range : 170- 280 VAC (For Personal Computers) | 90- 280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)

Output
AC Voltage Regulation (Batt. Mode) : 230VAC ± 5 %
Surge Power : 6000W
Effiency (Peak) : 93.5%
Transfer Time : 10 ms
Waveform : Pure sine wave

Battery And AC Charger
Battery Voltage : 24VDC
Floating Charge Voltage : 27.4VDC
Overcharge Protection : 30VDC

Solar Charger
Maximum PV Array Power : 1500W
MPPT Range @ Operating Voltage : 30~115VDCVDC
Maximum PV Array Open Circuit Voltage : 145VDC
Maximum Solar Charge Current : 60A
Maximum AC Charge Current :60A
Maximum Charge Current : 60A

Operating Environment
Humidity : 5% to 95% Relative Humidity(Non- condensing)
Operating Temperature : 0°C - 40°C
Storage Temperature : - 15°C - 60°C

NV-LFP-12100E (12.8V100Ah)

NavaSolar NV-LFP series use quality trustable LiFePO4 cells, with build-in BMS system. IP65 protection, support series and parallel use, is an ideal choice for outdoor, small energy storage, marine and other fields.

Features
-Safest lithium battery technology
-Lithium iron Phosphate Battery (LiFePO4 )
-Eco-friendly
-Special protection plate, supporting parallel
-Multiple safety protection
-Intelligent balancing function
-20 Years Designed service life

Specifications
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Standard Discharge Time 100A @60min
Energy 1.28K Wh
IR <= 15mQ
Self Discharge <=2%/Month
Cells Square 100Ah
Cycle Life 2500 times
Size 306x169x215
Weight 10.1

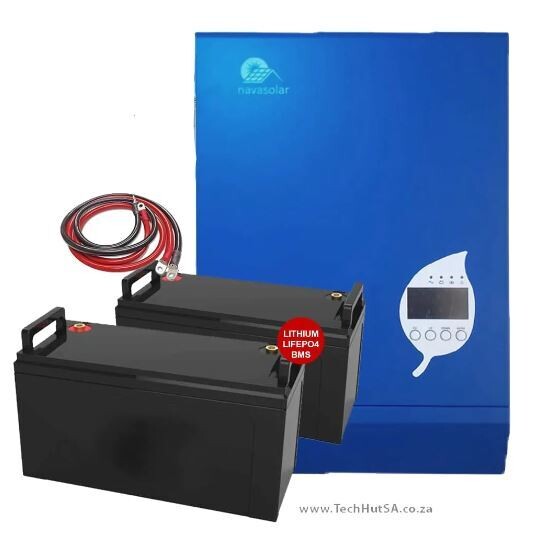

What’s in the Box?
1 x Nava Solar 3KW XSeries 24V OFFGRID Solar Inverter 60A MPPT - 2 Years Warranty
2 x Nava Solar Lithium LiFePO4 100AH 12V 1.28 kWh Battery - 2 Years Warranty
2 x Battery cables - 25mm
