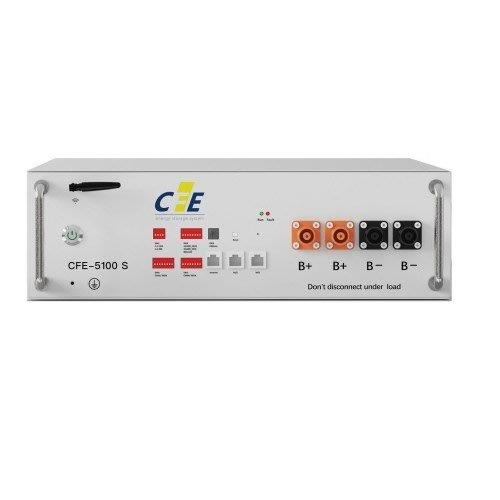

CFE Battery Lithium Ion 5.12kWh 51.2V 100Ah

1.Safety :
LFP(Lithium ion Phosphate) the highest safety
2.Up to 8 Parallel :
Flexible to increase voltage capacity without any other equipments or settings
3.Cycle Life :
80% of initial capacity after 6000
4.WiFi & APP :
Integrated WiFi Modem OTA online upgrade convenient after-sales service
5.Installation :
Simple buckle fixing minimize the installation time and cost
6.High-precision SOC :
Accurate sampling of voltage and current SOC mathematic more accurate and never jump





Product Parameters
Basic Parameters

CFE 5100S

Nominal Voltage（V）

51.2

Nominal Capacity（Wh）

5120

Usable Capacity（Wh）

4608

Dimension（mm）

442*500*133

Weight（Kgs）

42

Charge


Discharge Current（A）
50(Recommend)

100(Max)

100(Peak@15s)

Communication Port

CAN / RS485

Single string quantity（pcs）

8

Charge Working Temperature（℃）

0～50

DisCharge Working Temperature（℃）

-10～50

Storage Temperature（℃）

-20～60

Humidity

5～95% (No Condensed Water)

Altitude（m）

＜2000

IP Rating

IP20

Warranty

10 years or 3650 cycles

Estimated Cycle life

6000

Authentication Level

CE & TUV(IEC 62619, IEC 62040) UN38.3
Cooling Type

Ambient Cooling

Installation

Cabinet or Wall Mounting
