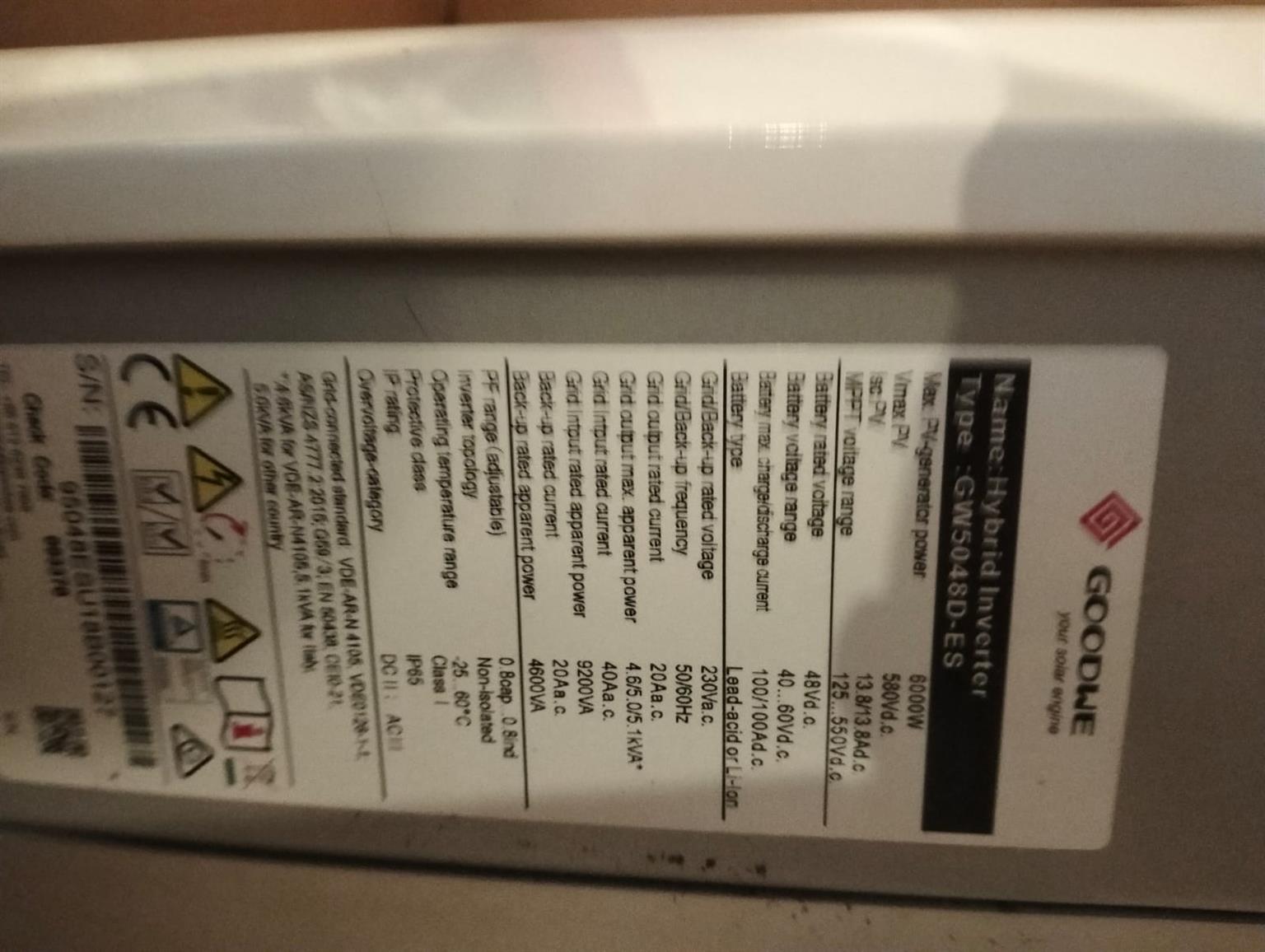

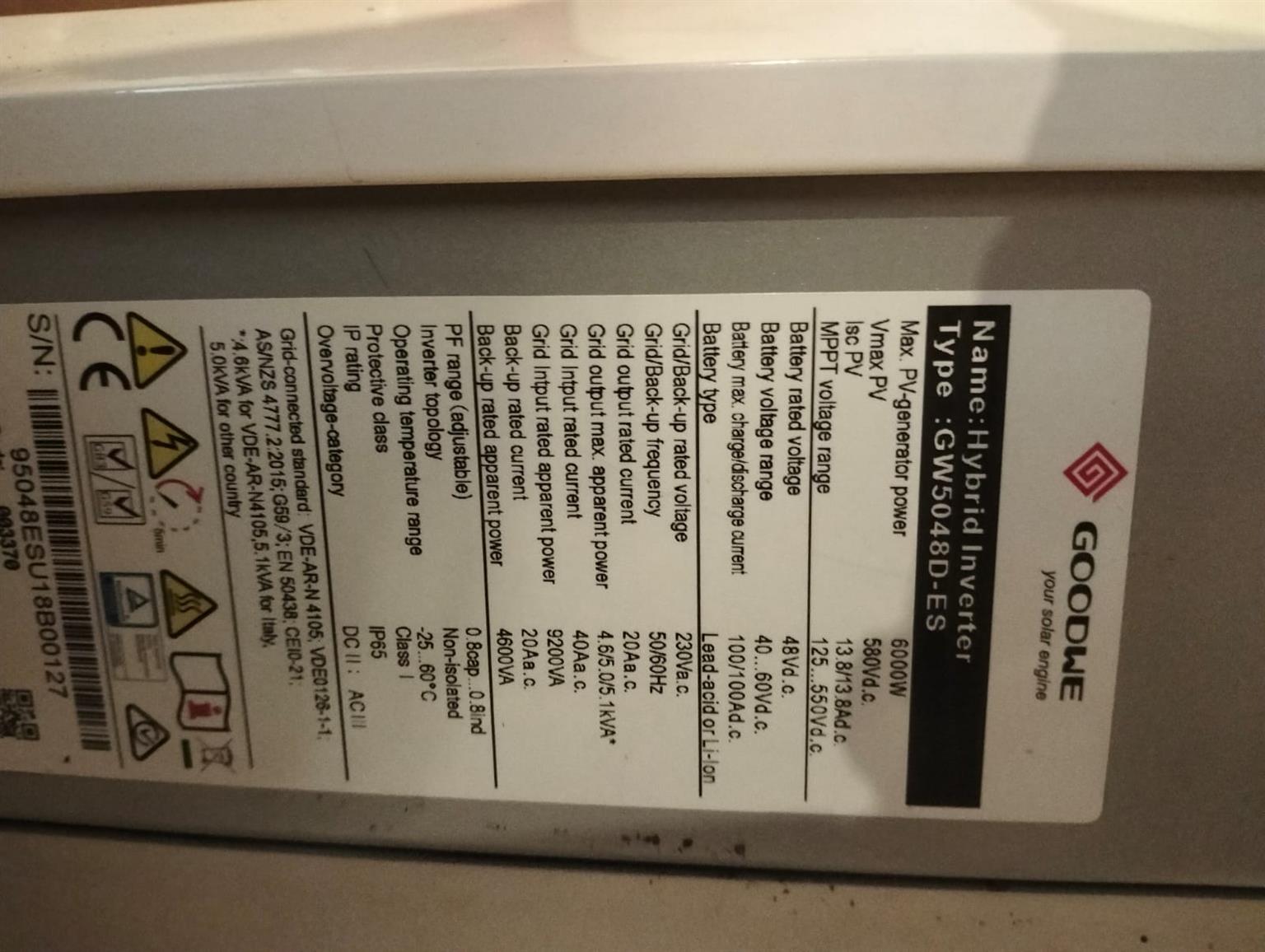

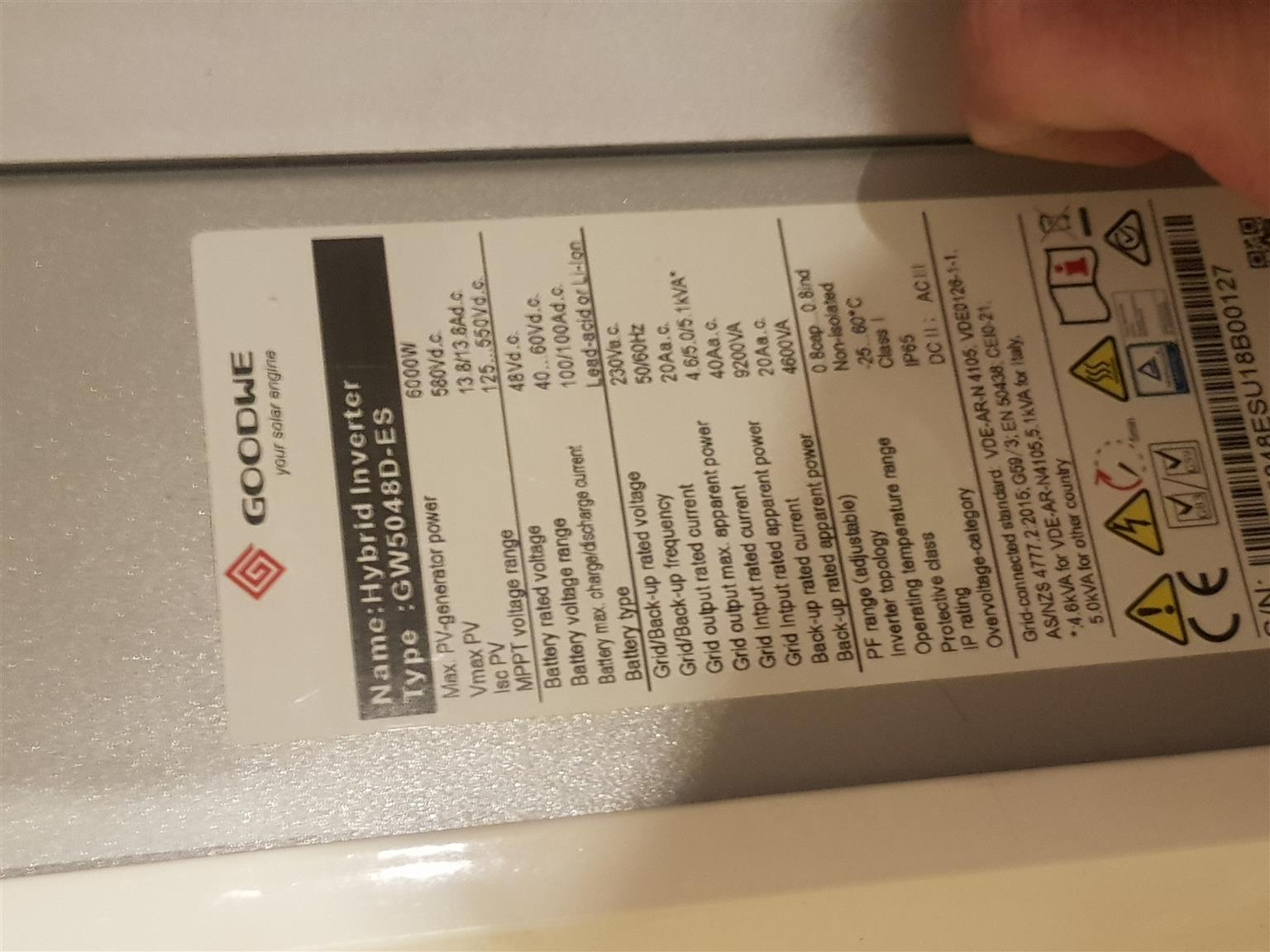

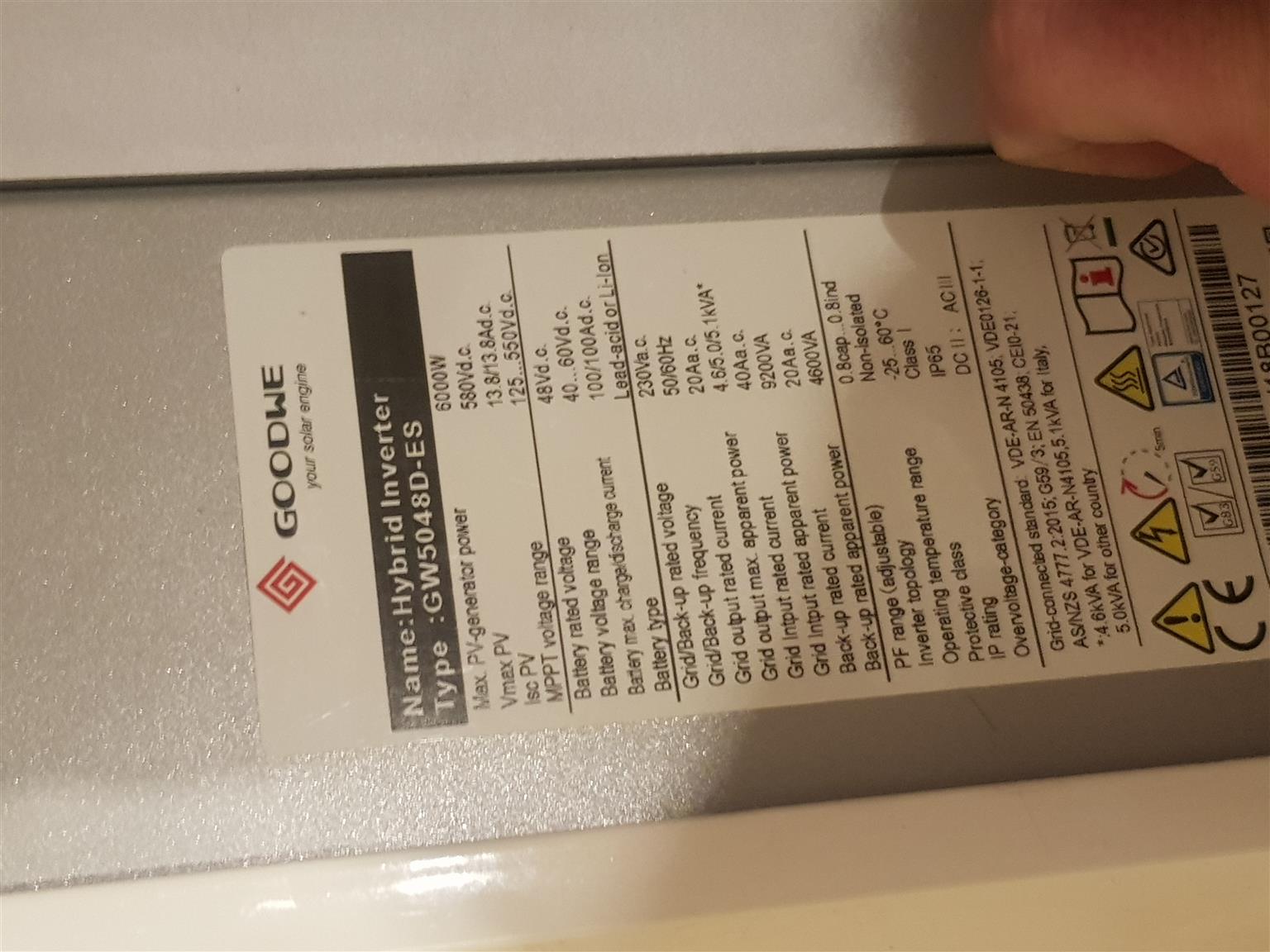

Model: GoodWe GW5048D-ES Type: Single-Phase Hybrid Inverter (On-grid & Off-grid)

Model: GoodWe GW5048D-ES
Type: Single-Phase Hybrid Inverter (On-grid & Off-grid)
Nominal Battery Voltage: 48V
Max. DC Input Power (PV): 6500W
MPPT Voltage Range: 125V - 550V
Max. DC Input Current (per MPPT): 11A / 14A (varies slightly by source)
Max. Charging/Discharging Current: 100A
Nominal AC Output (Grid): 230V, 50/60Hz
Max. AC Output Power (On-Grid): ~5000VA (Nominal), ~7360VA (Max)
Backup Power (Nominal): 4600VA
MPPTs: 2
Protection Rating: IP65
Dimensions (W×H×D): 516 × 440 × 184 mm
Weight: 30 kg
Communication: CAN, RS485, WiFi
