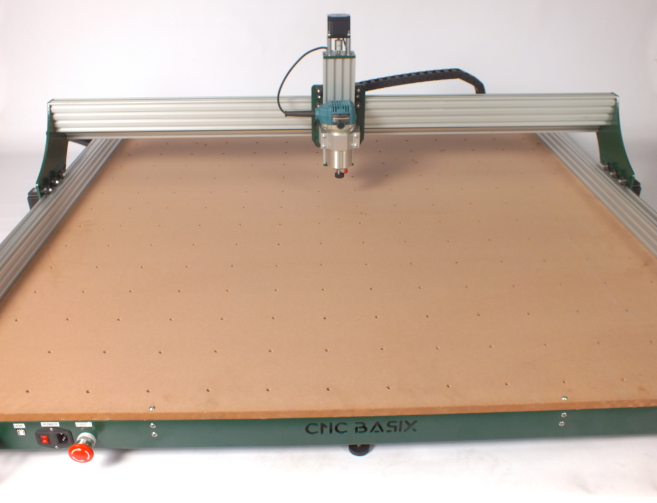

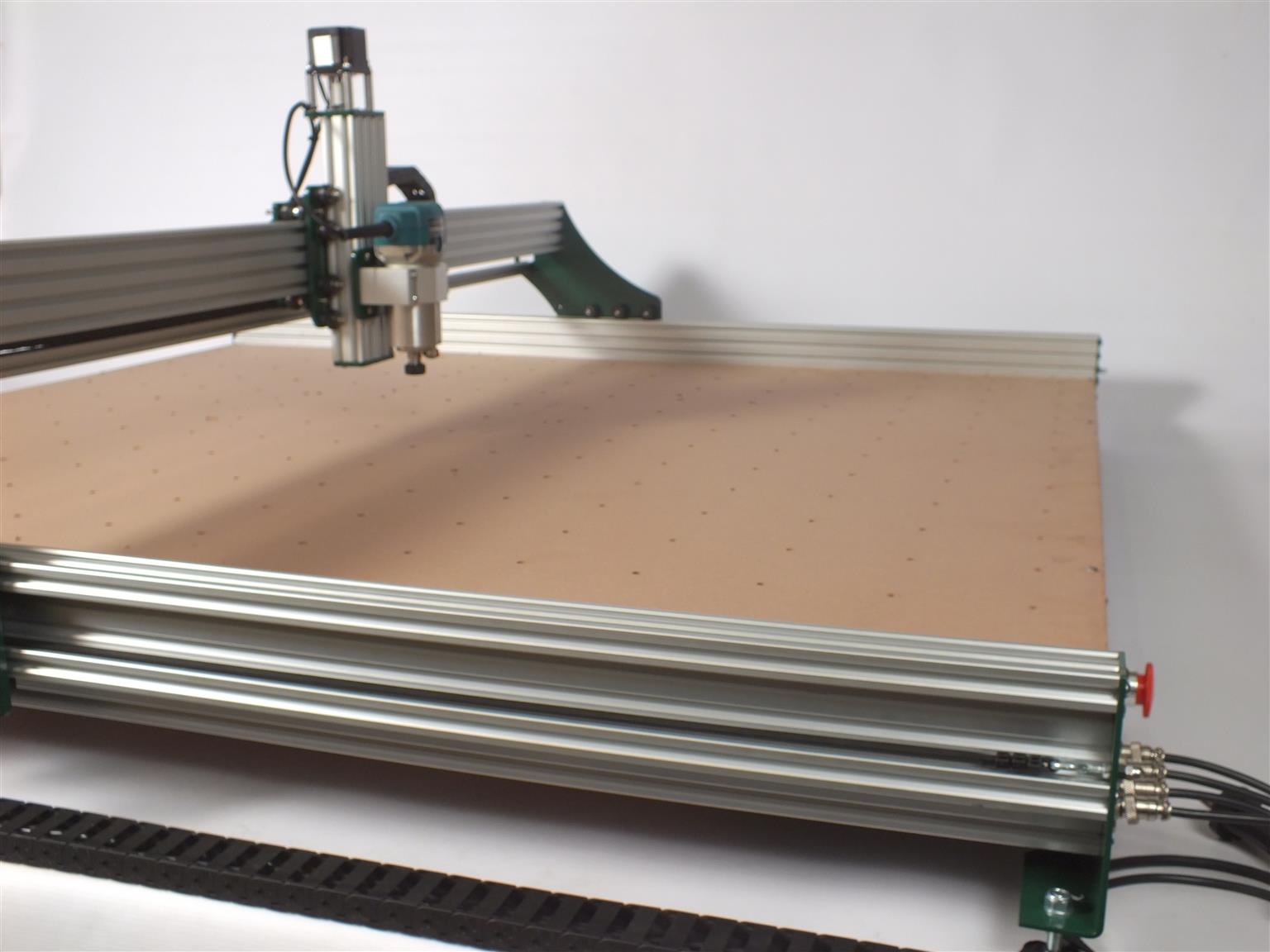

CNC Machine 1x1m

1x1m CNC Machine Specs:
a New line of next-gen CNC routers that blur the line between hobby desktop machines and commercial machines, while offering best in class performance AND affordability. Our machines are in a completely different class of performance able to operate for long hours everyday of the week. These machines are not high accuracy machines due to timing belt driven.

This machine is perfect for cutting wood, PCBs and perspex. If you would like to we can upgrade the X, Y and Z Nema 23 Stepper Motors if you would like more torque on the stepper motors, please select this option when you place your order. If you would like to cut aluminium for production purposes you can have a look at out Lead Screw CNC Machine and our Ball Screw CNC Machines.

1x1m CNC Machine Features:
Footprint: 1000mm x 1000mm at the base *Stock size measured from base
Work Area: 800mm x 800mm x 50mm *Stock size
Cutting depth 50mm Depending on type of bit used.
Open ends allow pass through of longer materials.
All aluminium frame.
5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)
Collets 3mm, 6mm

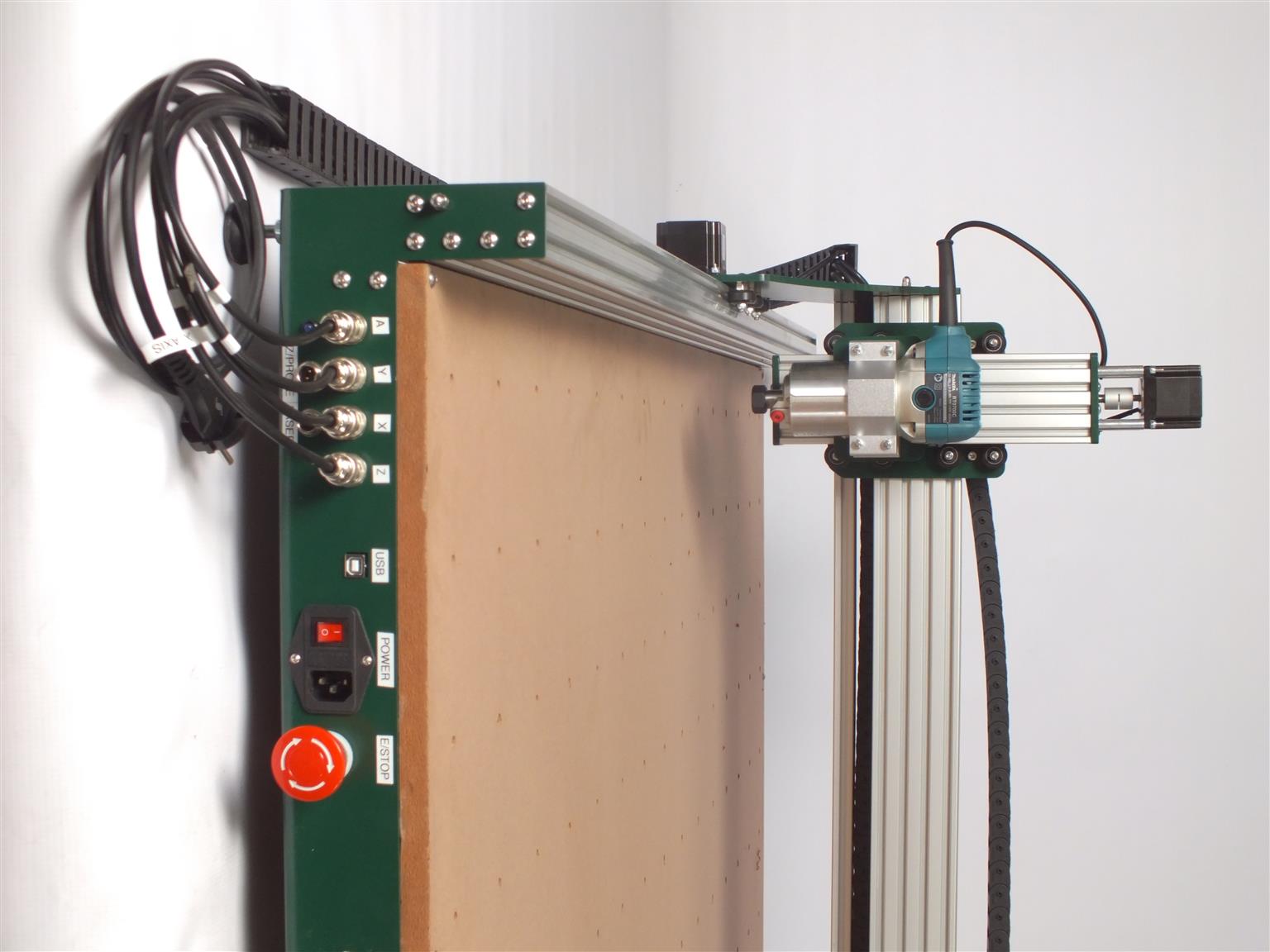

Electronics controller box with USB cable connection (cable included)

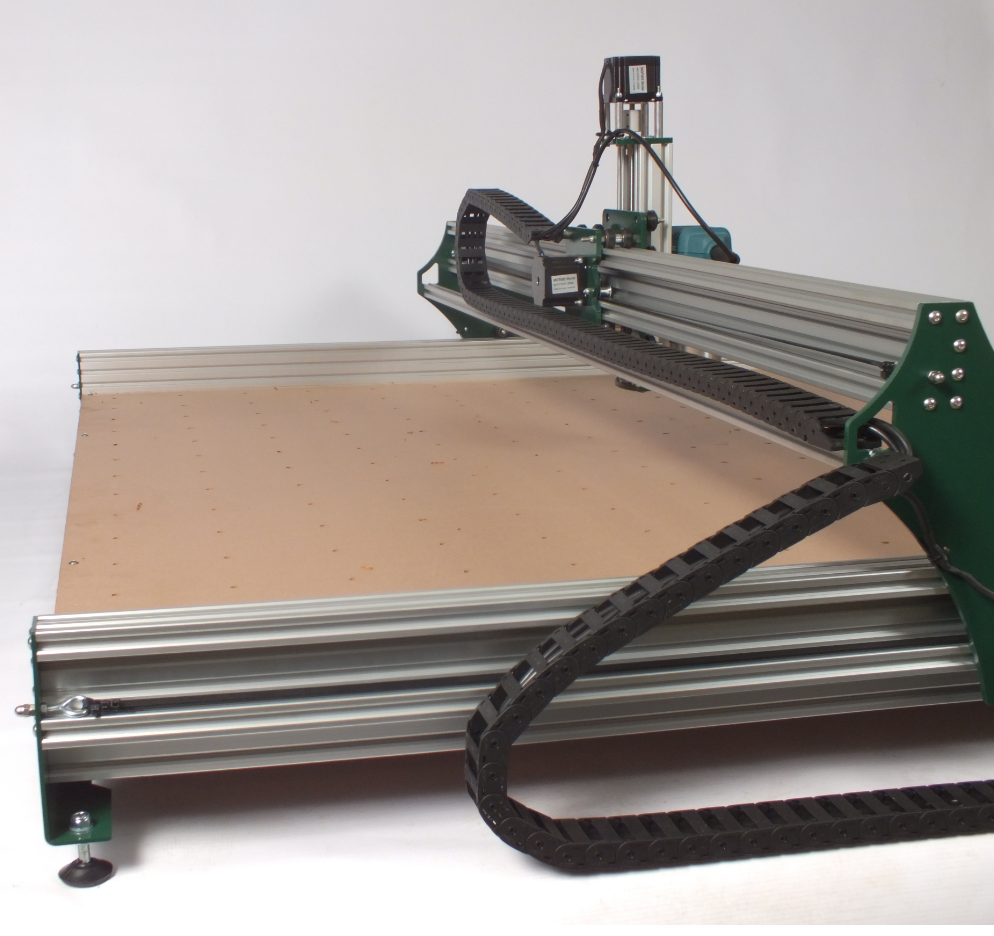

Full cable management with X & Y axis cable drag chains.
Makita RT0700C 700w Router (12 month warranty from any Makita dealer) 6 months warranty
Manual Speed Controlled between 12 000 RPM – 30 000 RPM.

*The machine comes with a MDF wasteboard including fastening clamps.

Requirements:
Personal computer or Laptop running Windows 7, 8 or 10.
USB port on computer
Free Downloadable Software & Free Downloadable Designing Program

Specifications:

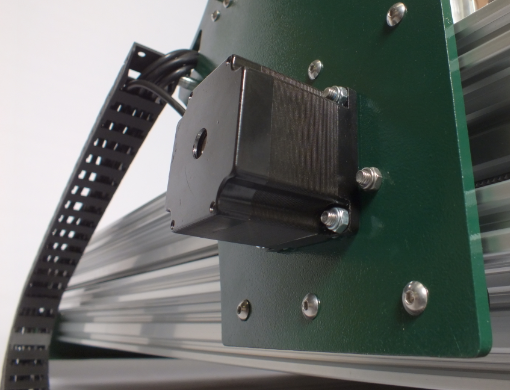

4x Nema23 stepper motors 12.6kg/cm 175oz/in.
4 Axis Stepper Motor Driver Controller Board.
24V 10A 250W Power Supply.
GT2 reinforced neoprene 3mm pitch timing belts on X & Y axis.
Dual motors on Y axis.
T8 lead screw on Z axis
Configured resolution: 0.3mm
65mm Router Spindle Mount (suitable for Makita RT0700C).

Controlling Software:
Easel
Open Builds

Controlling Software For Laser:
Laser GRBL

Additional Designing Software:
Ink Scape
Fusion 360
