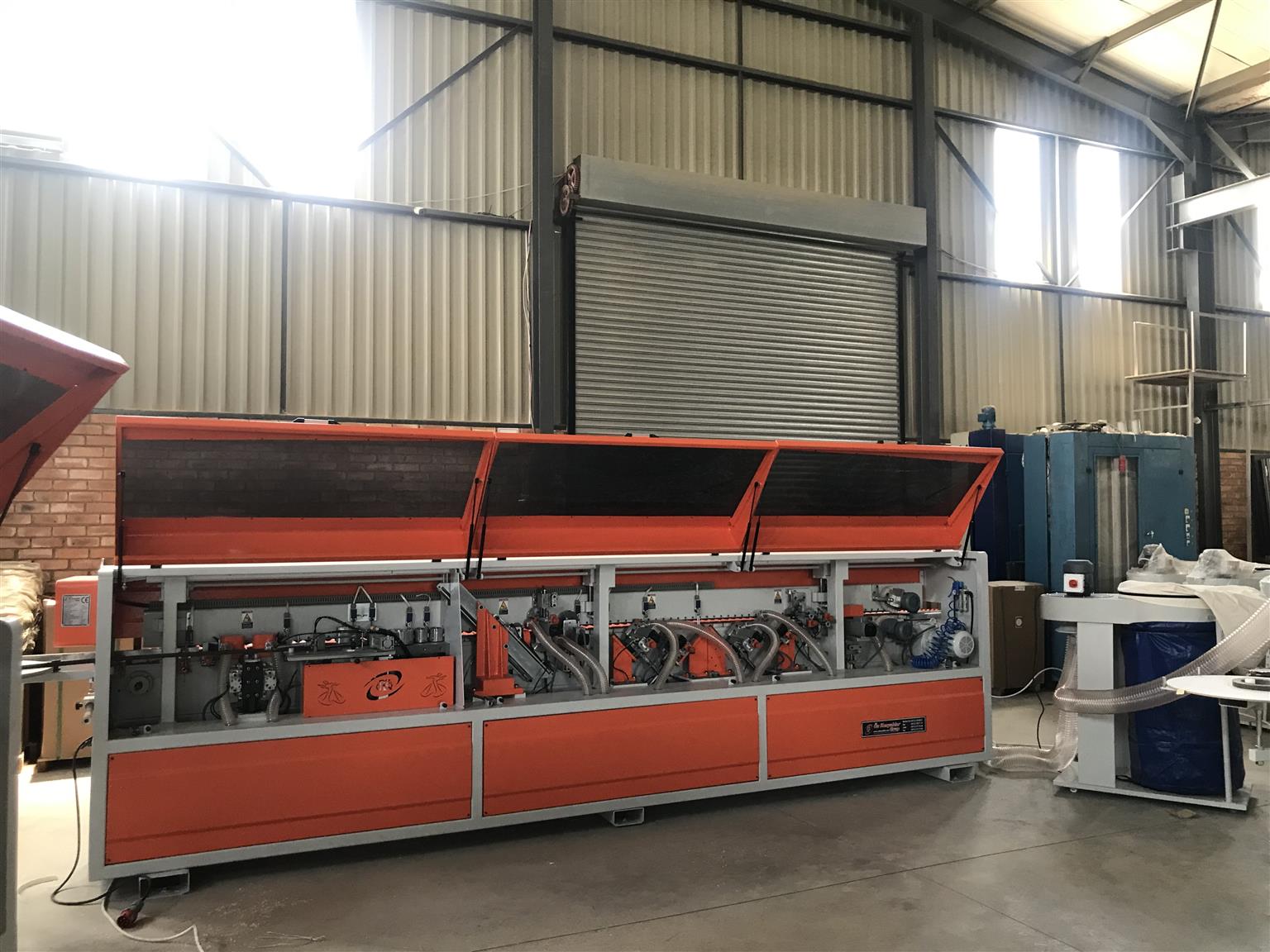

NEW !! FNK 530 FULL AUTOMATIC EDGEBANDER (PRE-MILLING-CORNER ROUNDING UNITS)

FNK530 FULL AUTOMATIC EUROPEAN EDGE BANDING MACHINE / EDGEBANDER

**INTEGRATED DUST EXTRACTOR**

AND EXTRA FREE 2000 m3 DUST EXTRACTOR

Product Features

Pre-milling, Front-Back Trimming, Bottom-Top Trimming,

Corner Rounding Unit, Scraping, Grooving, Buffing

"FNK 530 PLUS (FULL AUTOMATIC)
TECHNICAL SPECIFICATIONS"

Voltage/Frequency. 380/400 V – 50 / 60 Hz
Glue Heat Time (Approx.) 25 min
Clamping Thickness 0.40mm – 3mm
Clamp Height 3mm – 60mm
Working Speed (mm/min) 14.000 mm/min
Electrical Power 11 KW
Redictor Speed 18 RPM / min
Pinomatic Bar Pressure 6 Bar
Glue Boiler Volume 3 kg
Pre-Milling Motor Speed x2 12000 RPM / min
Front-Back Trimming 12000 RPM / min
Milling Speed 12000 RPM / min
Milling Cutter 6 BLADE 3.R
Scratching Power 1 mm
Buffing Engine Speed 3000 RPM / min

DIMENSIONS
Lenght 5630 mm
Height 1500 mm
Width 800mm

*All our machinery are built according to CE Standart

EAST EURO INTERNATIONAL PTY LTD
Adress: Unit 4, 1012 Morkel Close, Halfway House, Midrand, Johannesburg
info@easteuro.co.zaview email...
0636682915view more

Facebook : easteurointernational
Instagram : easteurointernational

We are waiting to visit our showroom..
