2023 DMG MORI NLX2500SY 700 CNC Lathe for sale

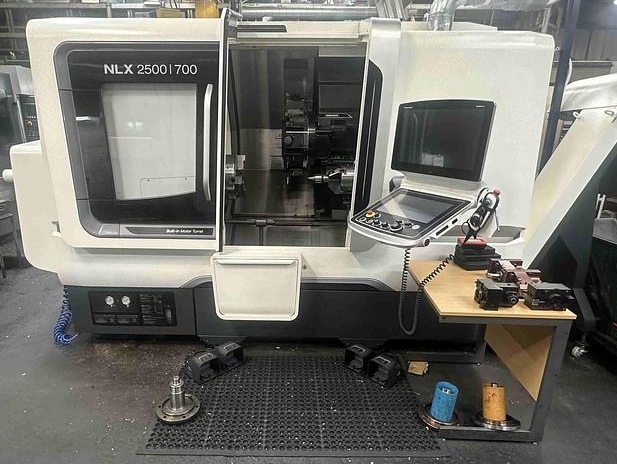

2023 DMG MORI NLX2500SY 700 CNC Lathe


Main Spindle: 2,500 rpm
Milling Spindle (Y-Axis): ±50 mm travel
Sub-Spindle: 5,000 rpm for back-end operations
Turret: 12-station live tooling turret (BMT)
Control System: DMG Mori ERGOline With Celos Software
Bar Capacity: 102 mm
Distance Between Centres: 700mm
Standard Chuck Size - Spindle 1: 12"
Standard Chuck Size - Spindle 2: 8"
Bar Work Capacity: 102mm
No of Tool Stations: 12
X Axis Travel: 260mm
Z Axis Travel: 795mm
Y Axis Travel: +/-50mm(100mm)
C Axis Travel: 360Deg
Max Main Spindle Speed: 2500rpm
Max Sub Spindle Speed: 5000rpm
Swing Over Bed: 920mm
Swing Over Cross-Slide: 742mm
Max Turning Diameter: 366mm
Standard Turning Diameter: 271mm
Max Turning Length: 705mm
B Axis Travel: 734mm
Min Spindle Indexing: 0.001゜
Shank Height for Square Tool: 25mm
Boring Bar Shank Diameter: 50mm
Rotary Tool Shank Diameter: 26mm
Turret Indexing Time: 0.27sec
Max Rotary Tool Speed: 6000rpm
Rapids(X,Z,B): 30,000mm/min
Rapids (Y): 10,000mm/min
Main Spindle Motor Power: 18.5kW
Sub Spindle Motor Power: 11kW
Rotary Tool Motor Power: 5.5kW
Electrical Power Supply: 37.6kVA
Coolant Tank Capacity: 366L
Machine Dimensions: 3980x2106x2200mm
Machine Weight: 6360kg
