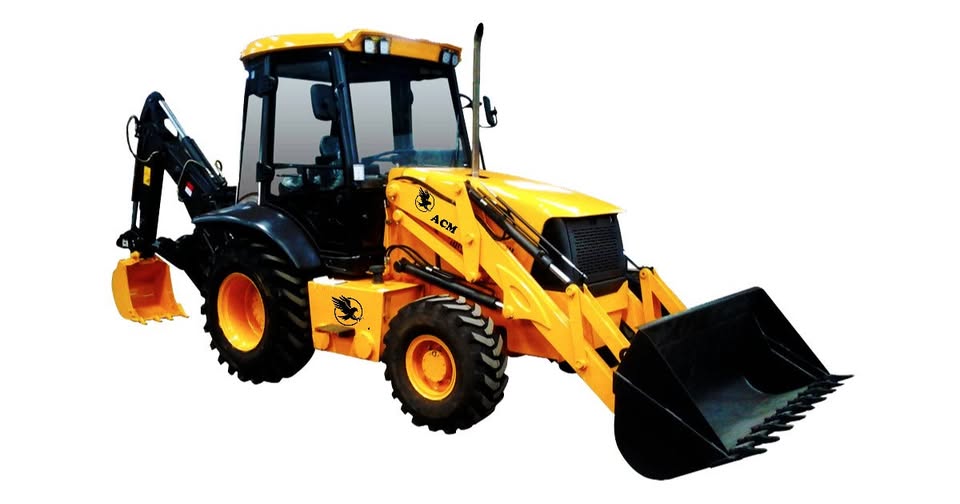

ACM T60 - TLB 60kw

Contact Sales: 083 708 7494view more Joos: 065 6600 942view more Muldersdrift Product Description Total Weight: 6600kg Overall Dimensions: 7400 x 2170 x 2950 mm Turning Radius: 5000mm Backhoe Volume: 0.2-0.3 cbm Loading Bucket Volume: 0.8-1 cbm Engine No. of Cylinders: 4 in-line, turbo-charged, water-cooled. Bore and Stroke: 102mm x 120mm Displacement: 3.261L Rated Power: 60kW Transmission System Hydraulic Torque Converter: XN280 Drive Method: 4×4 Number of speed forward: 2 (high/low speed) Number of speed reverse: 2 (high/low speed) Speed First Forward: 6km/h / 12km/h Second Forward: 14.5km/h / 29km/h First Reverse: 6km/h / 12km/h Second Reverse: 14.5km/h / 29km/h Axle Axle Type: Hub Reduction Axle Front Axle Track: 1620mm Rear Axle Track: 1340mm Hydraulic System Hydraulic Motor: Gear Pump Model: CBF1024, VHP2050 Flow Rate: 80L/min Working Pressure: 22.5Mpa Electrical System – Pilot Joystick Control Voltage: 24V Alternator Capacity: 4kW Battery Capacity: 210AH Front Wheels (Size & Ply Rating): 21.5 – 16 Rear Wheels (Size & Ply Rating): 15-24 Diesel Fuel Tank: 125L Hydraulic System Fluid: 132L Backhoe Part Backhoe Bucket Width: 560mm Backhoe Bucket Weight: 185kg Maximum Outrigger Width (Extended): 2900mm Minimum Outrigger Width (Transport): 2020mm Loader Part Bucket Width: 2030mm Bucket Weight: 350kg
