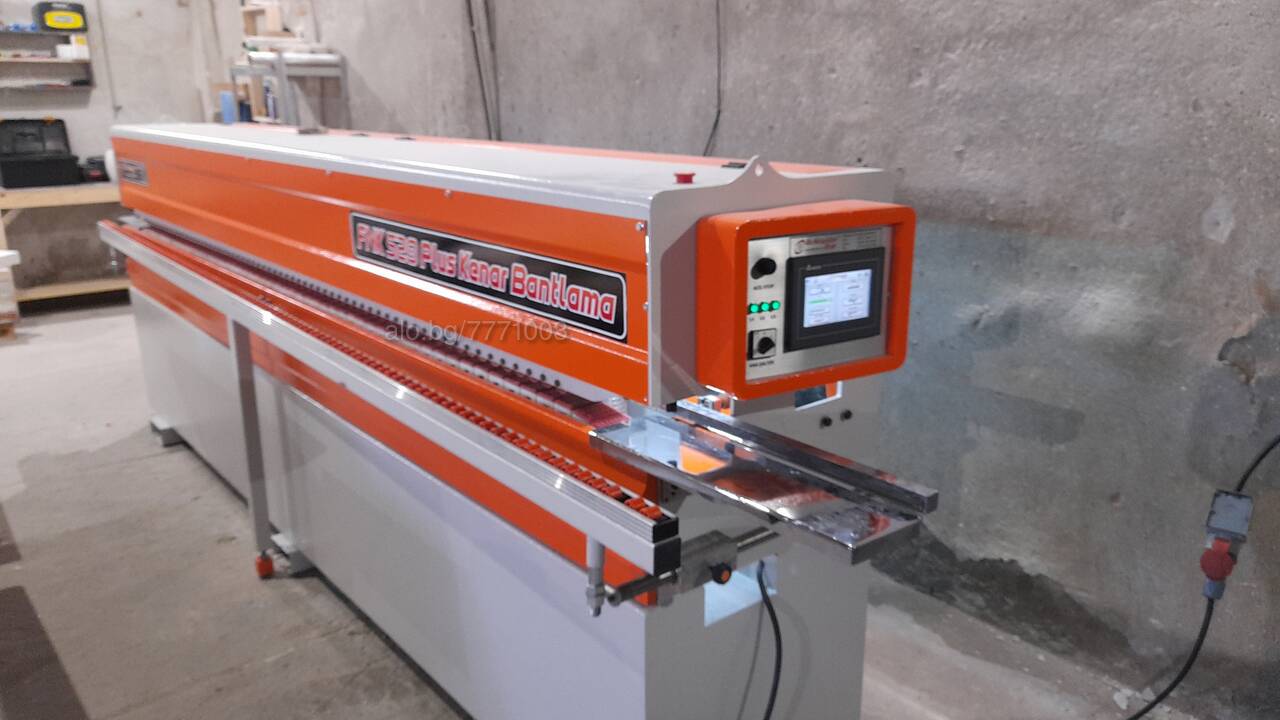

FNK 520 PLUS FULL AUTOMATIC PREMILLING - CORNER ROUNDING EDGE BANDING MACHINE

Do you need a NEW Edgebander with Touch Screen, pre-milling and corner rounding unit !!

FNK 520 PLUS FULL AUTOMATIC EDGE BANDING MACHINE

Pre-Milling, Front-Back Trimming, Corner Rounding Unit, Scraping, Buffing

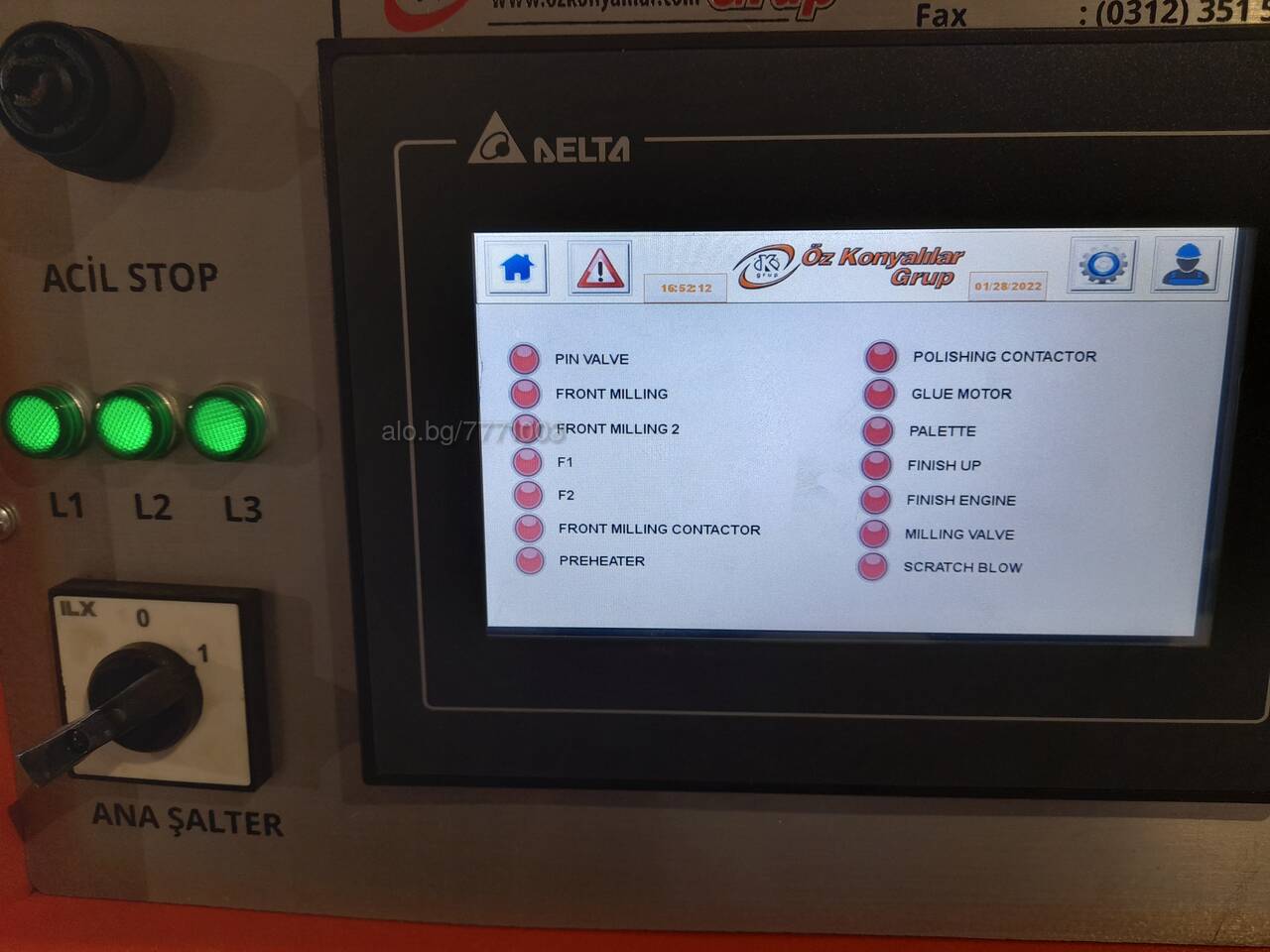

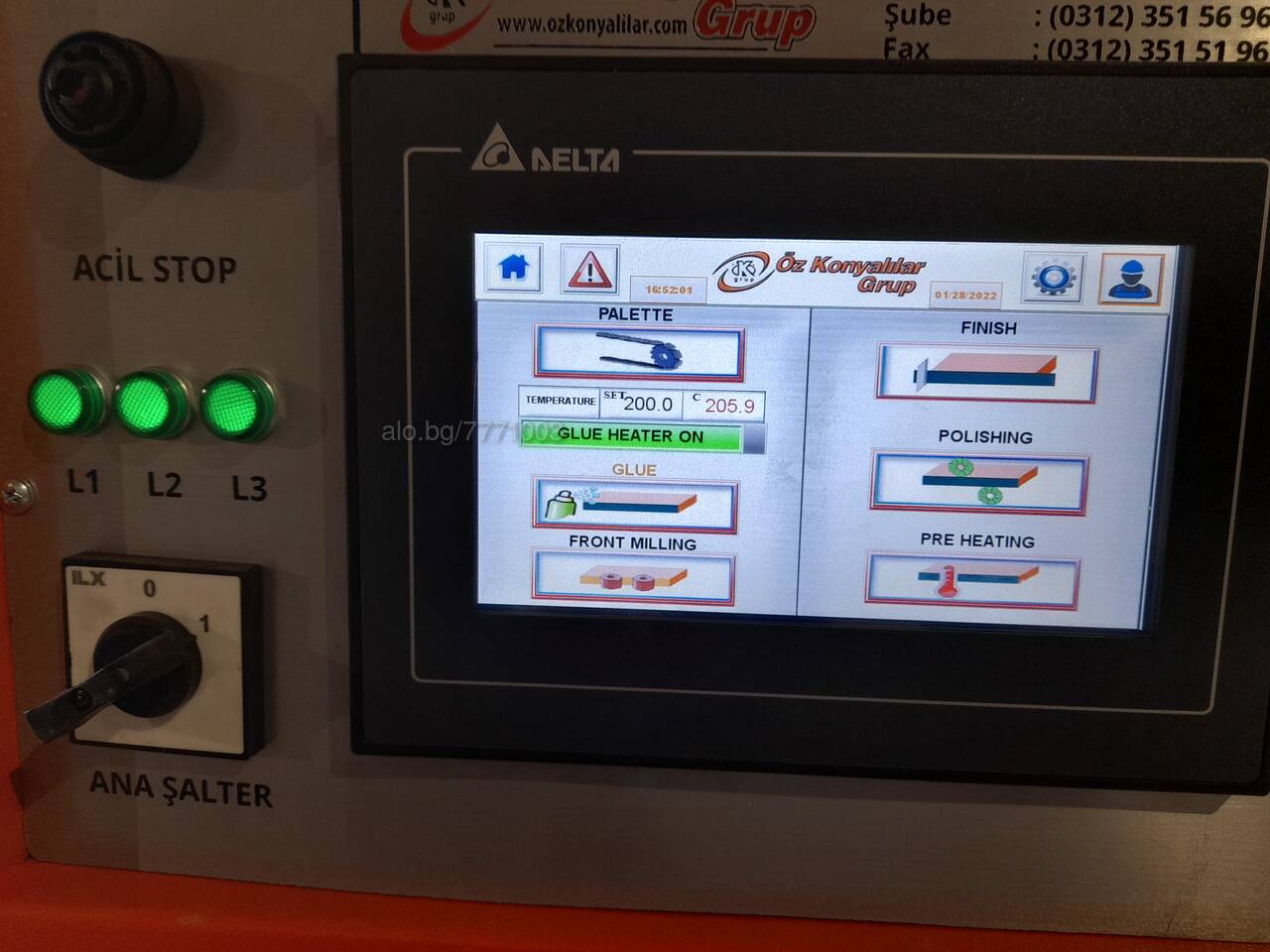

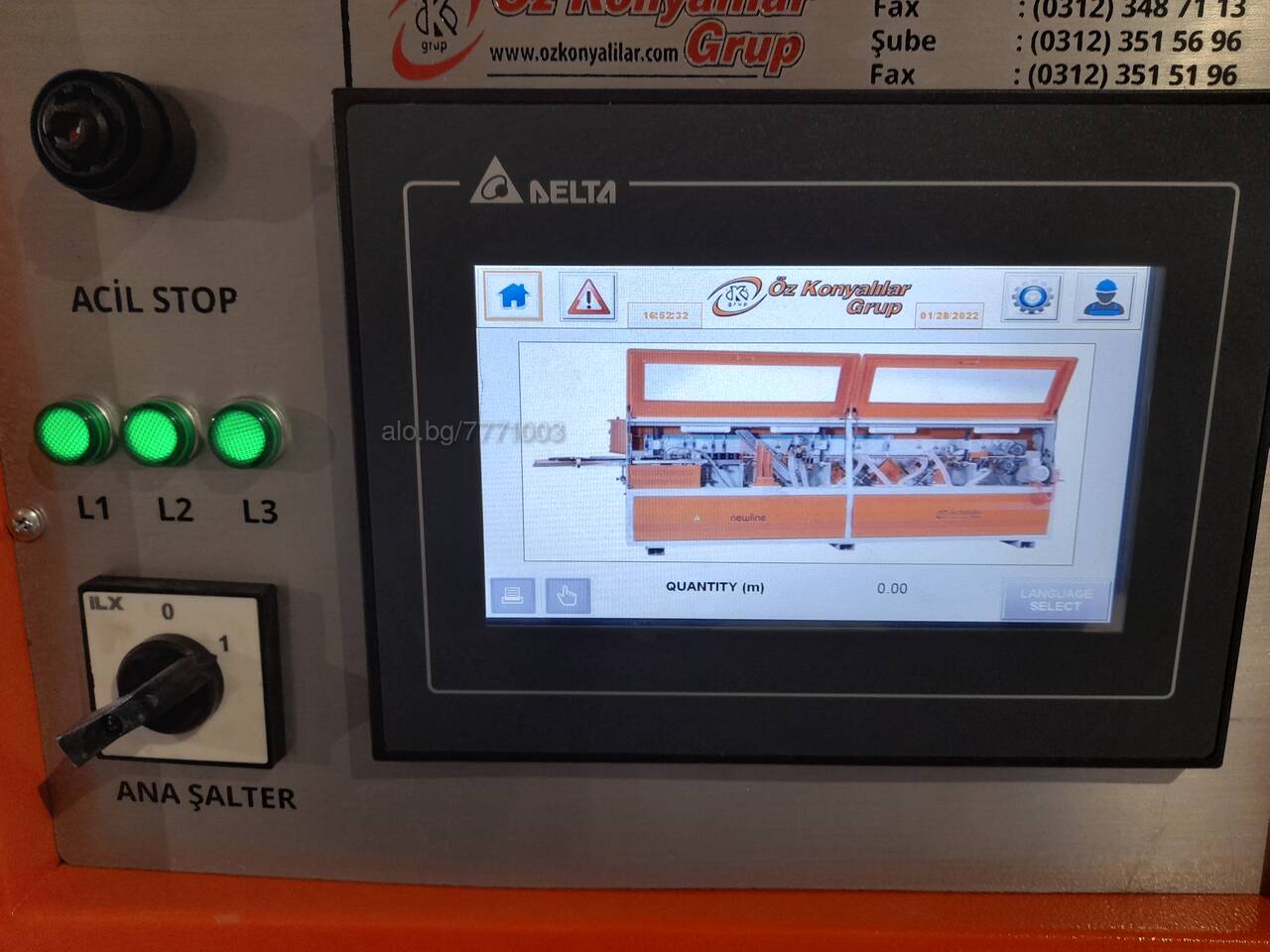

Touch Screen, Pre-Heating, Cleaning Agent spraying system

**Diamond Cutter for Pre-Milling is Optional

**INTEGRATED DUST EXTRACTOR

Made in TURKEY

TECHNICIAL SPECIFICATIONS

GLUE HEAT TIME (APPROX.) - 25 min.
CLAMPING THICKNESS - 0.40mm – 3mm
CLAMP HEIGHT - 3mm – 60mm
DIMENSIONS OF THE PIECE TO BE EXTRACTED - 80mm – 150mm
WORKING SPEED (MM/MIN) - 14m/min
ELECTRICAL POWER - 7,5 KW
REDICTOR SPEED - 18 rpm/ min
PINOMATIC BAR PRESSURE - 6 Bar

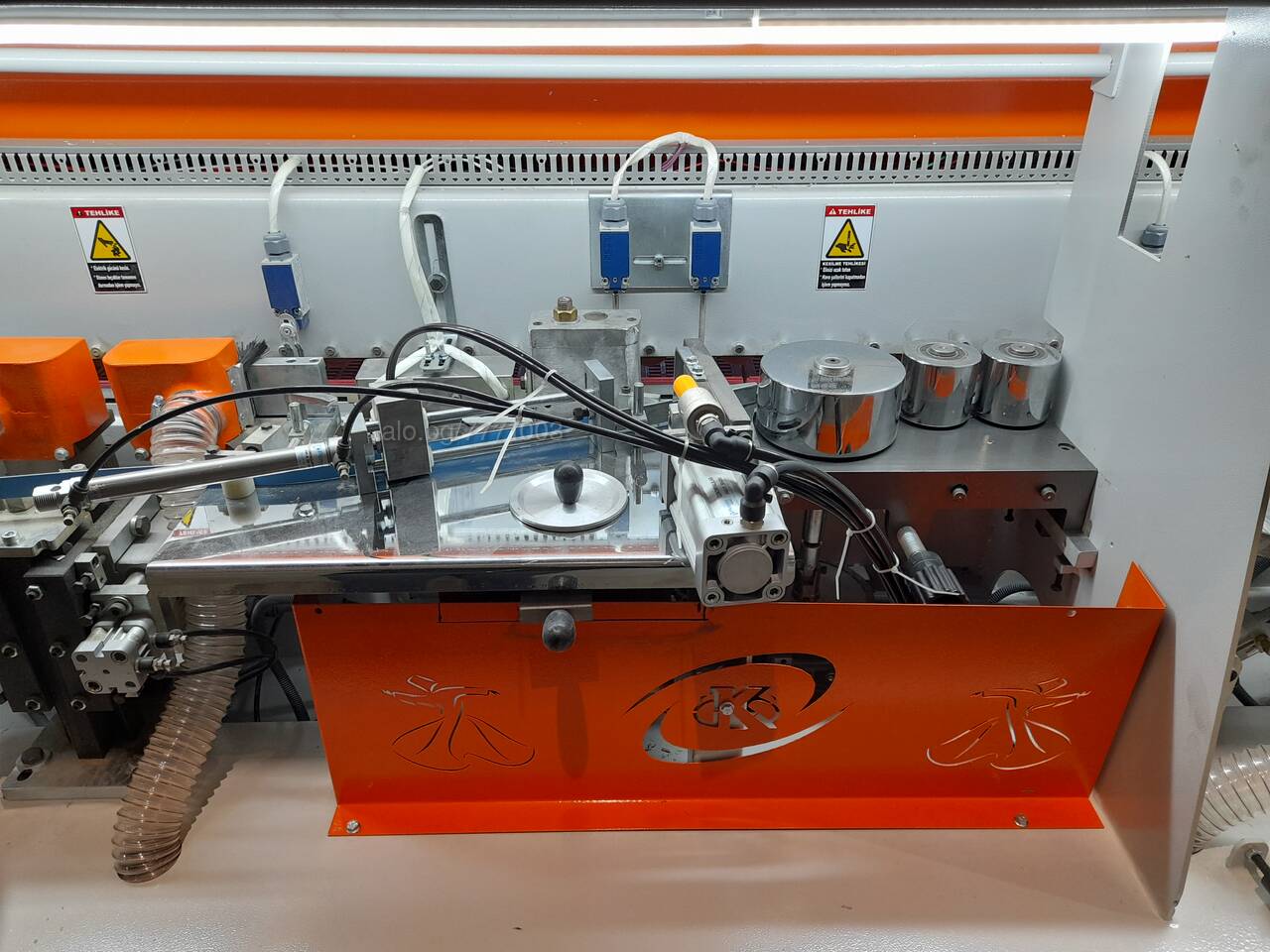

GLUE BOILER VOLUME - 3 kg

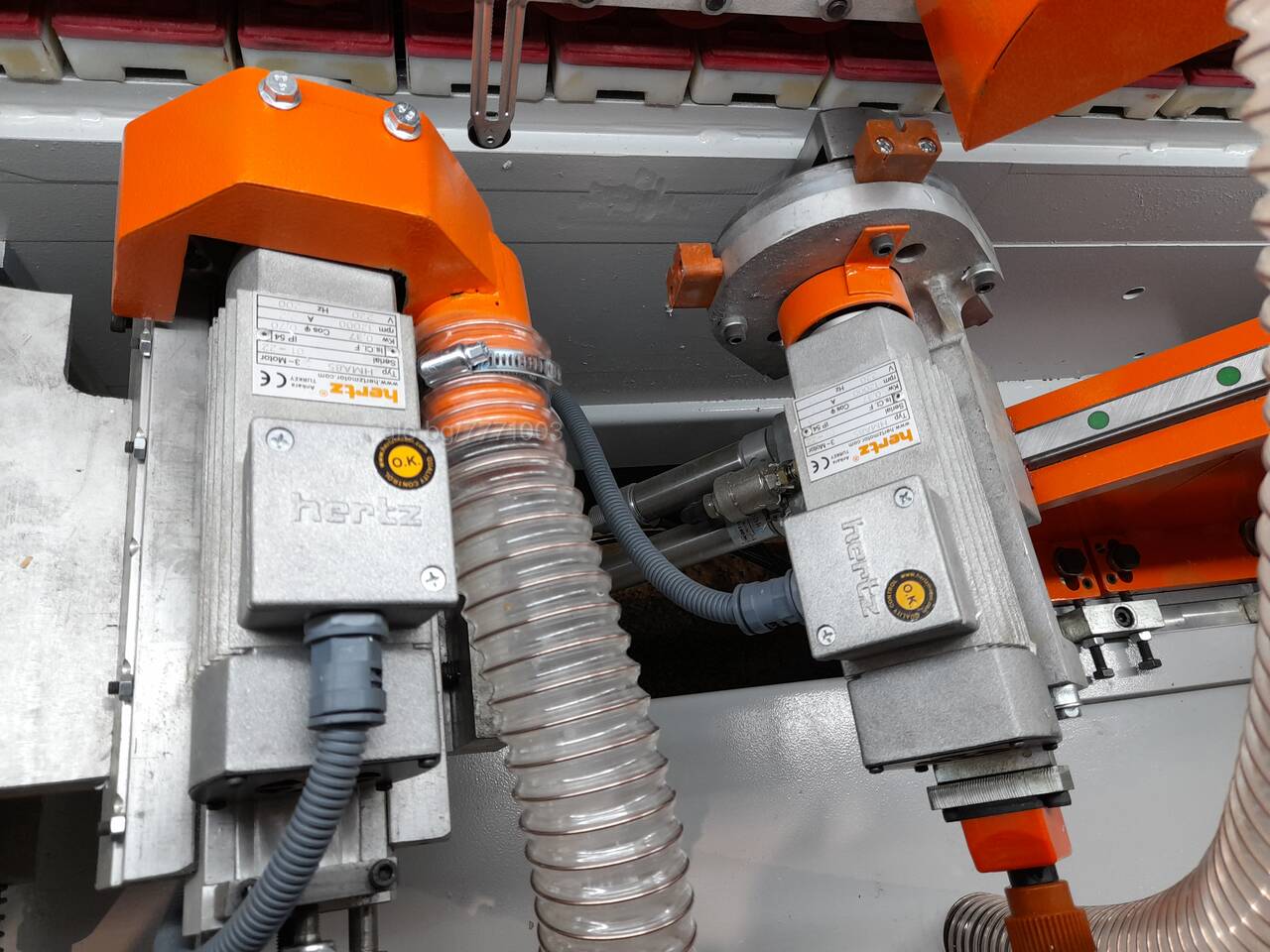

PRE-MILLING MOTOR x2 - 12000 rpm/min
FRONT-BACK TRIMMING MOTOR - 12000 rpm / min
MILLING MOTOR - 12000 rpm/min
MILLING CUTTER 6 BLADE 3.R
SCRATCHING POWER - 1 mm

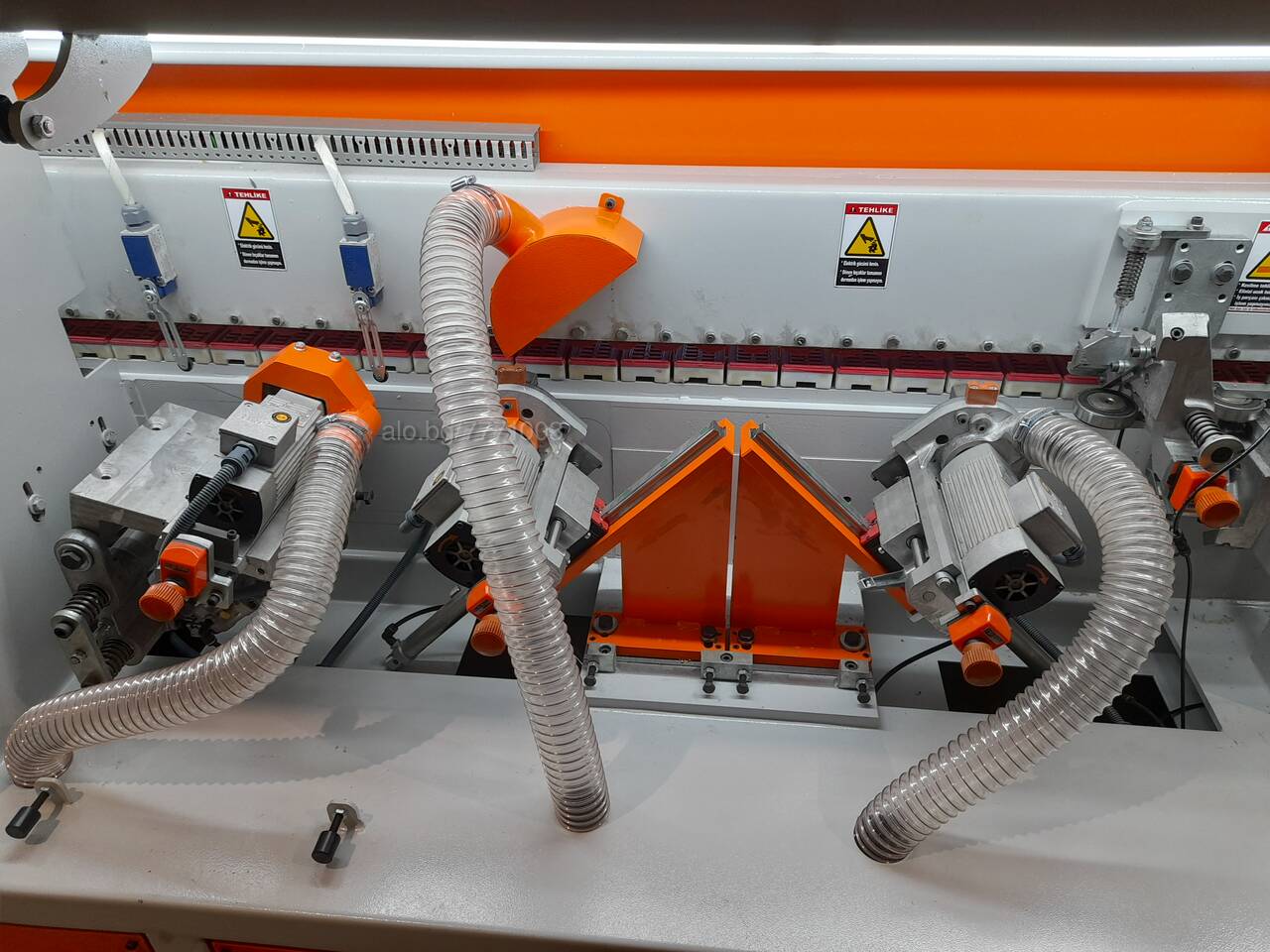

CORNER ROUNDING UNIT MOTOR - 12000 rpm/min

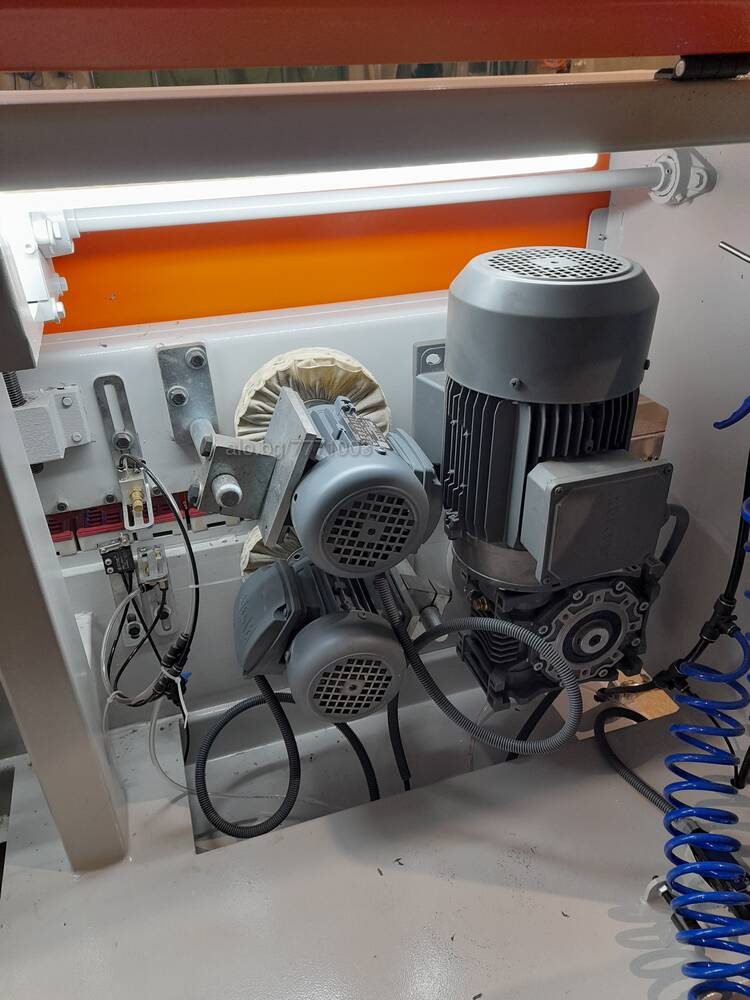

BUFFING ENGINE - 3000 rpm/min

DIMENSIONS

LENGTH 4500 mm
HEIGHT 1500 mm
WIDTH 800 mm

*All our machinery are built according to CE Standard
* Prices are excluding VAT
