OPTICUT 350-4R

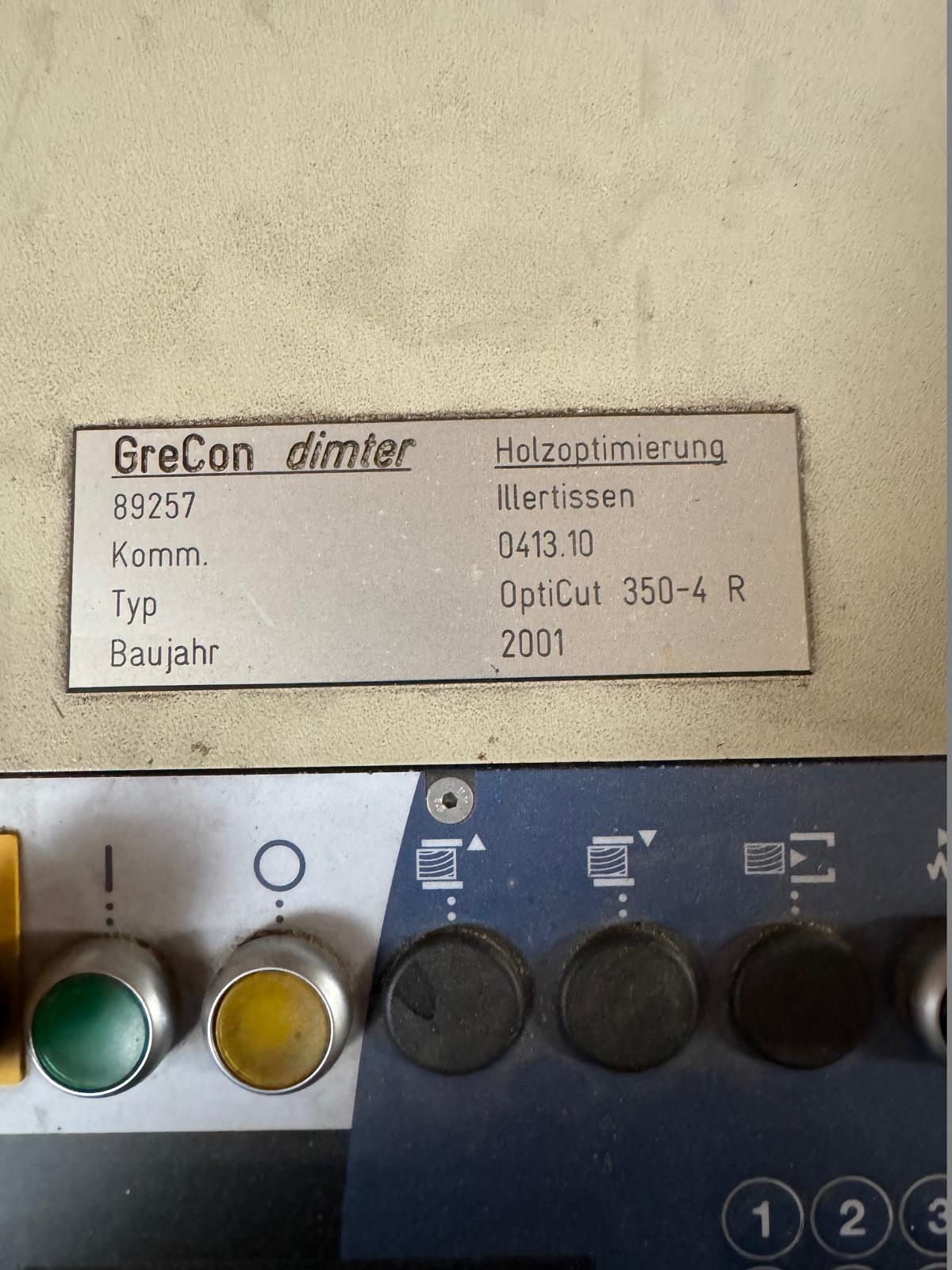

Machine number: 0413.10

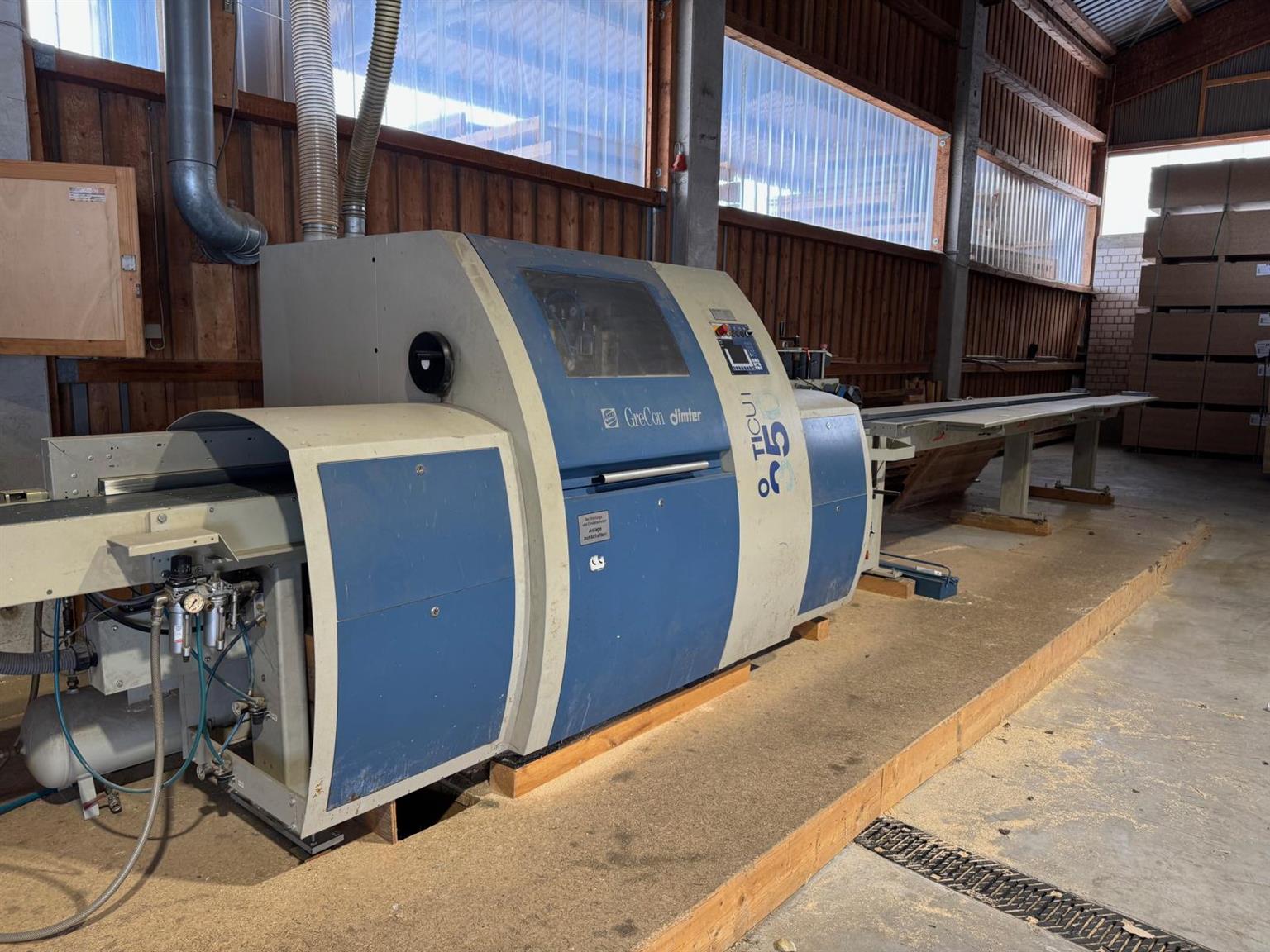

OptiCut 350-4 R


Wood dimensions to be processed: input lengths min/max: 500 - 6500 mm
Full optimization up to max: 1500 mm
input widths min/max: 40 - 300 mm
input thicknesses min/max: 15 - 120 mm
Wood cross-sections max: 300 x 40 mm
max: 200 x 120 mm Fixed lengths after saw
min: 510 -2800 mm
Special application: cutting blocks, length
min/max: 100 - 200 mm (Attention: multiple block length at the end of the board.
Cutting/cutting tolerance +/- 0.8 - 1.5 mm (for wood with minimal resin content and even surface.
Min. tolerance up to 1 m fixed length.
Max. tolerance for longer parts up to 2.5 m +/- 3 mm curvature of the wood in all directions max. 10 mm per meter length Types of wood Soft or hard wood Performance of the system.

Feed speed, continuously variable up to max. 230 m/min.
Per cutting cycle 0.6 - 1 sec.
In order to obtain the practical output per day, activity factor that depends on the customer's production conditions must be taken into account.
Working height of inlet and saw 900 mm
Connection values:
Total electrical connection value approx. 18 kW Operating voltage 380 volts / 50 Hz Voltage fluctuations max. 5% Air consumption approx. 1200 NL/min.
Operating pressure approx. 0 bar
Suction speed approx. 30 m/sec
Mos : 1-390

Price Ex Heidelberg Roos woodworking machinery:

Contact for price
