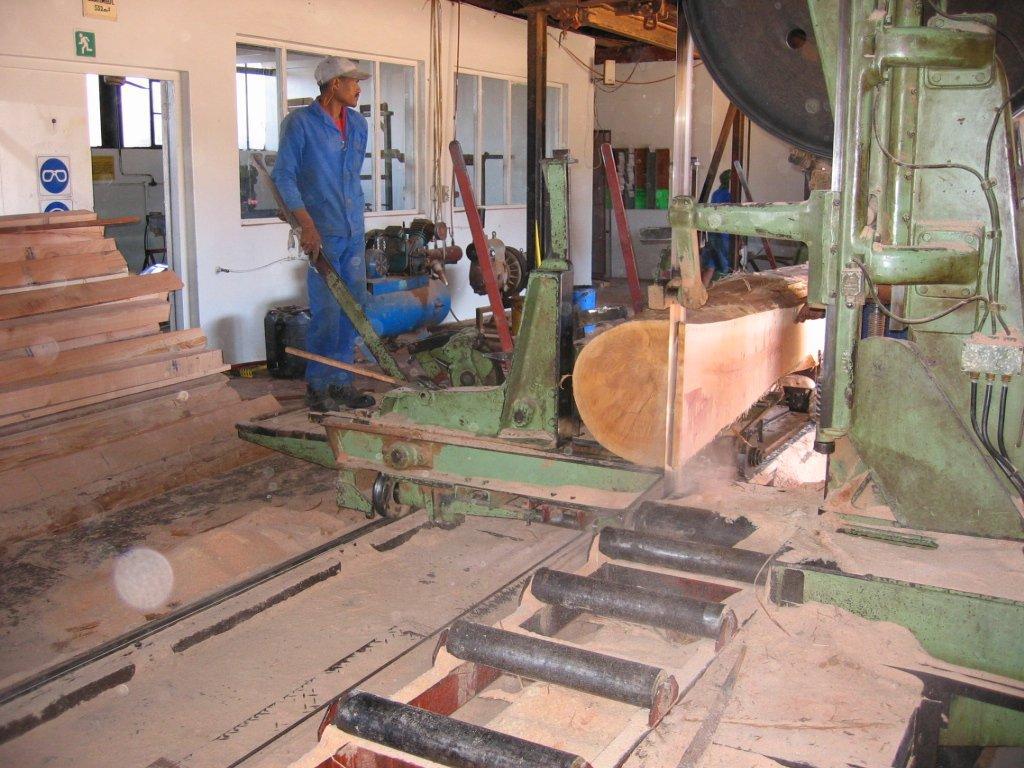

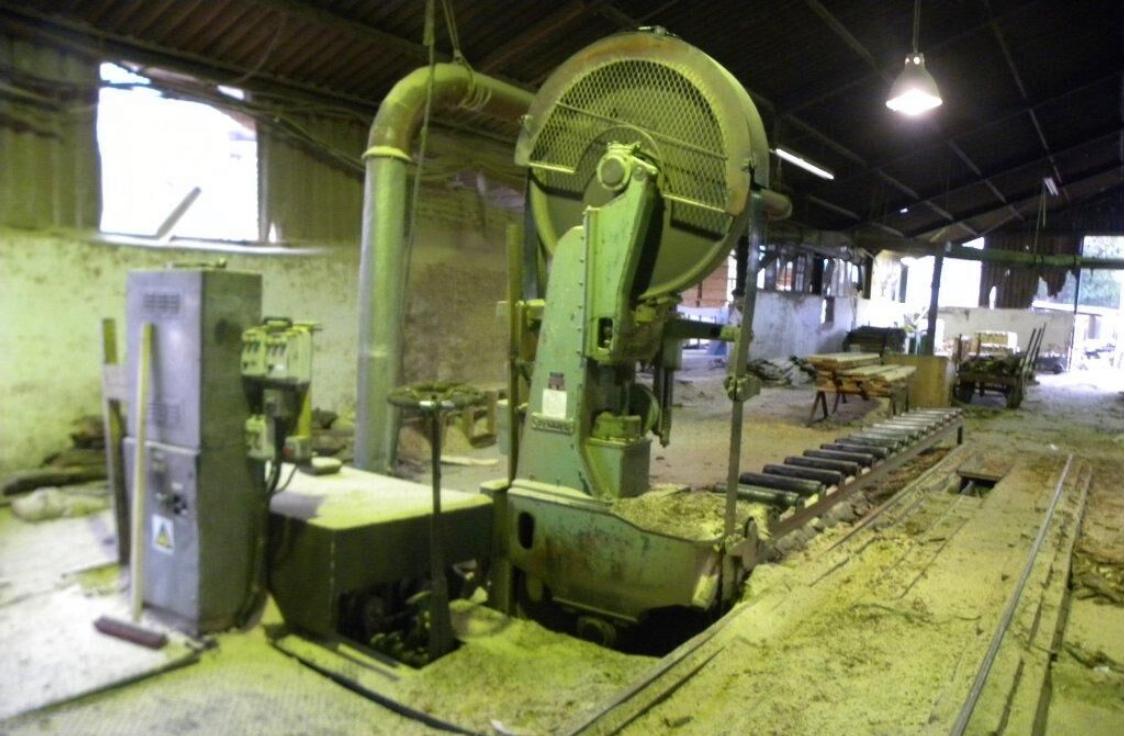

BREAKDOWN SAW STANNER

VERTICAL LOG BANDMILL - BREAKDOWN BANDSAW & CARRIAGE, STENNER, 01220MM BREAKDOWN BANDSAW FOR EXOTIC WOOD MAKE: STENNER;



MADE IN: ENGLAND;

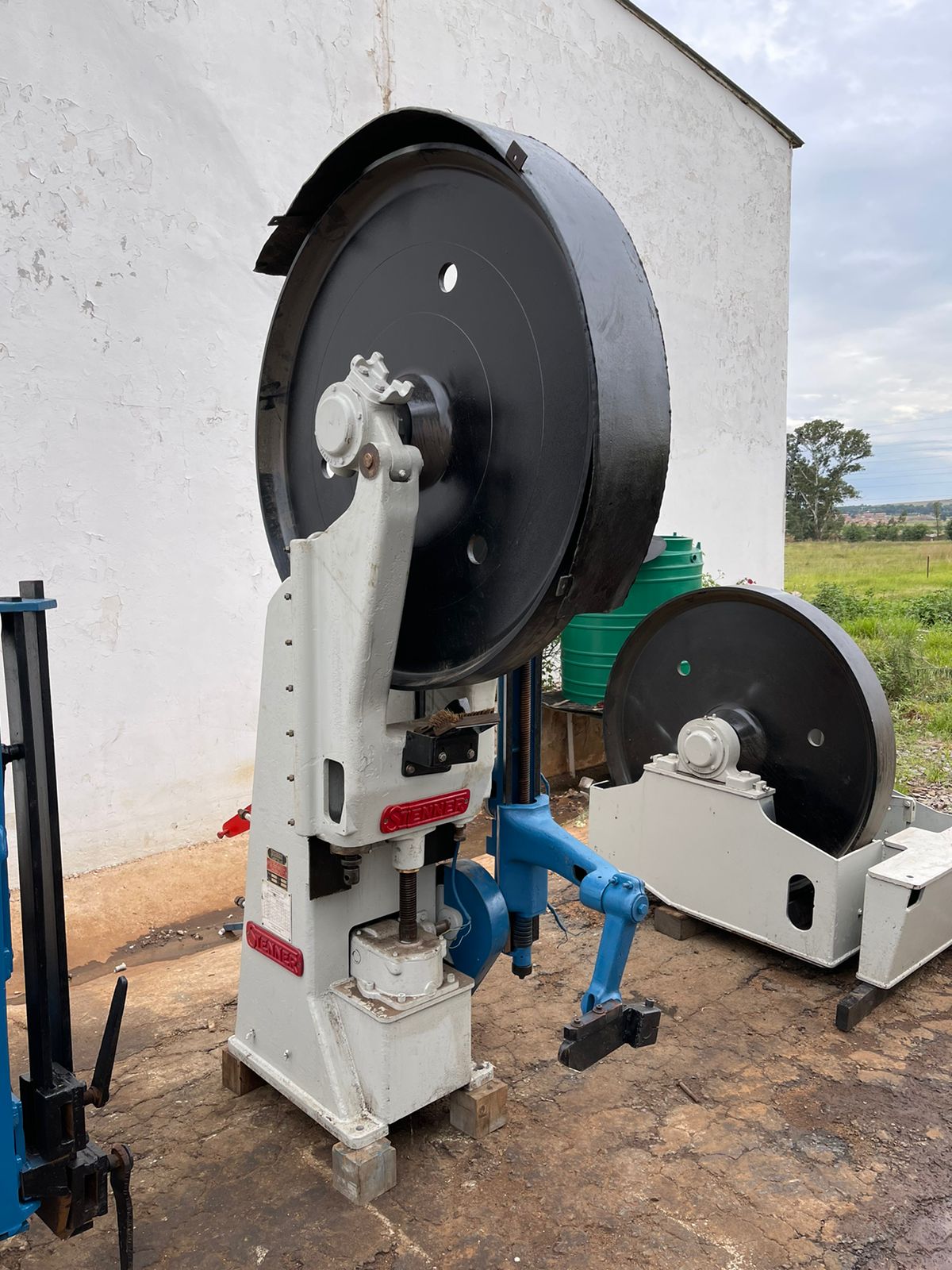

HEAD RIG: TYPE VQ 48 B;
SERIAL NR: Q3961;

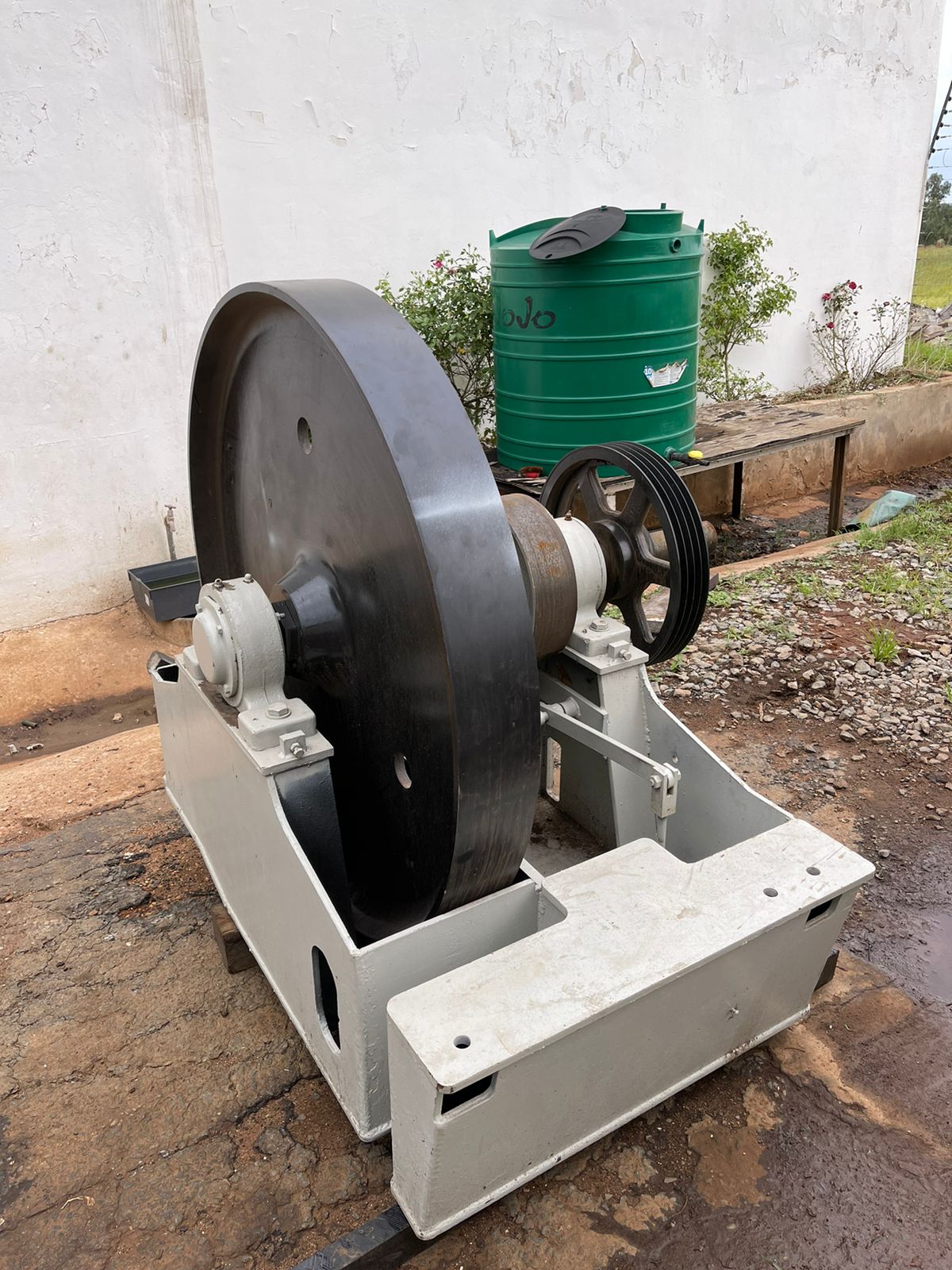

WHEEL SIZE, HEAD RIG: 48" = 0-1220 X 150 MM;
MODEL: RIGHT HAND MILL, PIT FITTED;
SAW BLADE WIDTH: 6" = 152 MM;
HEIGHT OF CUT UNDER SAW GUIDE: MAX. 1118 MM;
LOG DIAMETER: MAX. 965 MM;
LOG SAWN THROUGH CENTRE: MAX. 0-990 MM;
SQUIRE BLOCK, SAWN IN MIDDLE: MAX. 864 MM;

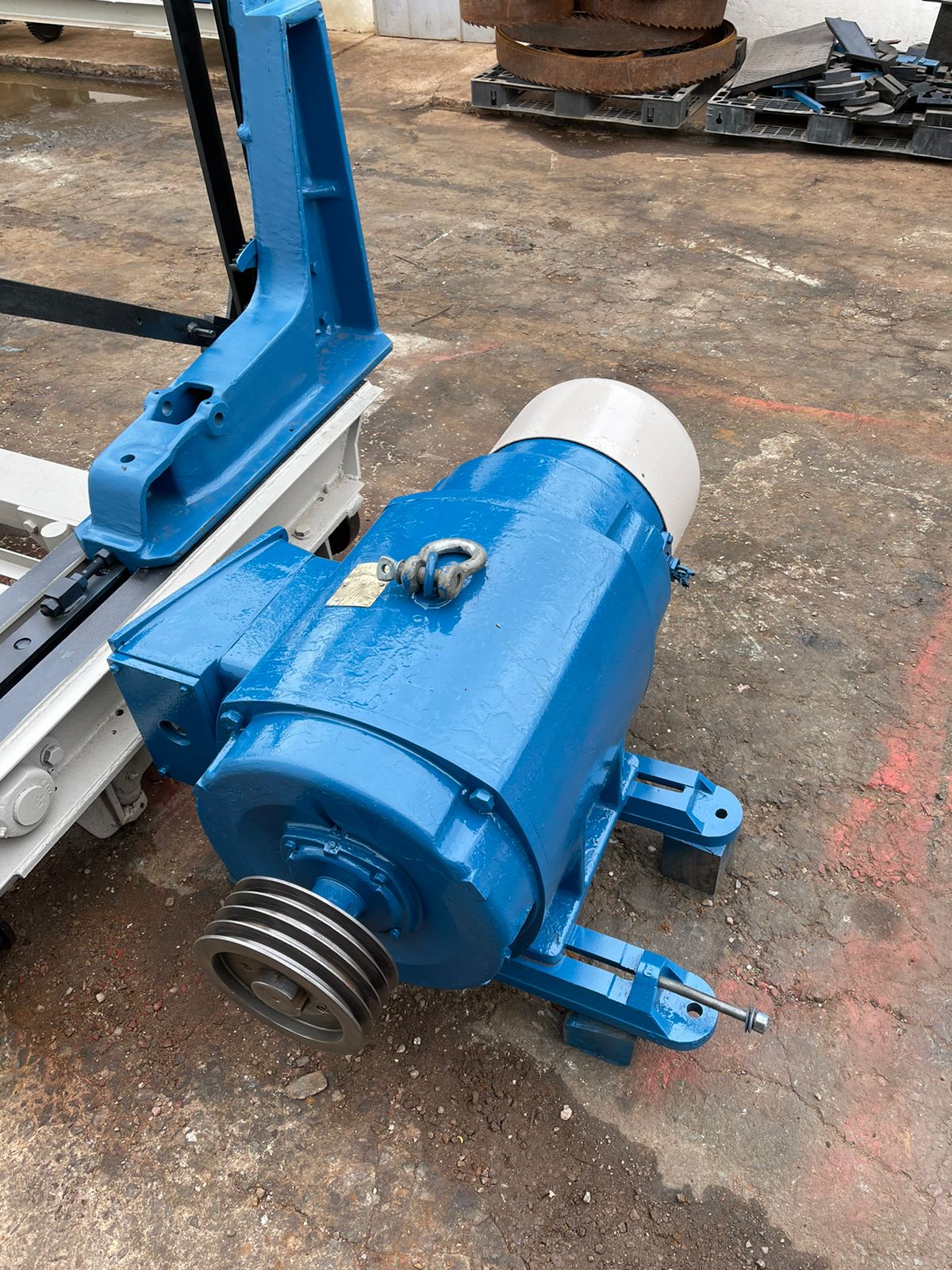

ELECTRIC MOTOR: 380 VOLT, 40,75 KW = 53 HP, 1440 RPM, AC-SLIP-RING;
REQUIRED MOTOR: 30 - 45 KW;

SAW PULLEY FOR MODEL: VQ 48: 635 RPM RUNNING SPEED SAW BLADE: 40 METER / SEC;
HEIGHT ADJUSTMENT ARM: ELECTRIC;
BAND SAW BLADE STRAINING: ELECTRIC WITH WEIGHTS;
LEVERAGE AT END OF LEVER: 48:1;
BANDSAW BLADE SIZE: 8.229 - 7.975 MM X 152 MM;
BANDSAW BLADE THICKNESS: 17 GAUGE B.W.G = 1.473 MM;

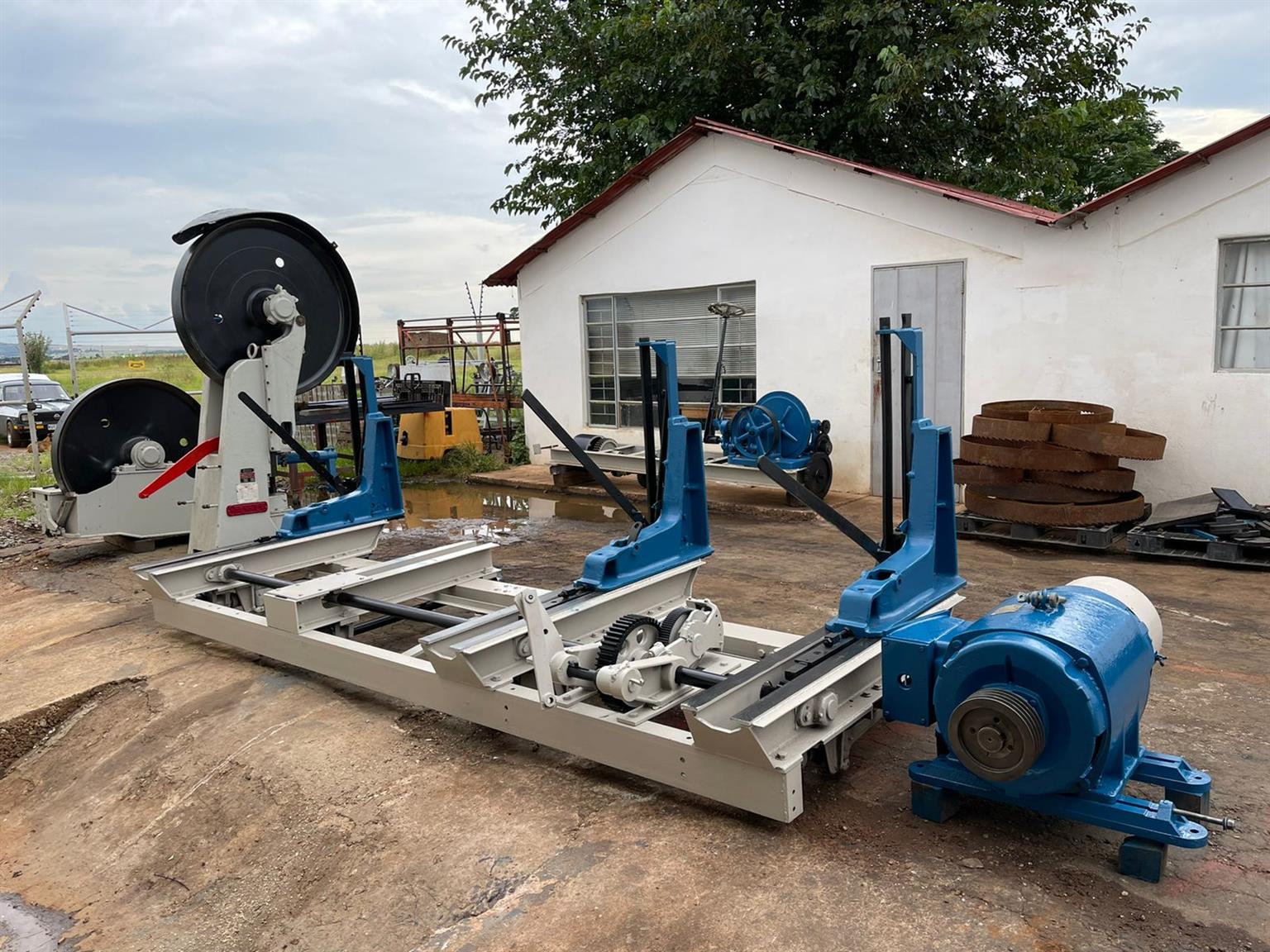

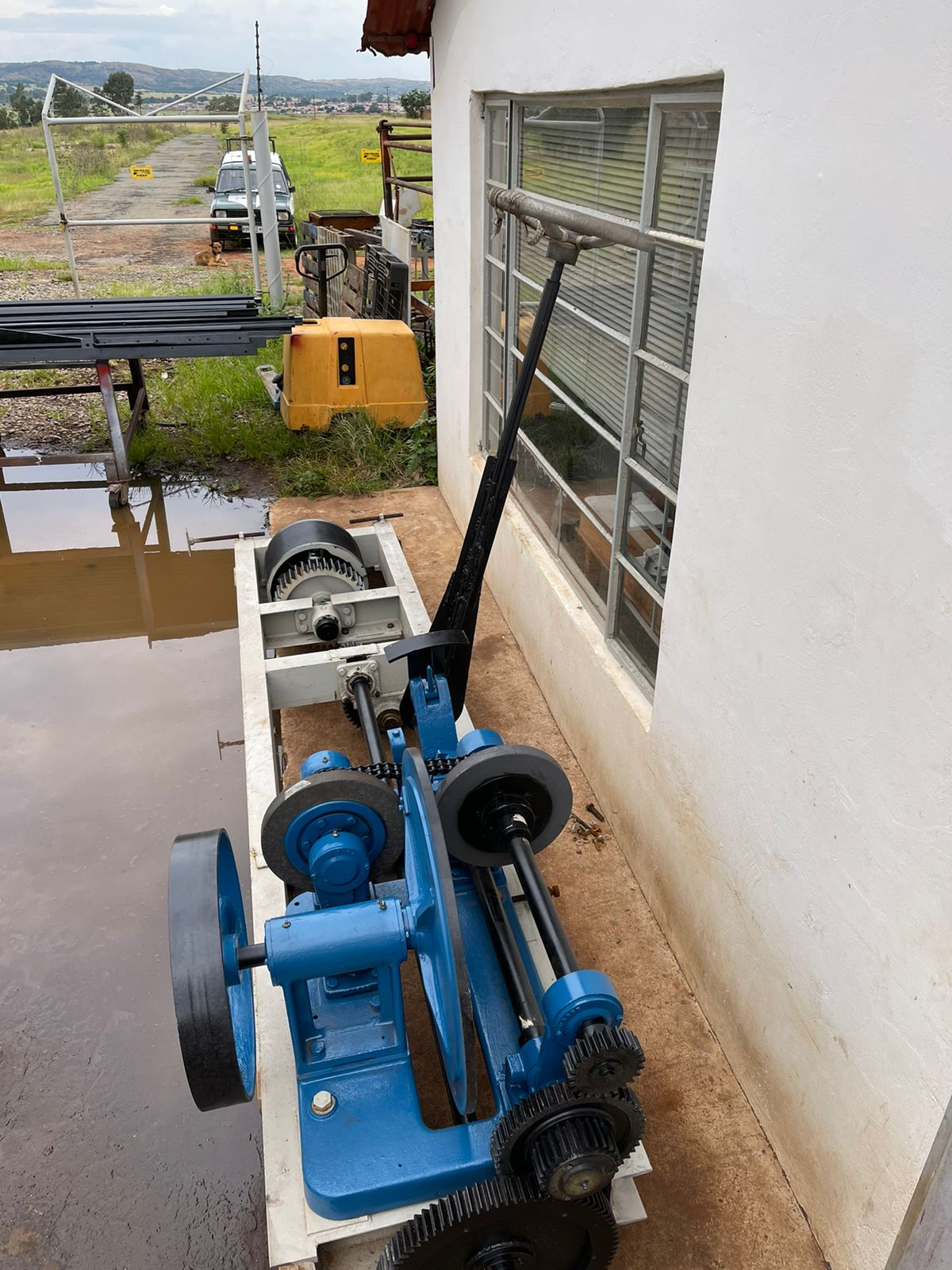

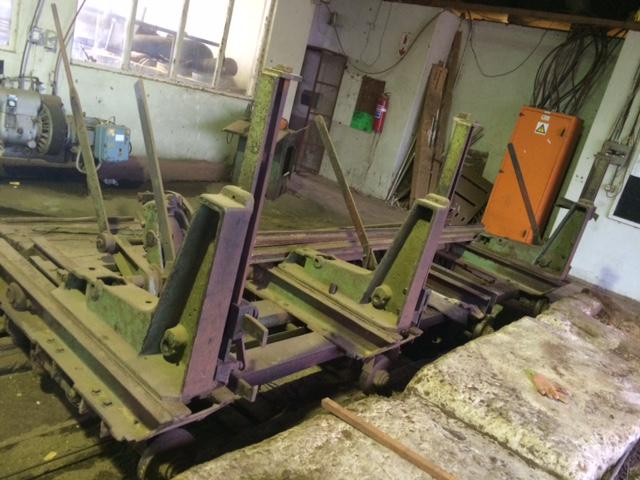

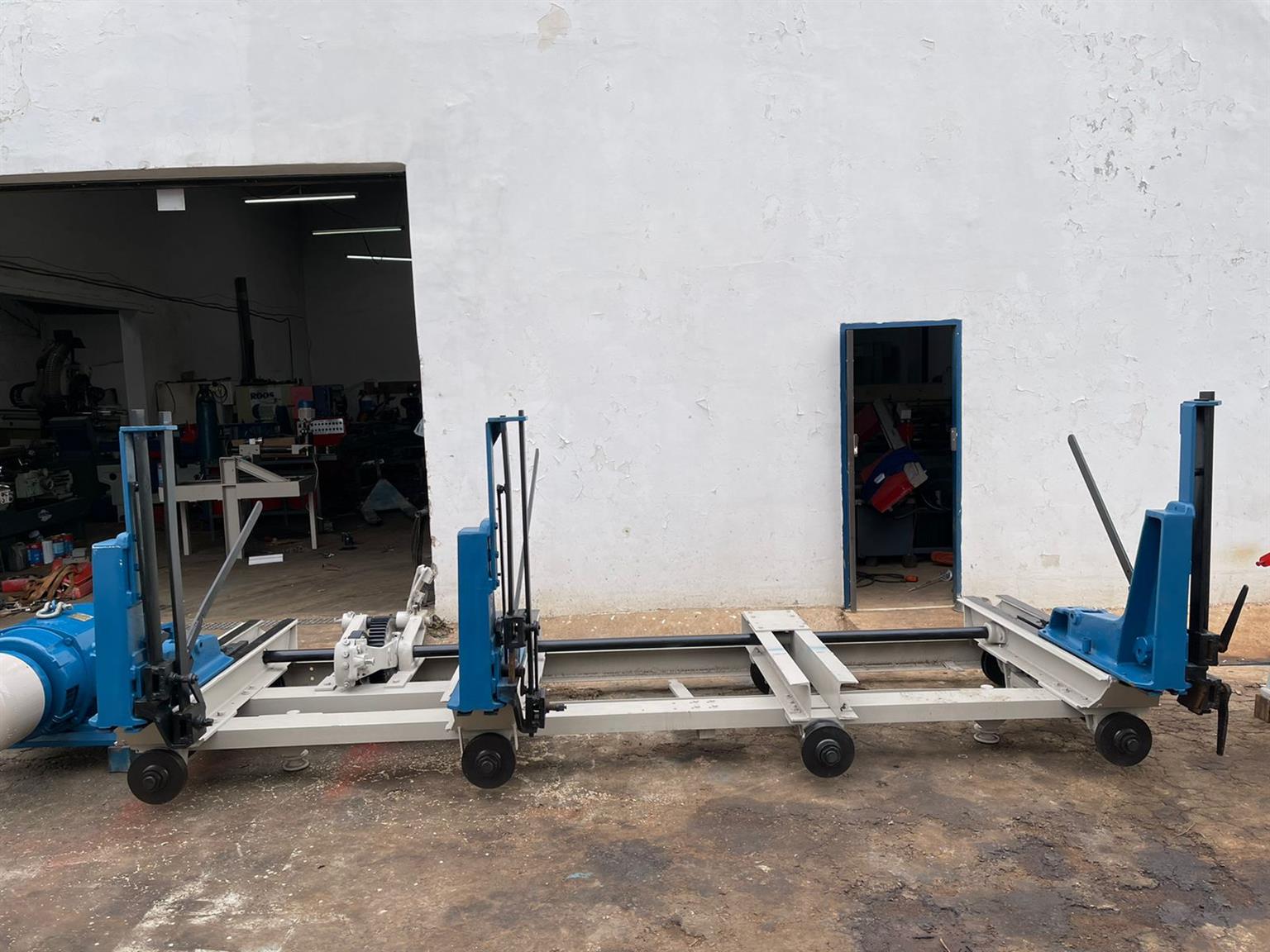

LOG CARRIAGE.
MAKE: STENNER;
MODEL: VL-34, (864 MM);

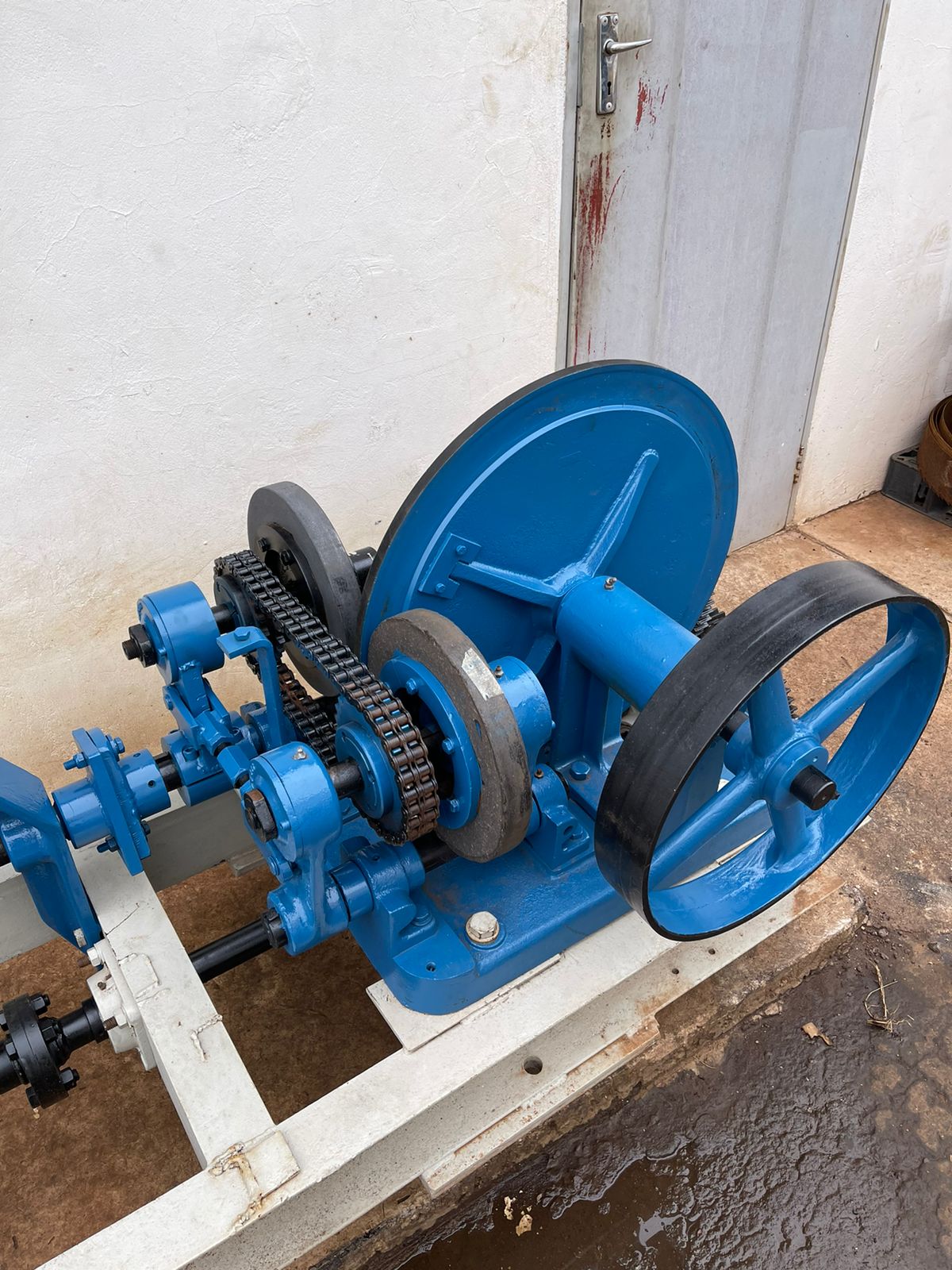

LOG CARRIAGE: 6.100 MM CAPACITY, WIRE ROPE - WINCH DRIVEN;
HEAD BLOCKS: 3 X DUPLEX DOGS;
CARRIAGE TABLE: 4.000 X 1.460 X 430 MM, H;
DISTANCE BETWEEN HEAD BLOCKS: 1220 + 2440 MM;

HEAD BLOCKS CLAMPING: MANUAL;
LOG DIAMETER: MAX. 965 MM;
SQUIRE LOG: MAX. 838 MM;
OPENING HEAD BLOCKS: MAX. 864 MM;
SET WORKS: HAND OPERATED DEPTH OF CUT ADJUSTMENT, REPEAT STOPS;
SET SHAFT: 57 MM;
SAFETY ON RETURN: CARRIAGE MOVES AWAY FROM SAW BLADE;
LOG CARRIAGE WORKING HEIGHT: 483 MM;
SPEED: VARIABLE SPEED IN BOTH DIRECTIONS, QUICK RETURN;
VARIABLE CUTTING SPEED: 15 FT. / MIN = 4,5 M / MIN;
VARIABLE RETURN SPEED: 45 FT. / MIN = 13,7 M / MIN;
FEEDER MOTOR: 4 KW, 1440 RPM, 9.1 AMP;

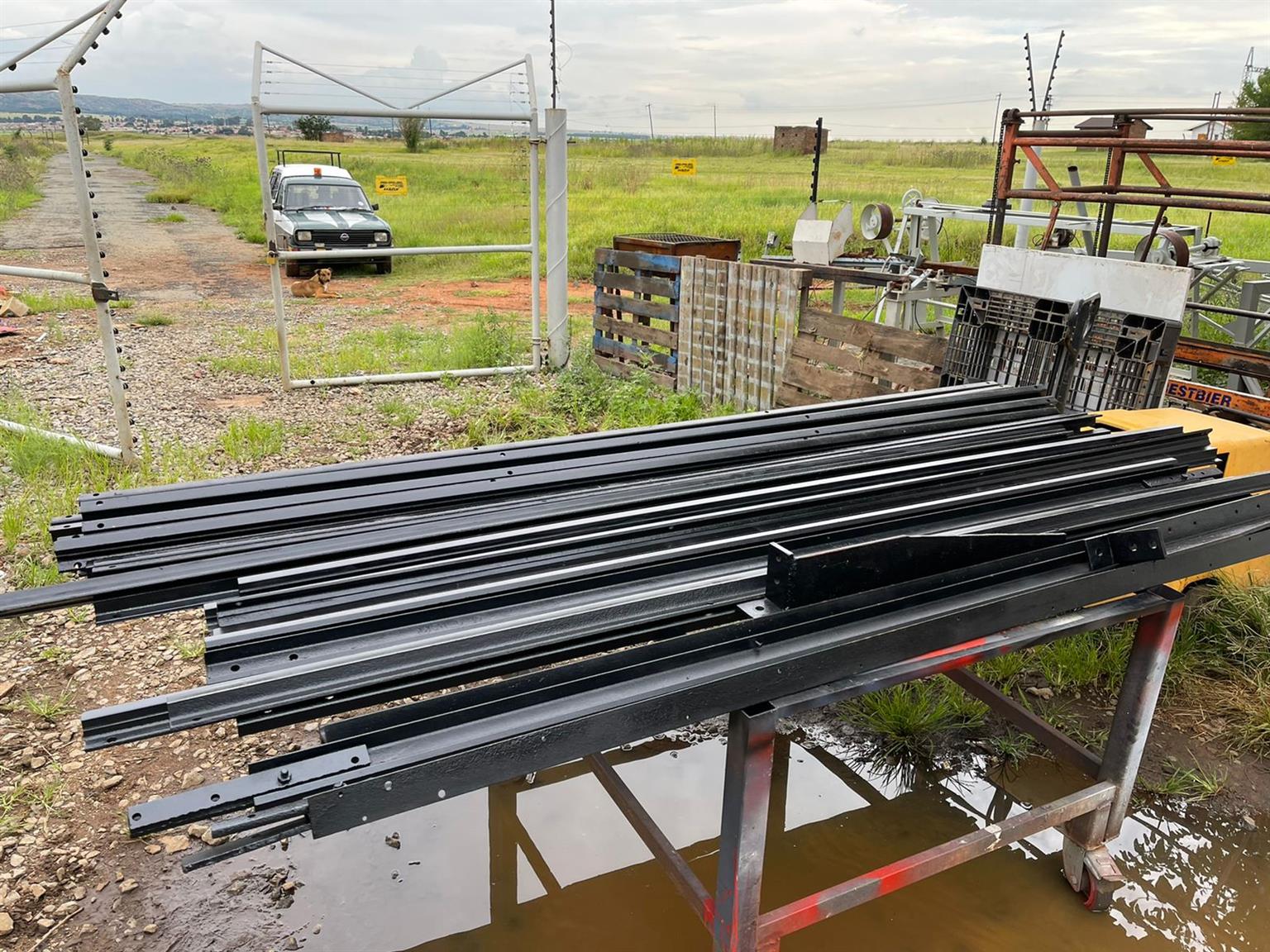

LENGTH OF RAILS: 2 X 16 METER + EXTRA; (TOTAL 2 X 20 METER);
INCLUSIVE: OUTFEED ROLLER CONVEYOR, 6.500 X 500 MM, 16 ROLLERS;

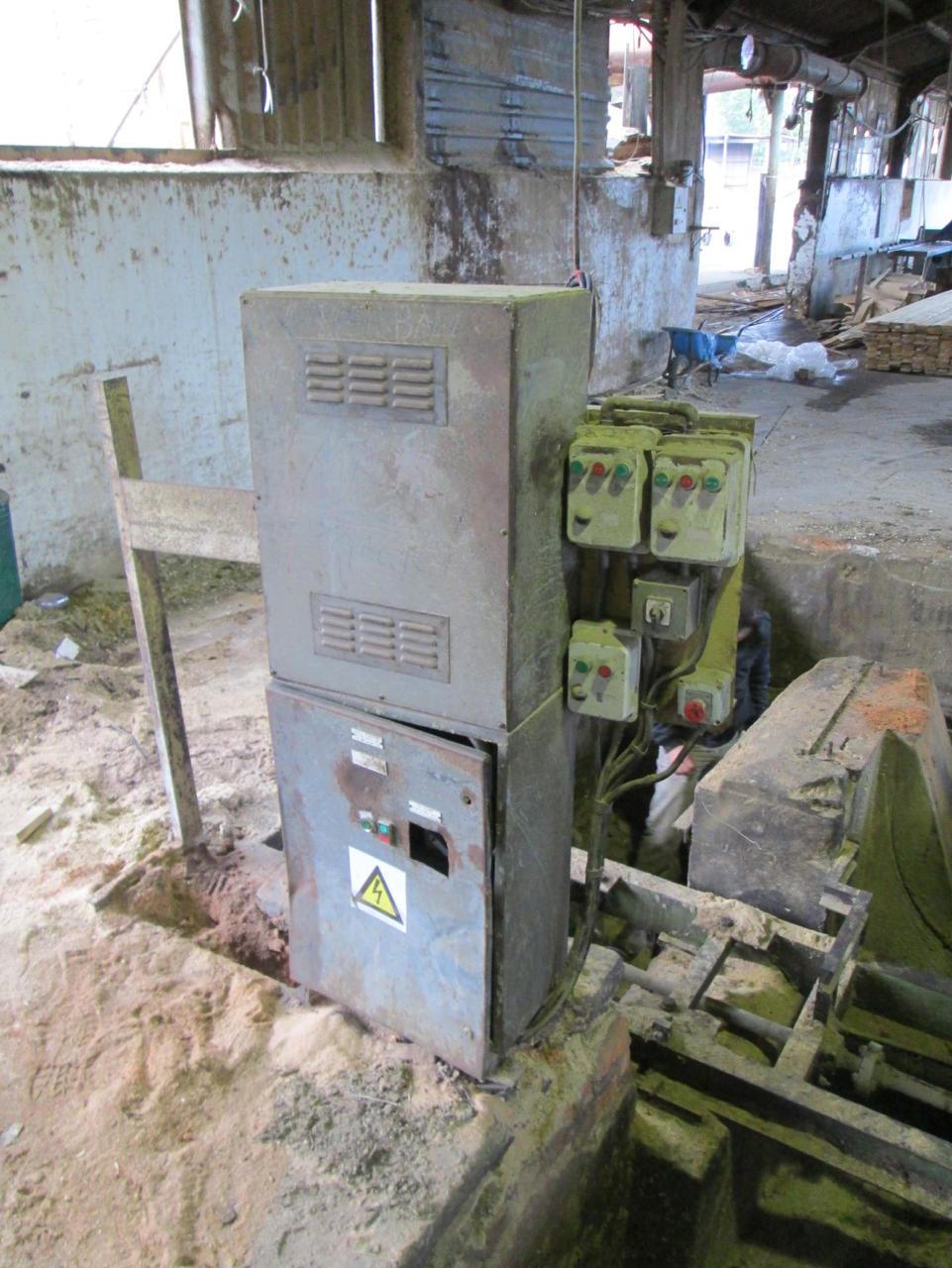

INCLUDED: ALL ELECTRIC STARTERS AND CABLE;

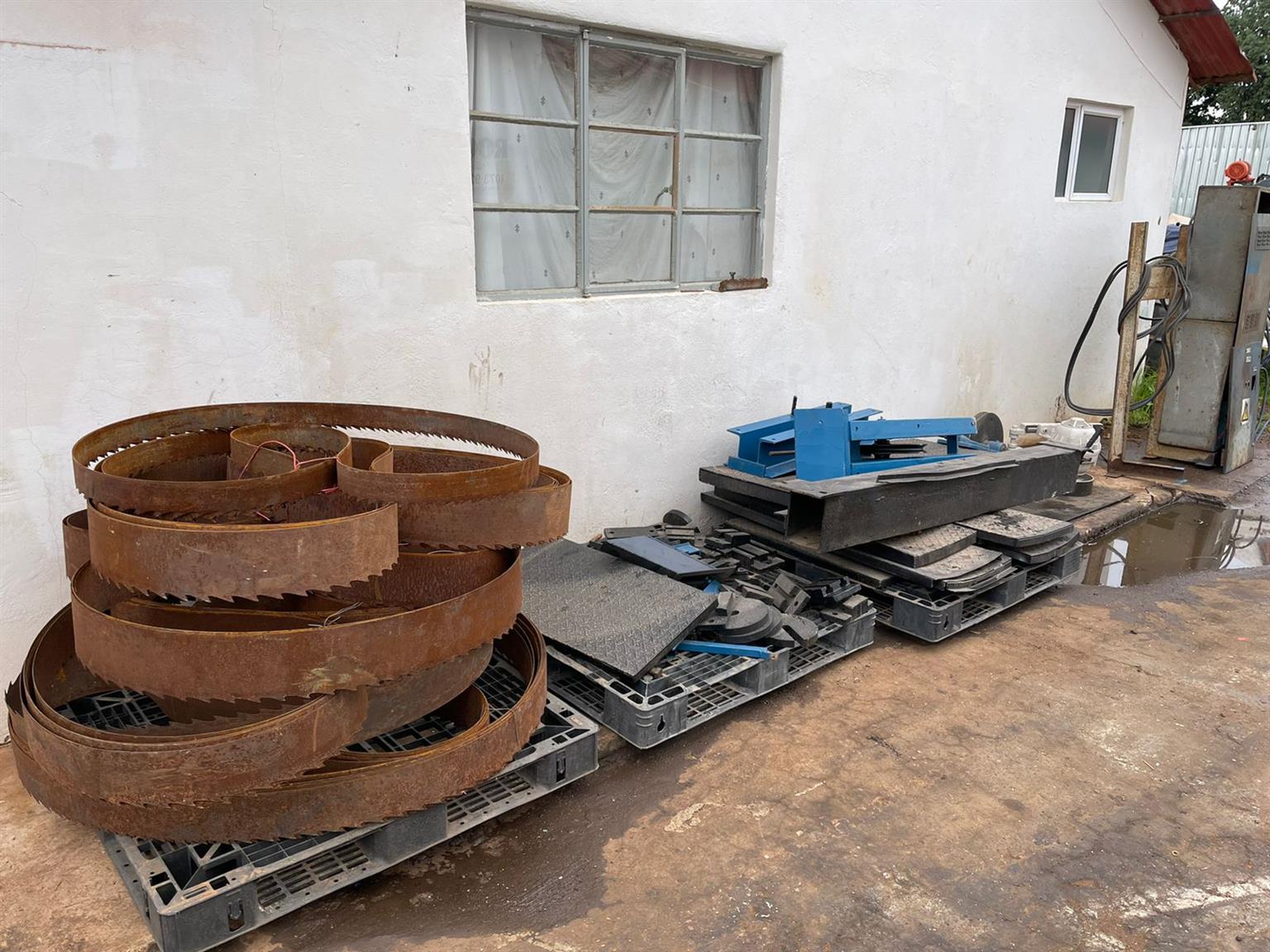

INCLUSIVE: 18 PC, 6" BANDSAW BLADES;
INCLUSIVE: FULL FOUNDATION PLAN;
CONDITION: DISMANTLED IN PERFECT RUNNING ORDER
TOTAL WEIGHT: CA. 7.000 KG;

PRICE R285000-00
