4 HEAD MOULDER

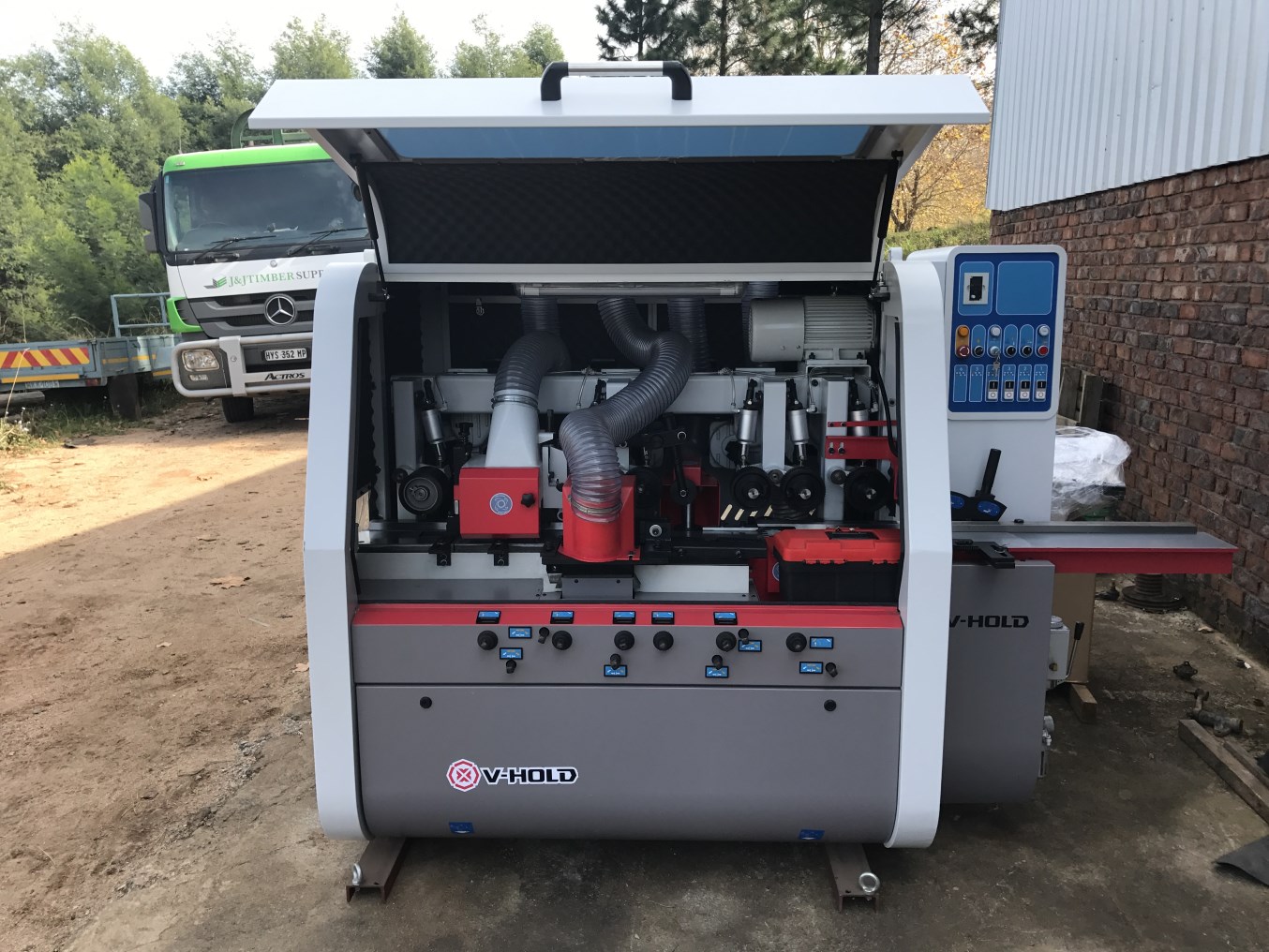

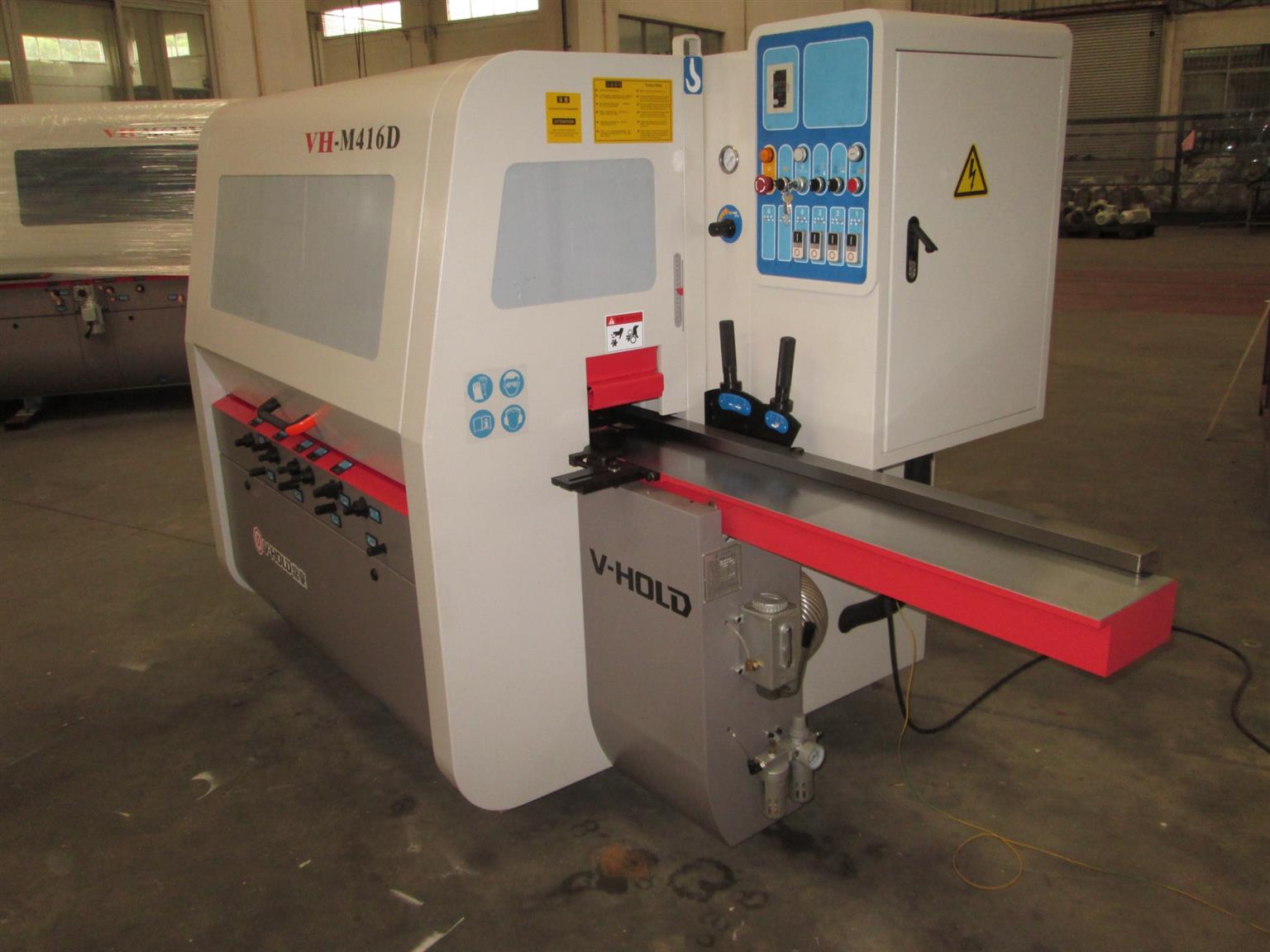

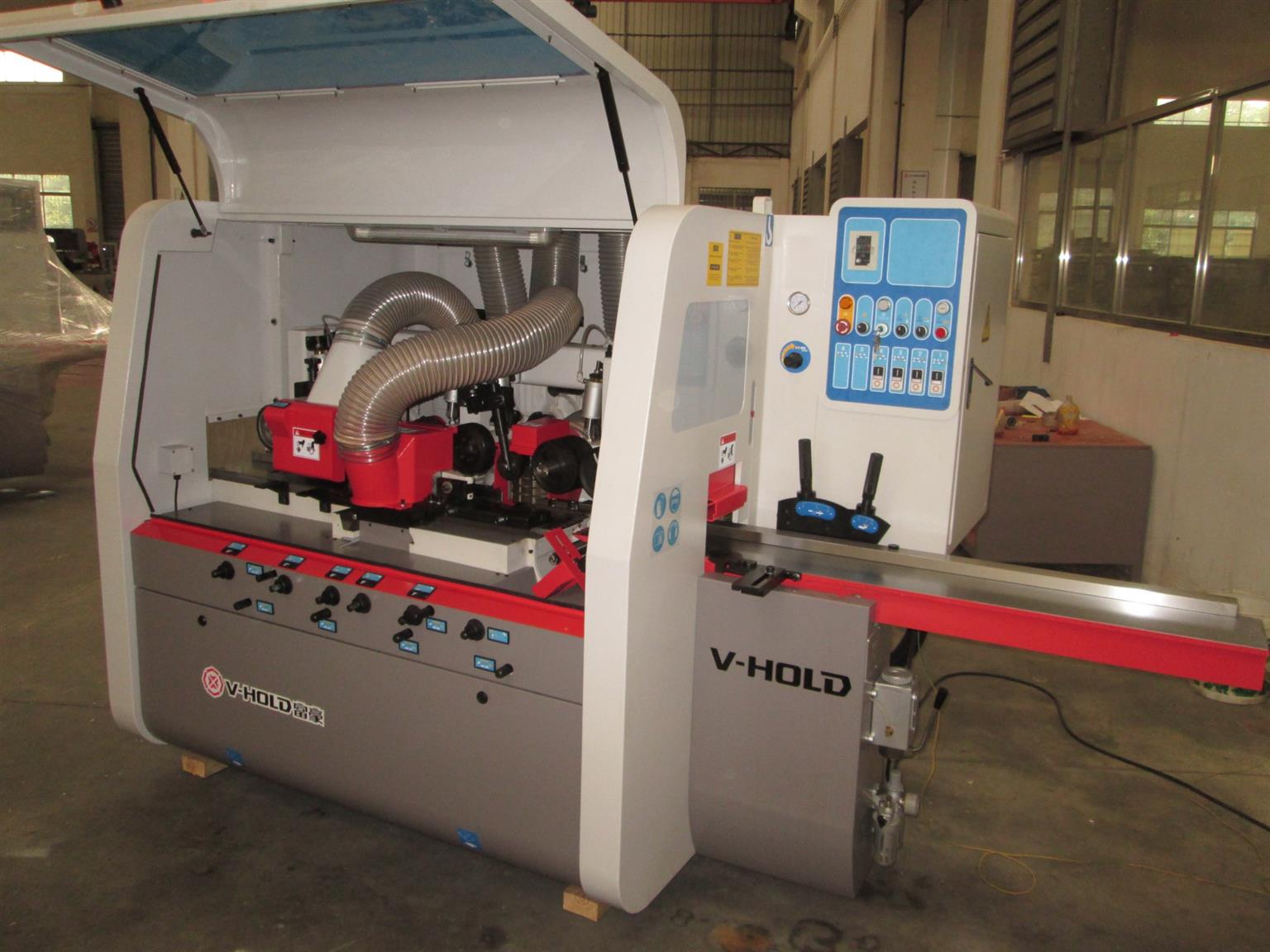

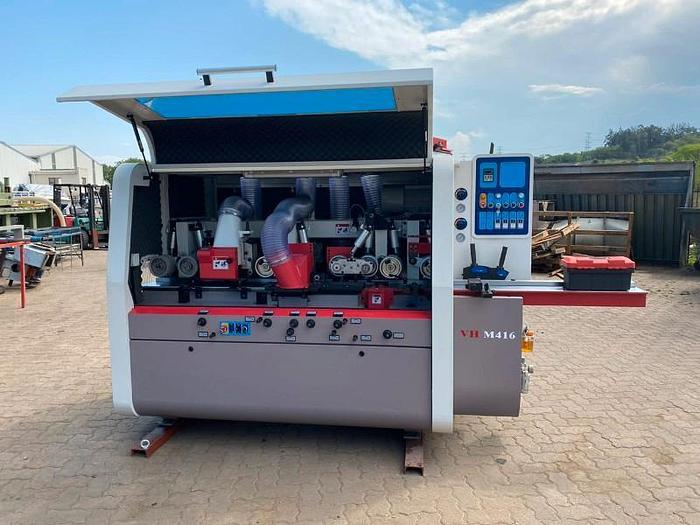

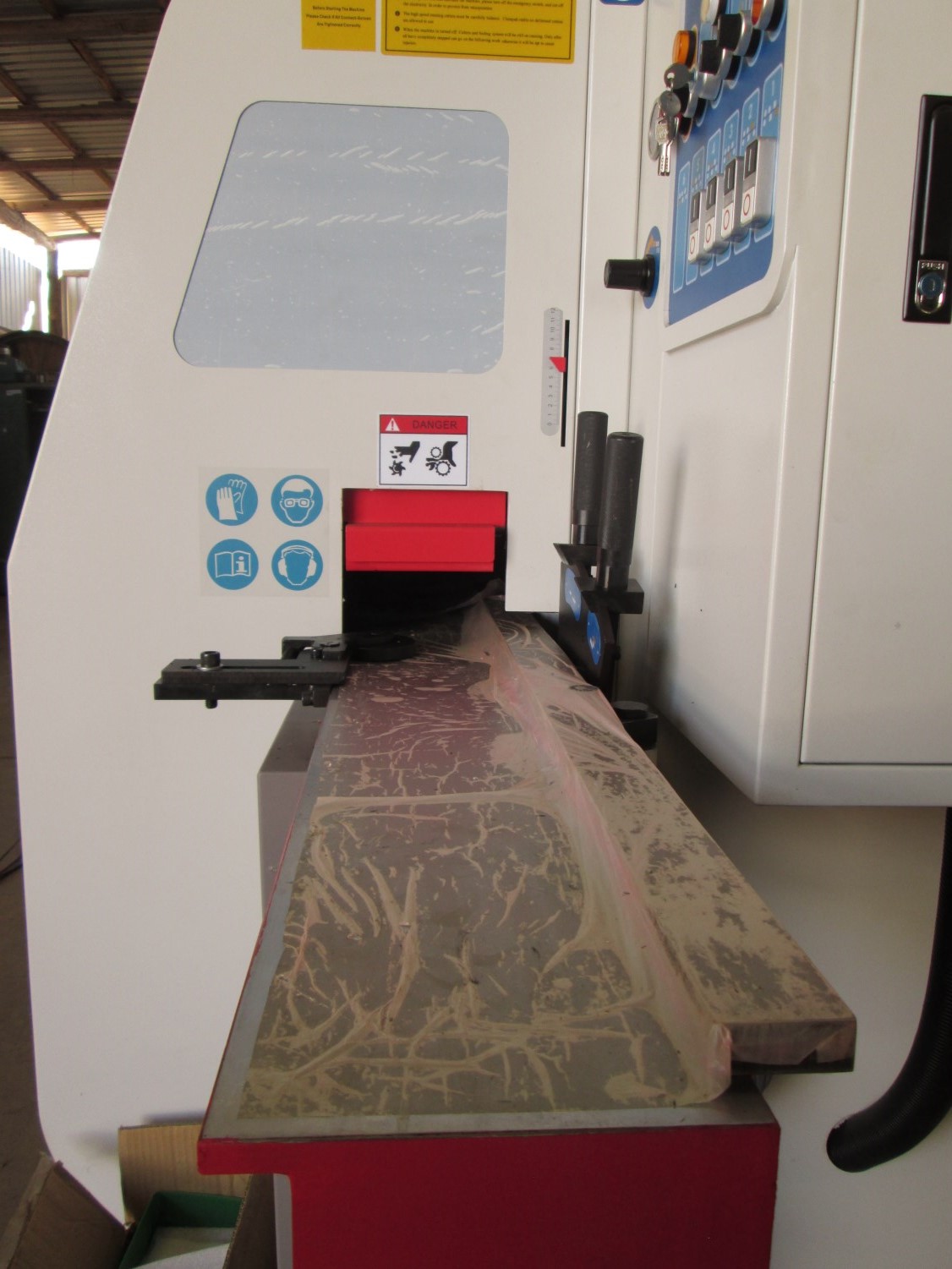

Moulder, V-HOLD, VH-M416, 4-head, 160mm

V-HOLD, moulder, 4-head, 160 mm
Make: V-HOLD
Model: VH-M416
Condition NEW

Working width: 25-160 mm
Working thickness: 8-100 mm
Length of straightening table: 1155 mm
Straightening table: Hard Chromed, wear resistant
Easy feeding: steel bottom table rollers
Table oil lubrication: lubrication pump, manual
Spindle shaft size: Ø-40 mm
Spindle shaft speed: 6000 rpm

Independent electric motors

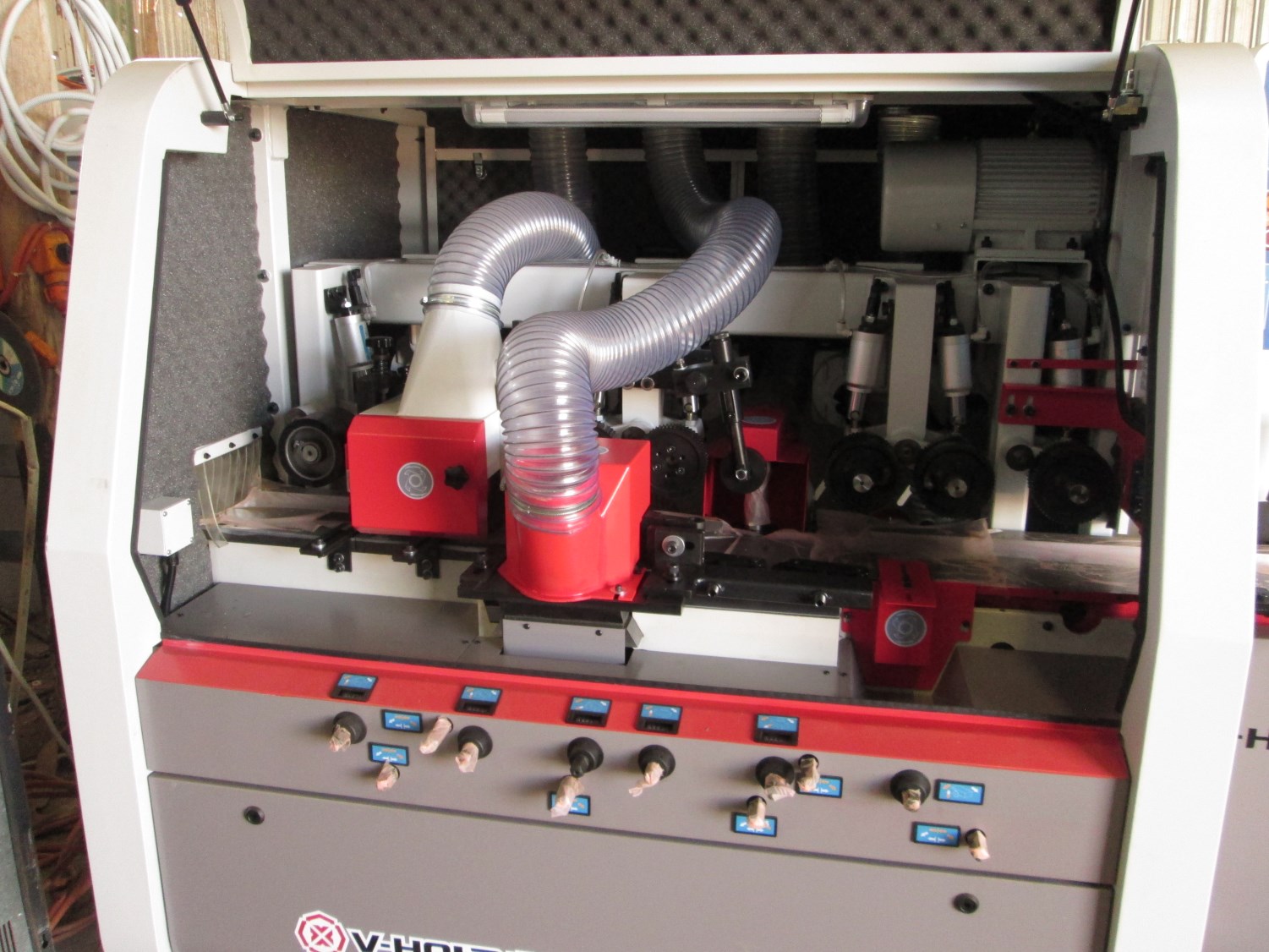

- 1st Shaft: bottom, horizontal, 4 kW
- 2nd Shaft: right, vertical, 3 kW
- 3rd Shaft: left, vertical, 3 kW
- 4th Shaft: top, horizontal, 4 kW

Rise & Fall motor: 0.37 kW
Feeder motor: 2.2 kW
Variable feed speed: 0 – 22 m / min, by Frequency Inverter
Electrical connection: 16.57 kW

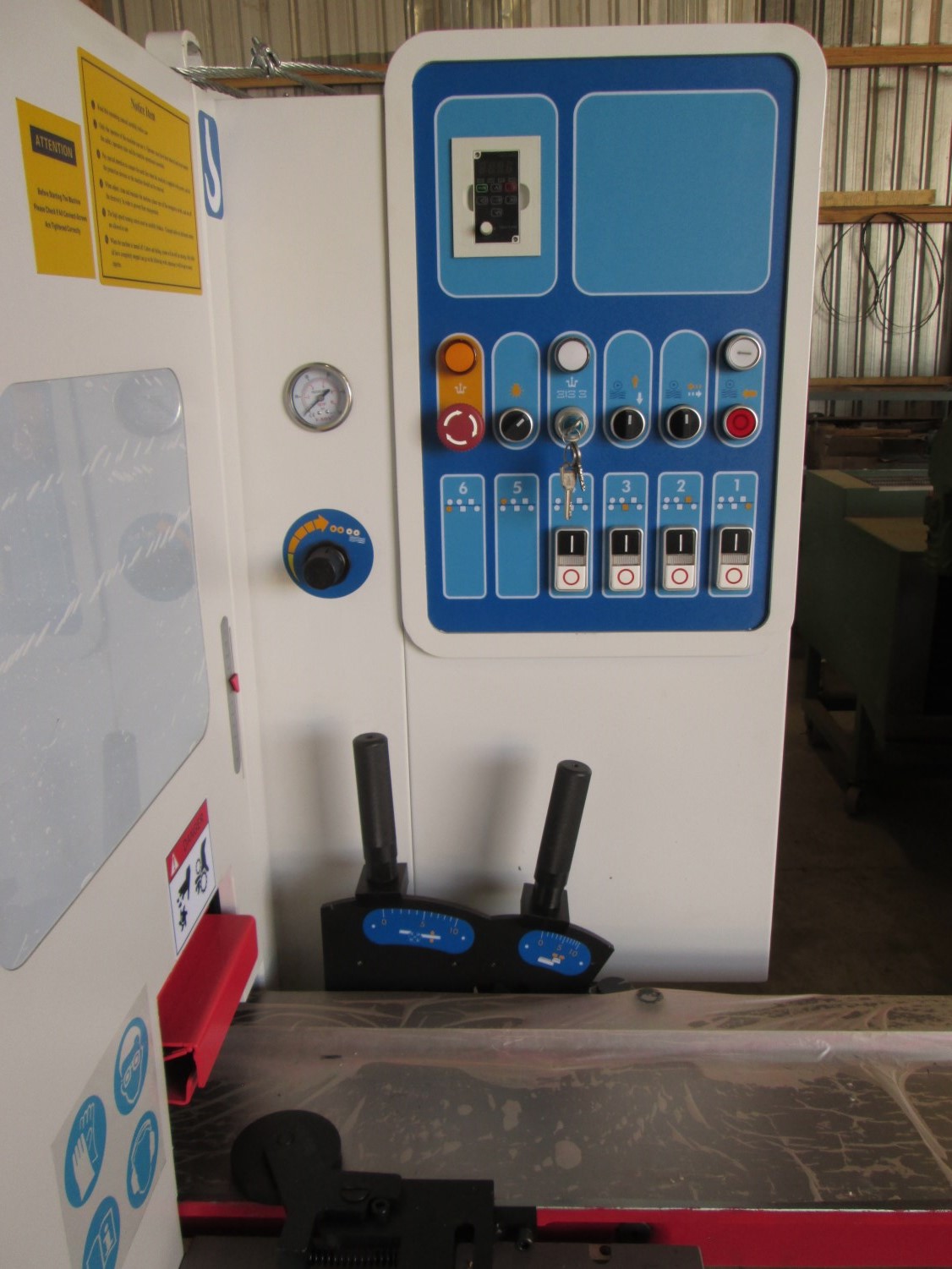

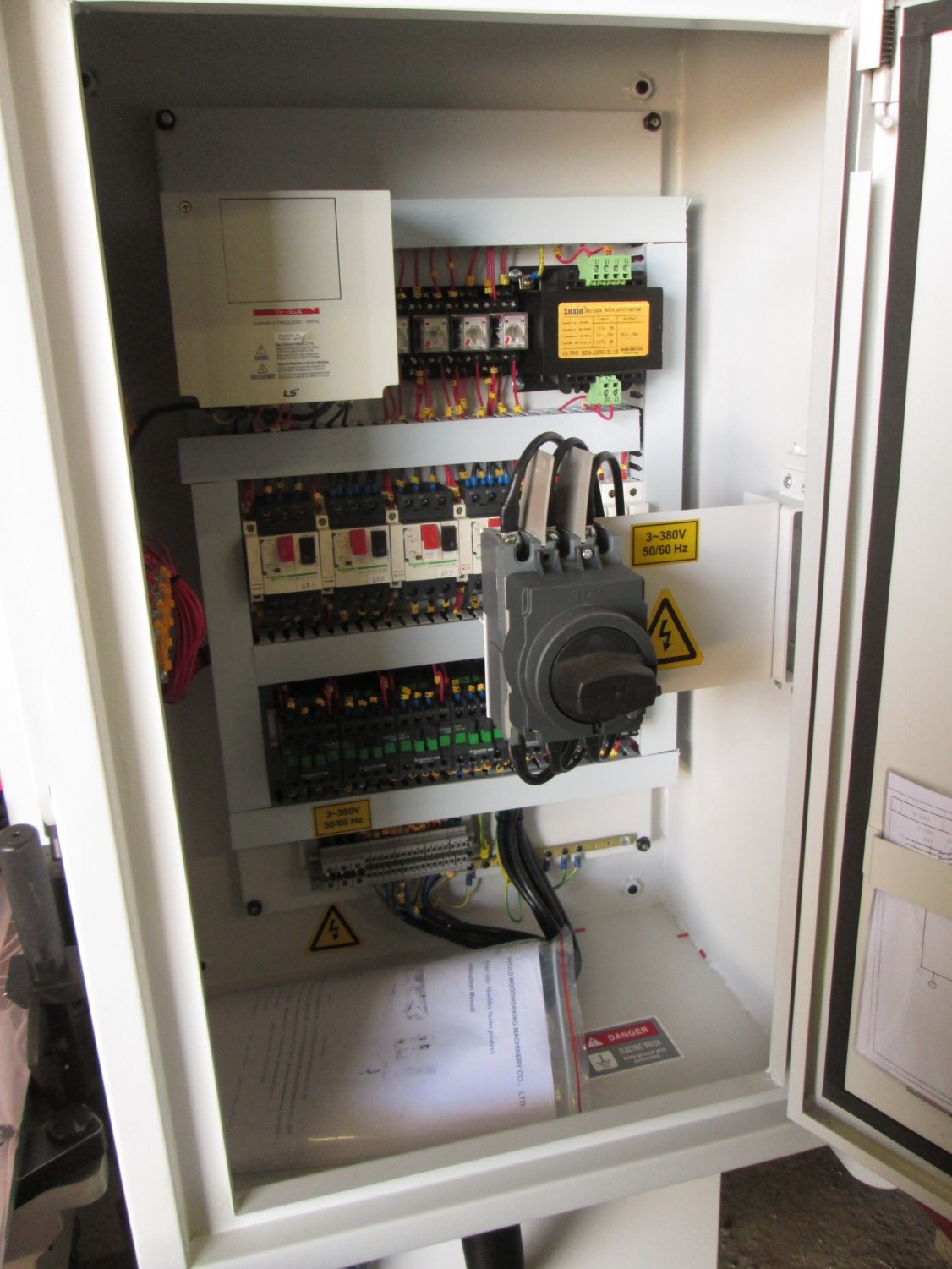

Electrical switches: German brand (SCHNEIDER), with overload protection

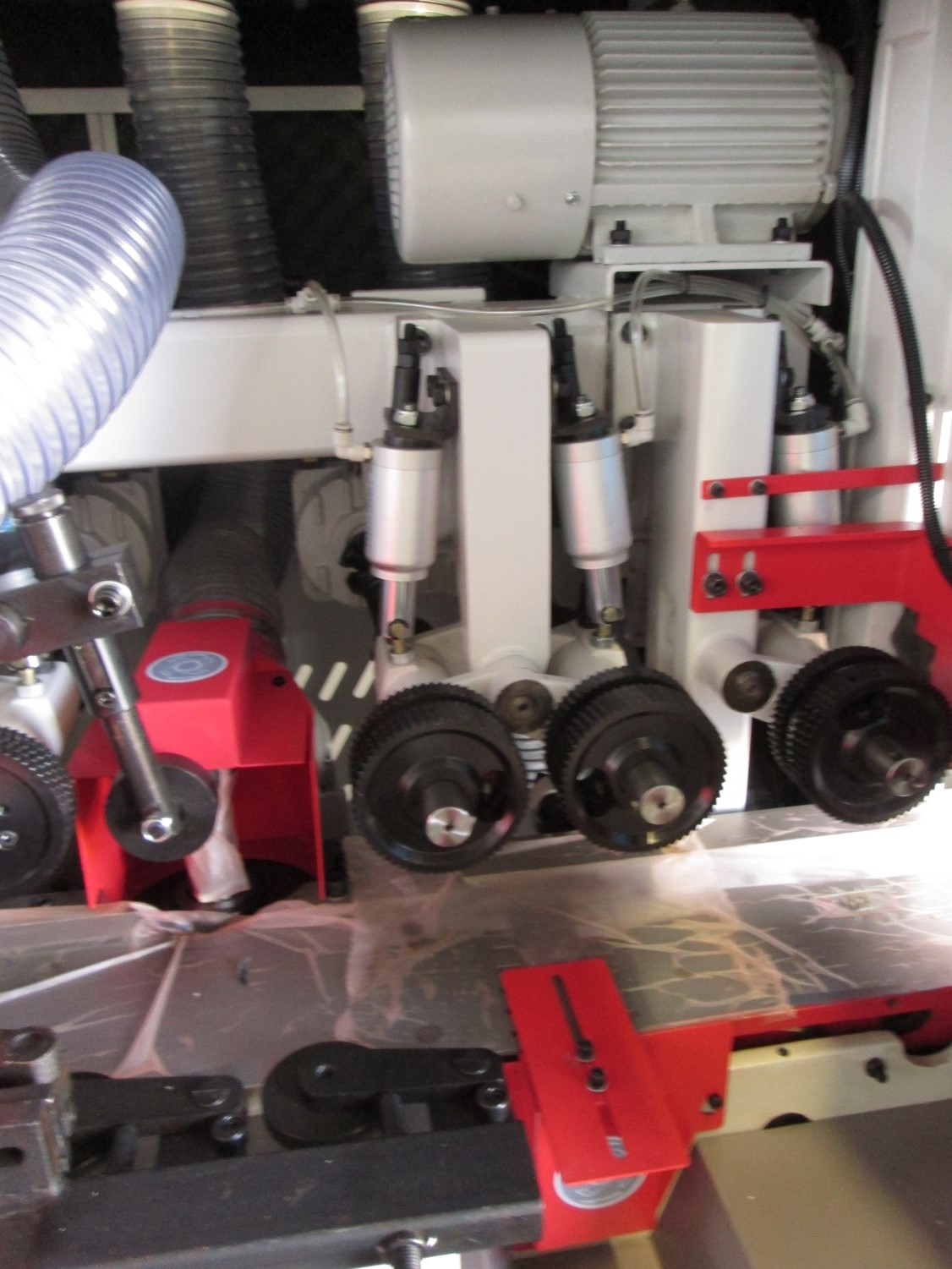

Pneumatic pressure on feed rollers: hold-down air cylinders
Feed roller pressure: adjustable, to unblock wood pieces / different thickness
Pneumatic Pressure: 6 Bar / 0.6 Mpa, service unit
Protection: complete safety hood, sound reducing

Overall dimensions 2.650 x 1.250 x 1.700 mm H
Weight: 1.950 kg
E.&O.E.

Including: 4 x standard straight planer blocks
Guarantee: 12 months after date of delivery


We are the Sole Agent for V-HOLD, Moulders, for Southern Africa


CONTACT FOR PRICE
