Alternator Starter Test Bench: Various Models

For over two decades, we have provided the industry with innovative, high-quality products and support, all locally manufactured. Explore a broader selection of our offerings on the Terastra website.

Various Models:
1. Alternator Test Bench / Fixed Speed.
2. Alternator and Starter Test Bench / Fixed Speed.
3. Alternator and Starter Test Bench / Variable Speed.
4. Alternator and Starter Test Bench / Variable Speed with Printer.
5. Custom Models Available Upon Request!

The ALTERNATOR TEST BENCH enables the auto-electrician to accurately test the alternator off-vehicle, under load, and at speed. Bearing/mechanical noise can also be assessed. Alternator volts and amps are displayed on a digital voltmeter and ammeter. The load is variable and can be switched off.

Additionally, there are two independent testers for testing the voltage regulator and the rectifier module. Please refer to the attached specification.

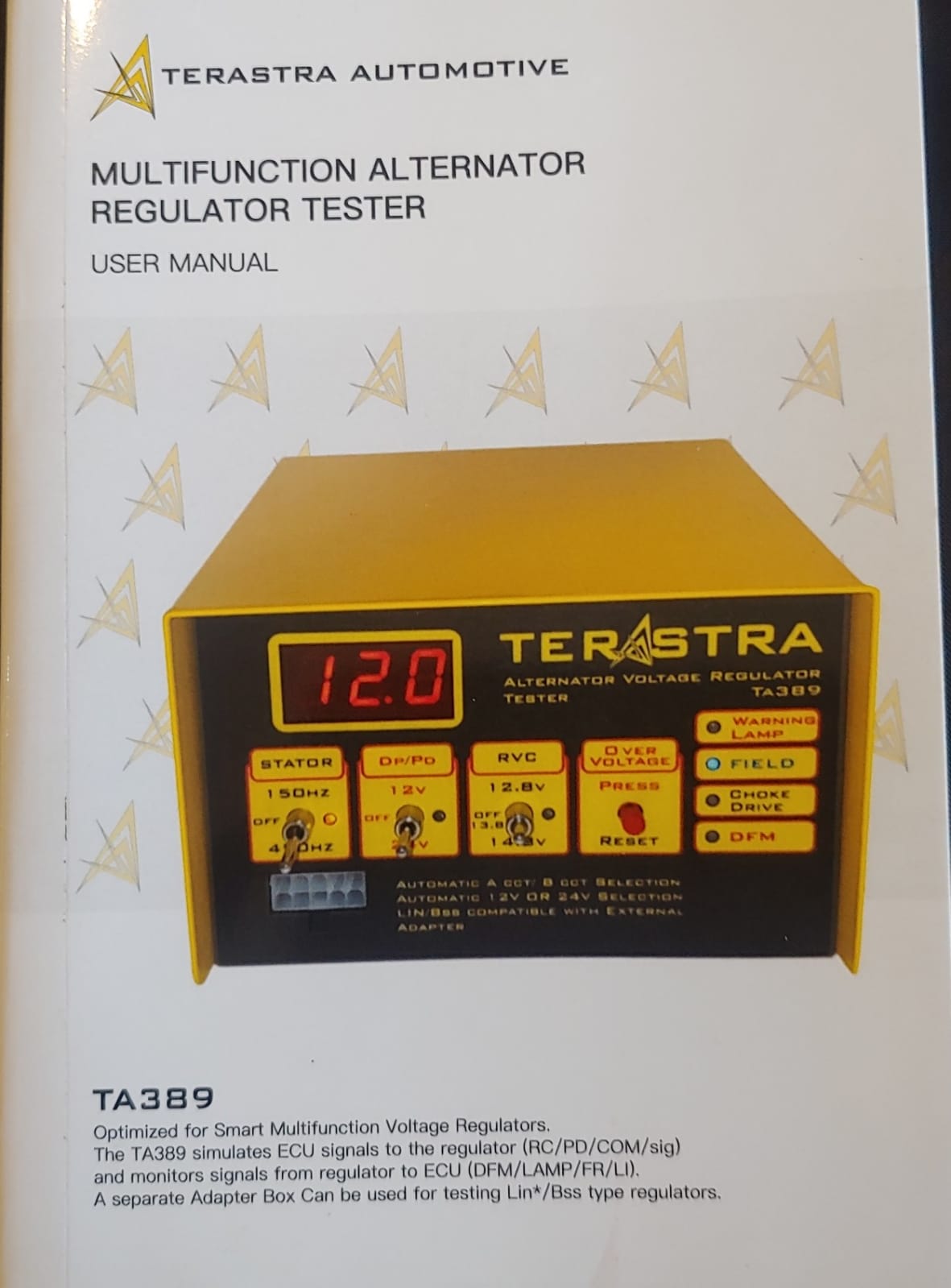

The 473 range includes the latest Regulator tester to test the most recent multifunction regulators found in modern alternators with DP/Com/RC and *Lin/bss (*available with an external adapter).

The Starter Tester Option:
The starter's free-run operation and noise can be assessed with current and voltage readings. Solenoids and fuses isolate the battery current.

The starter is securely clamped. Power is supplied from the batteries. Voltage and current readings can be checked against specifications or compared to a known good unit.

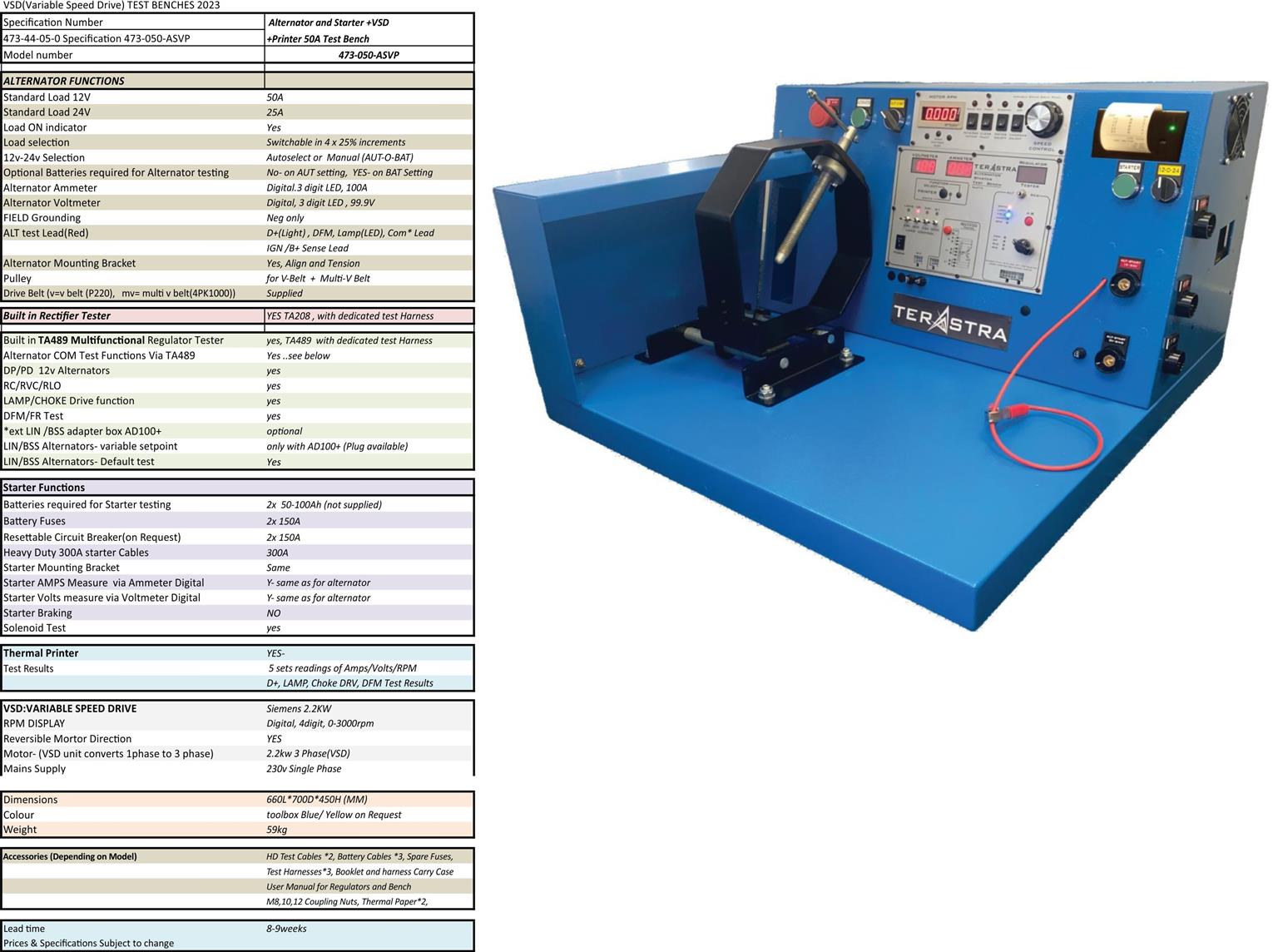

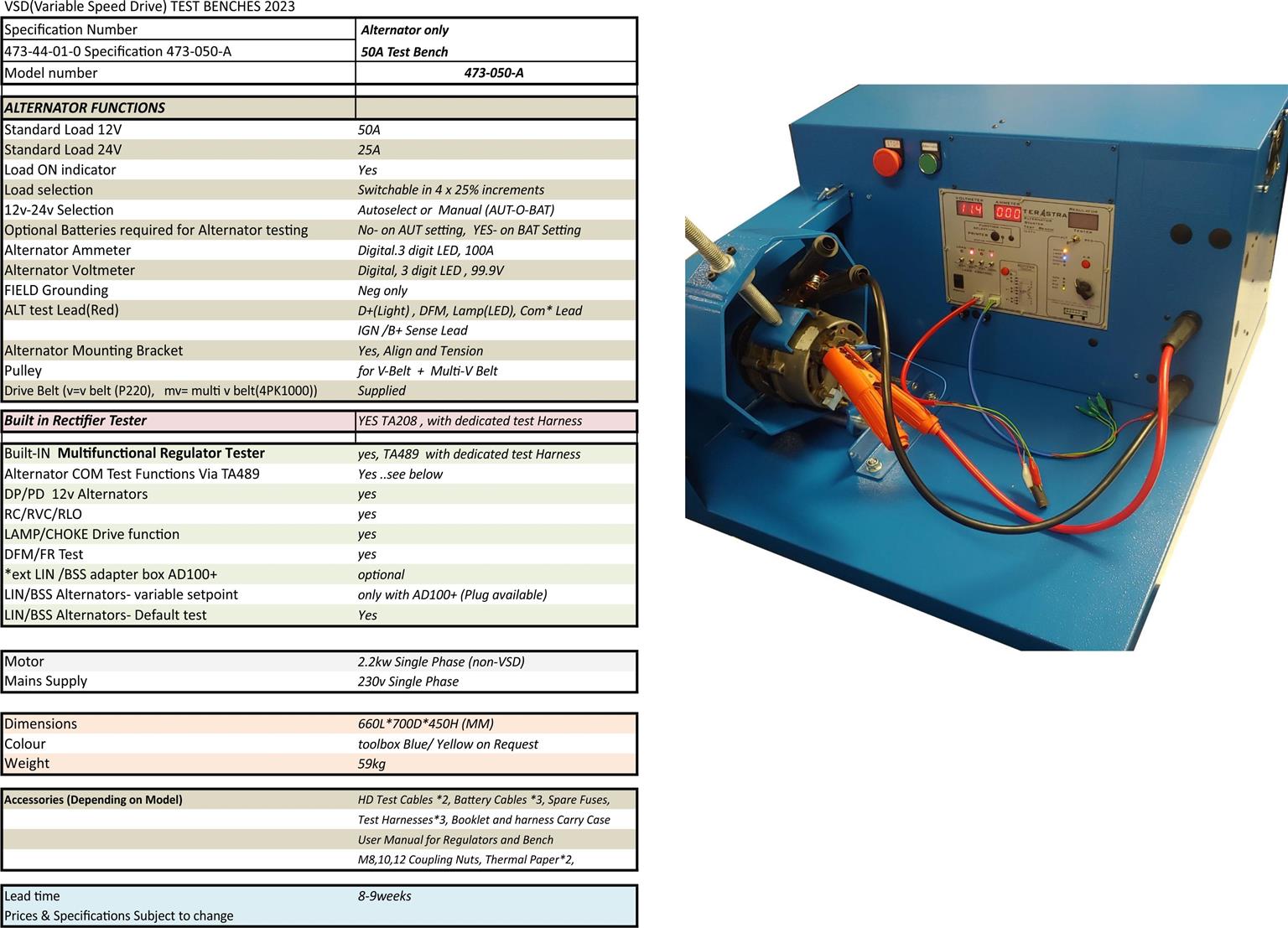

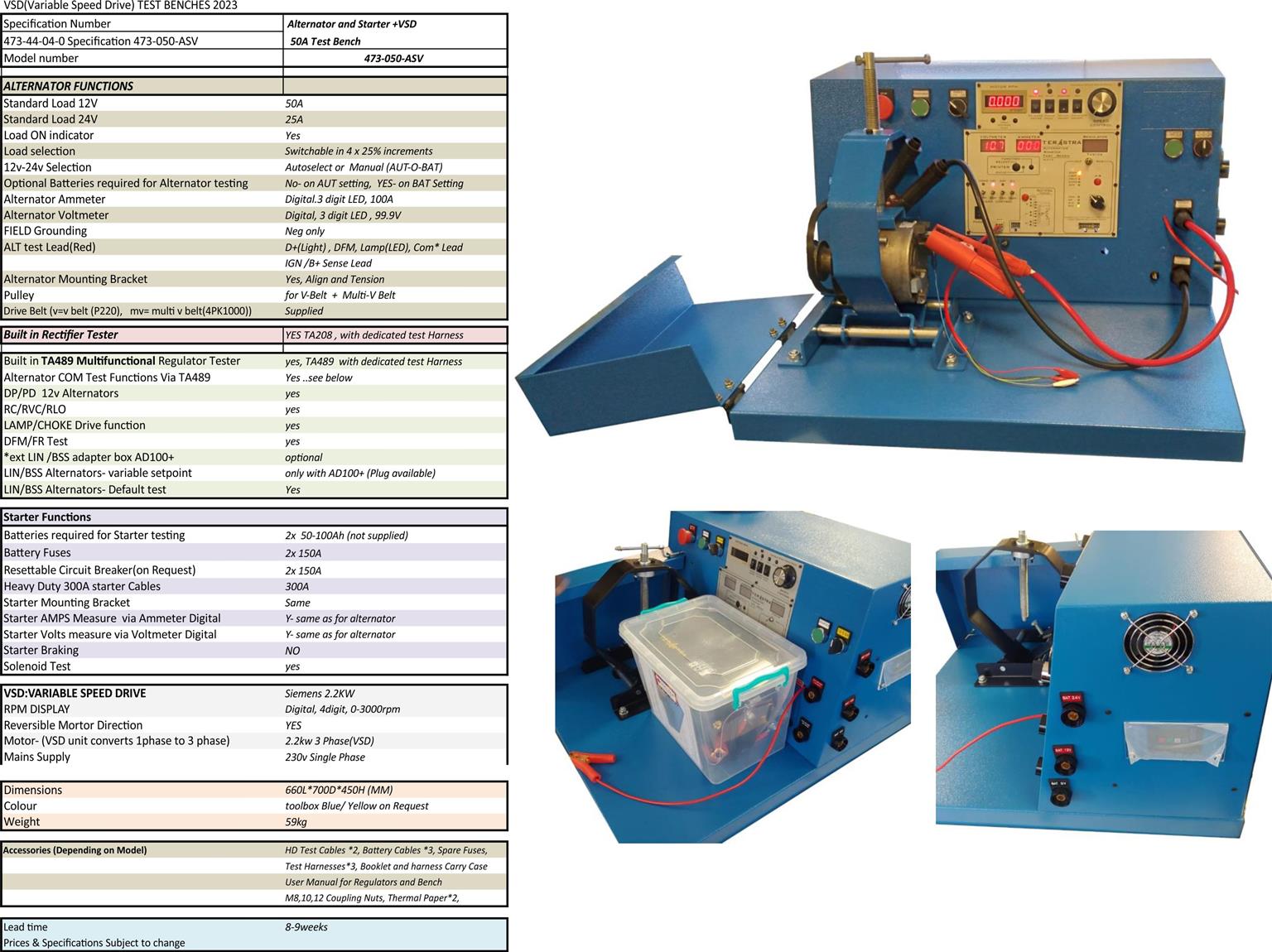

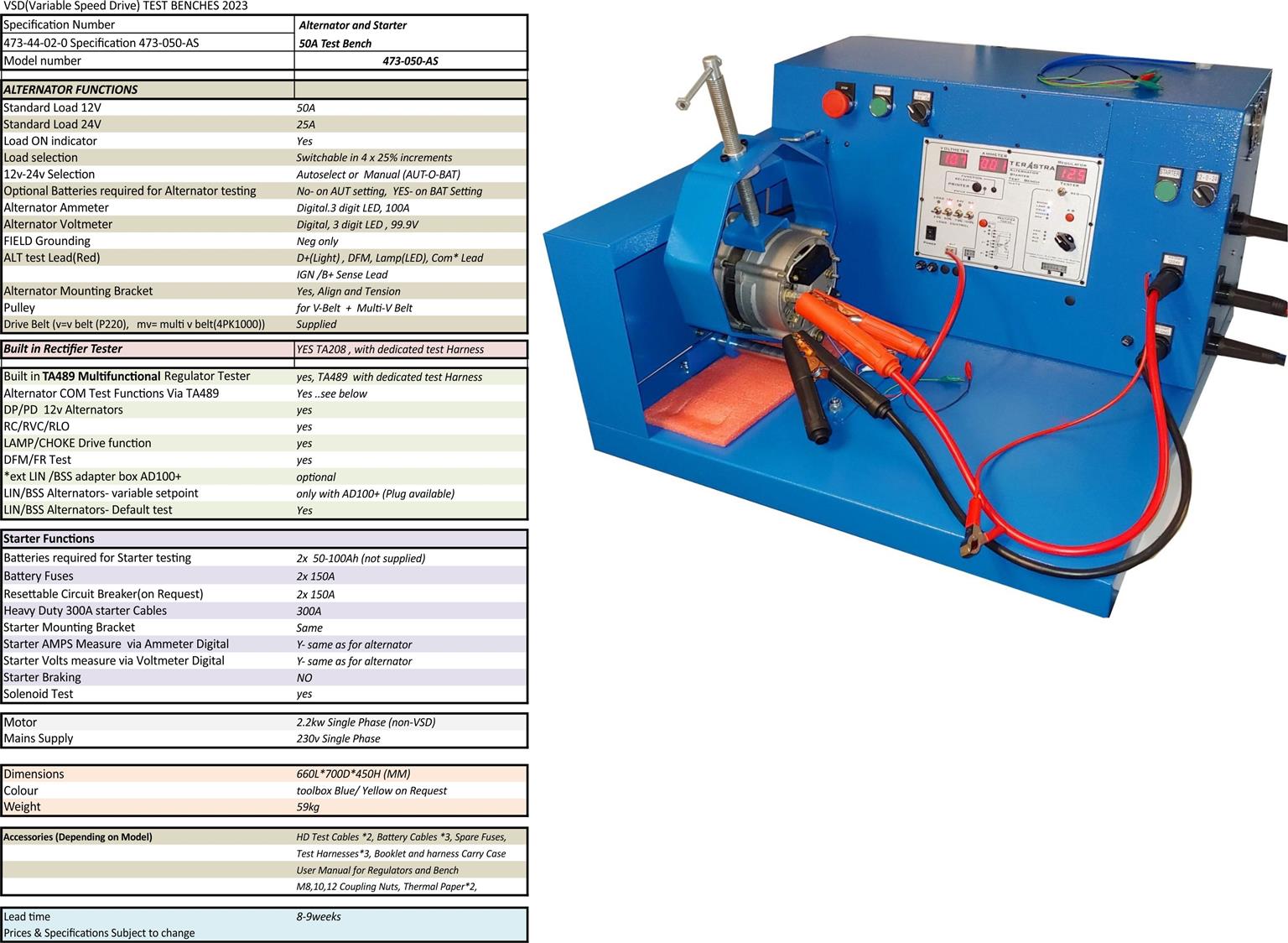

TECHNICAL SPECIFICATIONS:
Please see the attached specifications (subject to change without notice).
