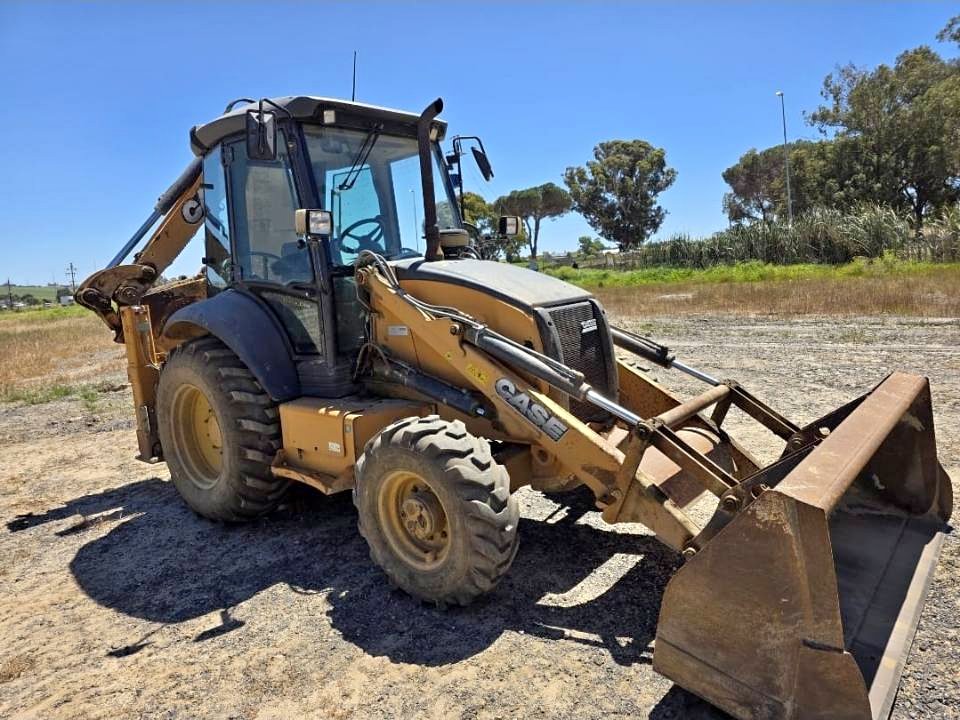

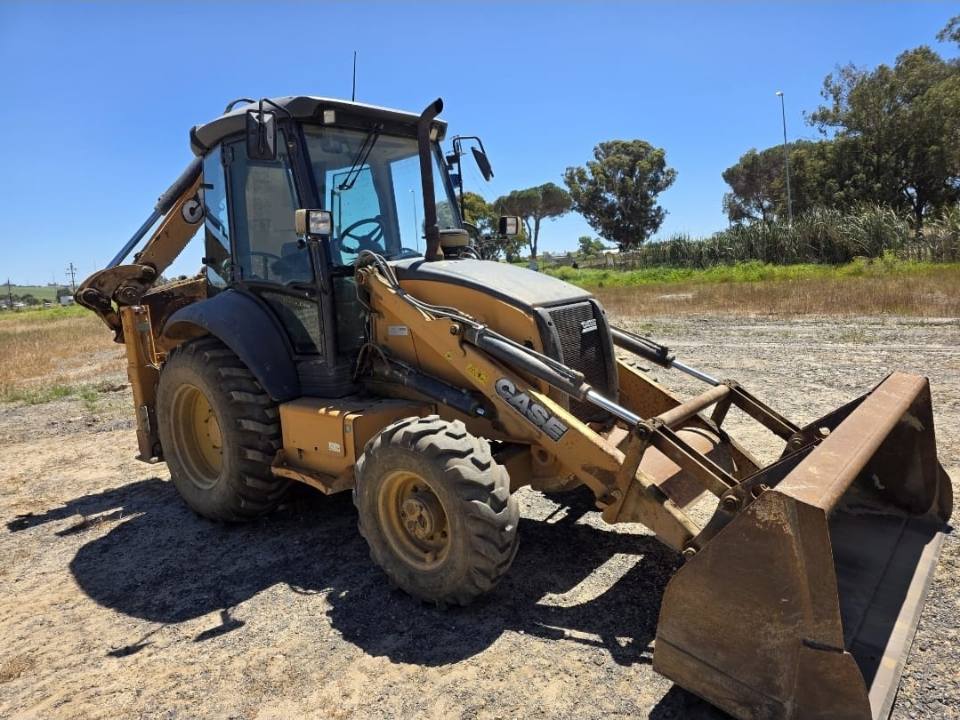

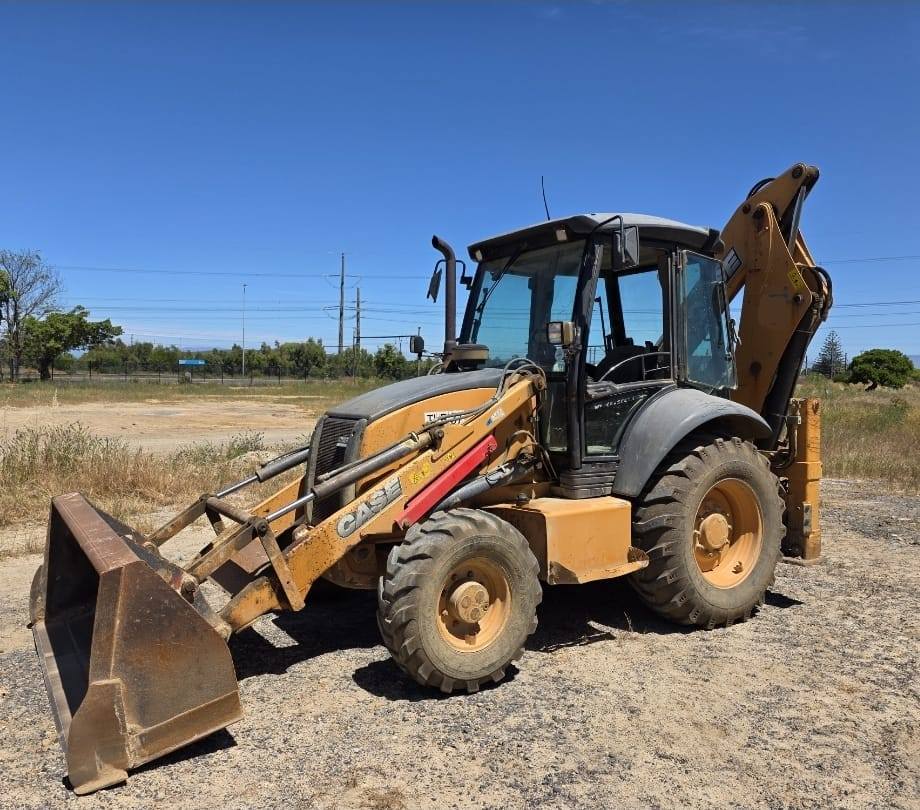

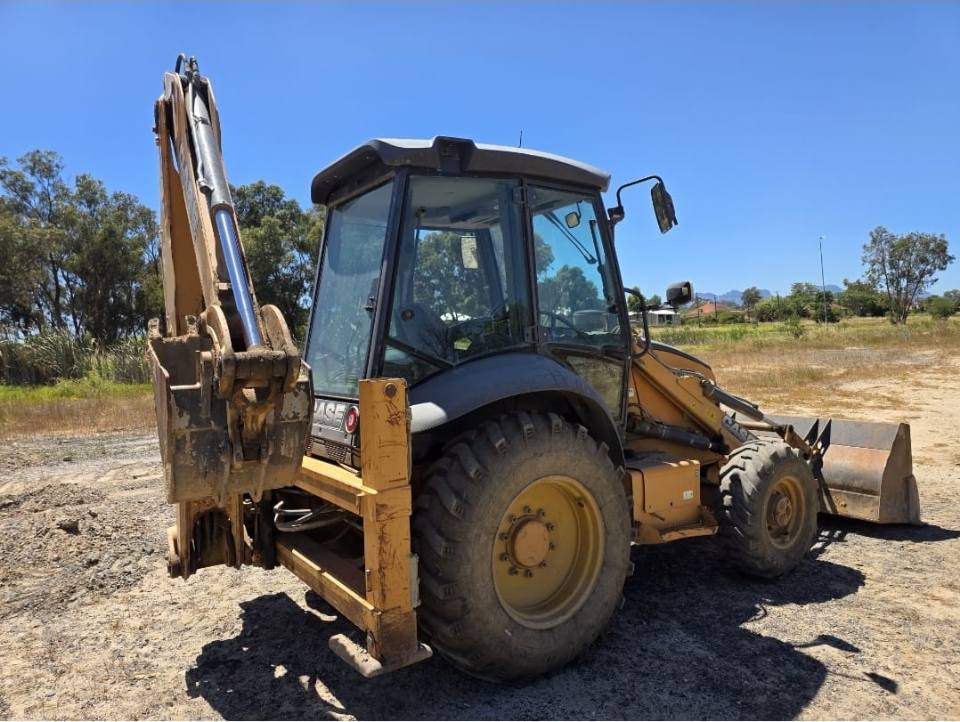

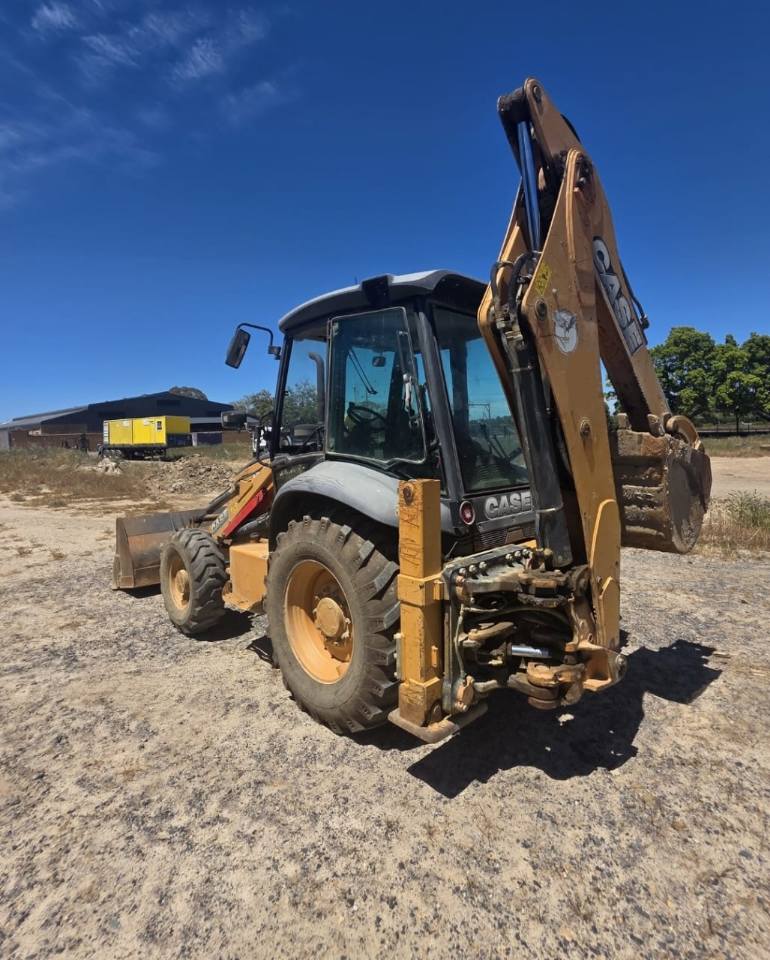

2013 Case 580T

Case 580T tlb 2013 model 6900hours 4x4 Paarl Engine / Powertrain Engine: 4-cyl, turbocharged CNH 445TA / ML5 Displacement: ~4.5 L Net Power: 97 hp (72 kW) Max Torque: ~400 Nm @ ~1,400 rpm Transmission: PowerShuttle, 4 forward / 4 reverse Operating / Weight Operating mass / weight: ~7,950 kg (≈ 8.05 t) per Lectura Max speed (road): ~40 km/h forward, ~47 km/h reverse Hydraulics Hydraulic pump: twin gear pump, flow ~156 L/min Maximum system pressure: ~205 bar Fuel & Fluids Fuel tank capacity: ~145 L Cooling system: ~24 L Hydraulic oil: ~126 L Transmission oil (powershuttle, 4WD): ~20.8 L Rear axle (4WD): ~21.2 L total Backhoe / Loader Performance Dig depth (standard): ~4,369 mm (about 14.6 ft) Dig depth (extended): ~5,435 mm (about 17.8 ft) according to Case spec sheet. Loader bucket capacity: ~1.0 m³ (per Lectura) Breakout force: (loader) ~41.3 gpm pump flow is 156 L/min, relief at ~2973 psi per CodeReady spec sheet Dimensions Transport / Operating width: ~2.43 m Transport height: ~3.90 m (Lectura) Wheelbase: ~2,175 mm (~7.14 ft) per CodeReady Ground clearance: ~348 mm (~1.15 ft) per CodeReady Turning radius (front tire extents): ~4,300 mm (4WD) per Case
