Description

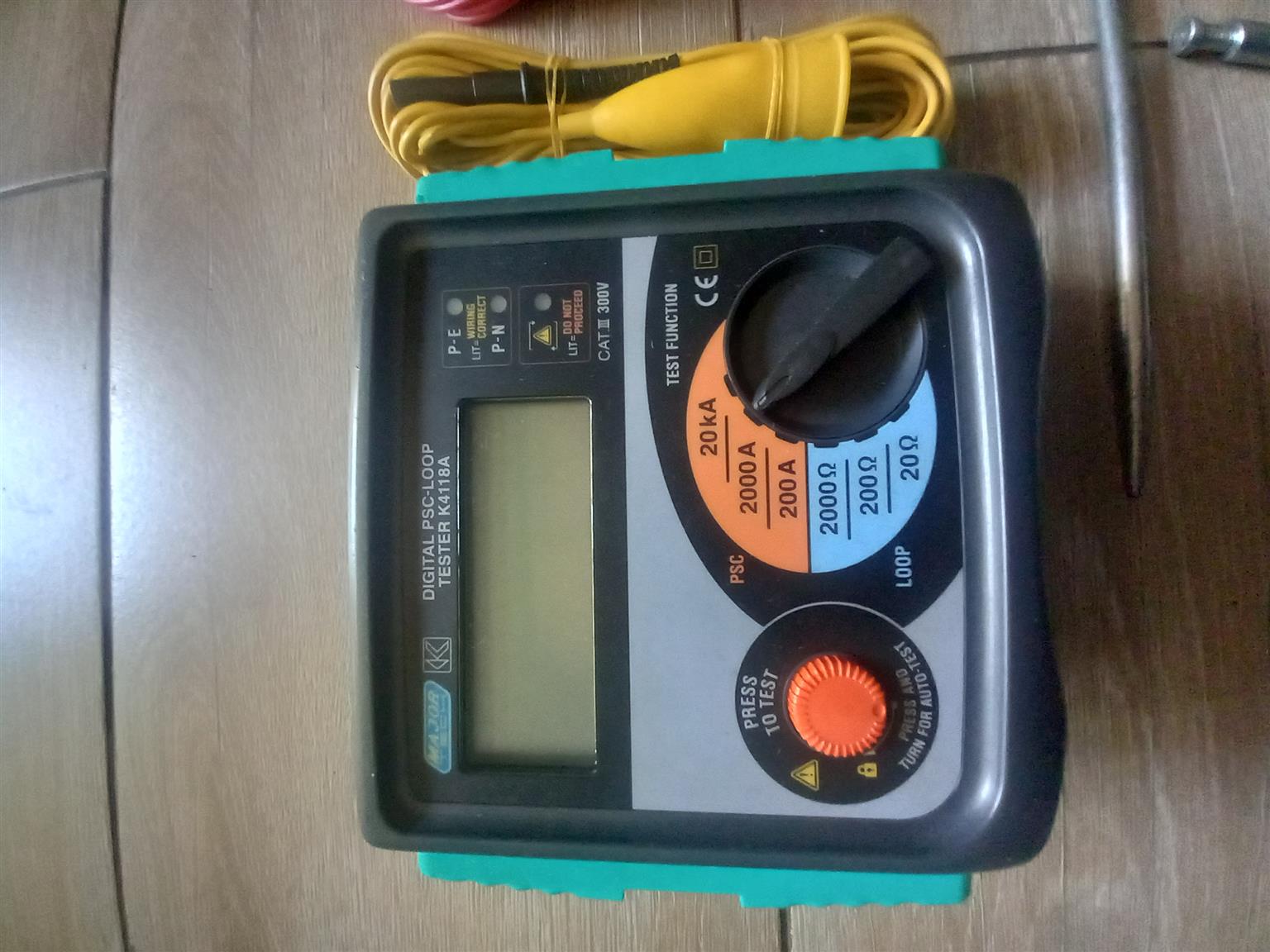

The K4118 instrument is microprocessor-controlled and includes useful features such as mains voltage measurements, neon indication of current wiring status and a lock down test button for hands-free operation. An added feature is a 200 ohm earth electrode resistance test range to check that the earth electrodes comply with the IEC wiring regulations. The Major Tech K4118 Digital Earth Loop Impedance Testers is the most technologically advanced series of such instruments available and are designed to comply with IEC 61557-1 regulations.
This instrument offers convenient and accurate measurements of Earth Loop Impedance at the origin (Ze) and at various points throughout the electrical installation (Zs). The K4118 offers three pre-selectable Loop Impedance ranges and three pre-selectable Prospective Short Circuit (PSC) ranges. When the external earth probe is utilised, it is possible to measure the phase to Earth Loop Impedance of exposed metalwork, such as light fittings, trunking and where applicable conduit.

Features :
- Microprocessor controlled for accuracy and reliability
- Automatic Lock-Out if Test Resistor Overheats
- Direct readout of Prospective Short Circuit Current and Earth Fault Current
- Lock Down Test Button for Continuous use
- Measures low loop impedance of 0.01Ohms
- 3 LED’s for checking correct wiring status
- Safe voltage measurement function
- Visual indication of reversed phase and neutral wiring at socket
- External earth probe option
- Displays mains voltage
- Supplied with distribution board test leads
- IP54 Casing
- CAT III 300V and CAT II 600V

Accessories:
Pouch for leads
Test leads
Instruction manual
COC

Additional Information:
Loop Range: 20 ,200, 2000Ohms
Loop resolution: 0.01Ohms
Loop accuracy: +/-(2%+4)
PSC/PFC: 2000A/20KA
PSC/PFC resolution: 0.1A
PSC/PFC accuracy: Derived from Loop and Voltage measurement
Test Current: 25A
Voltage: 110-260V
Voltage accuracy: +/-(2%+4)
Frequency Response: 50Hz
Display: LCD Display
Enclosure: Moulded case IP54
Power source: 230V AC
Dimensions: 167 x 185 x 89mm
Weight: 750g

What's in the box

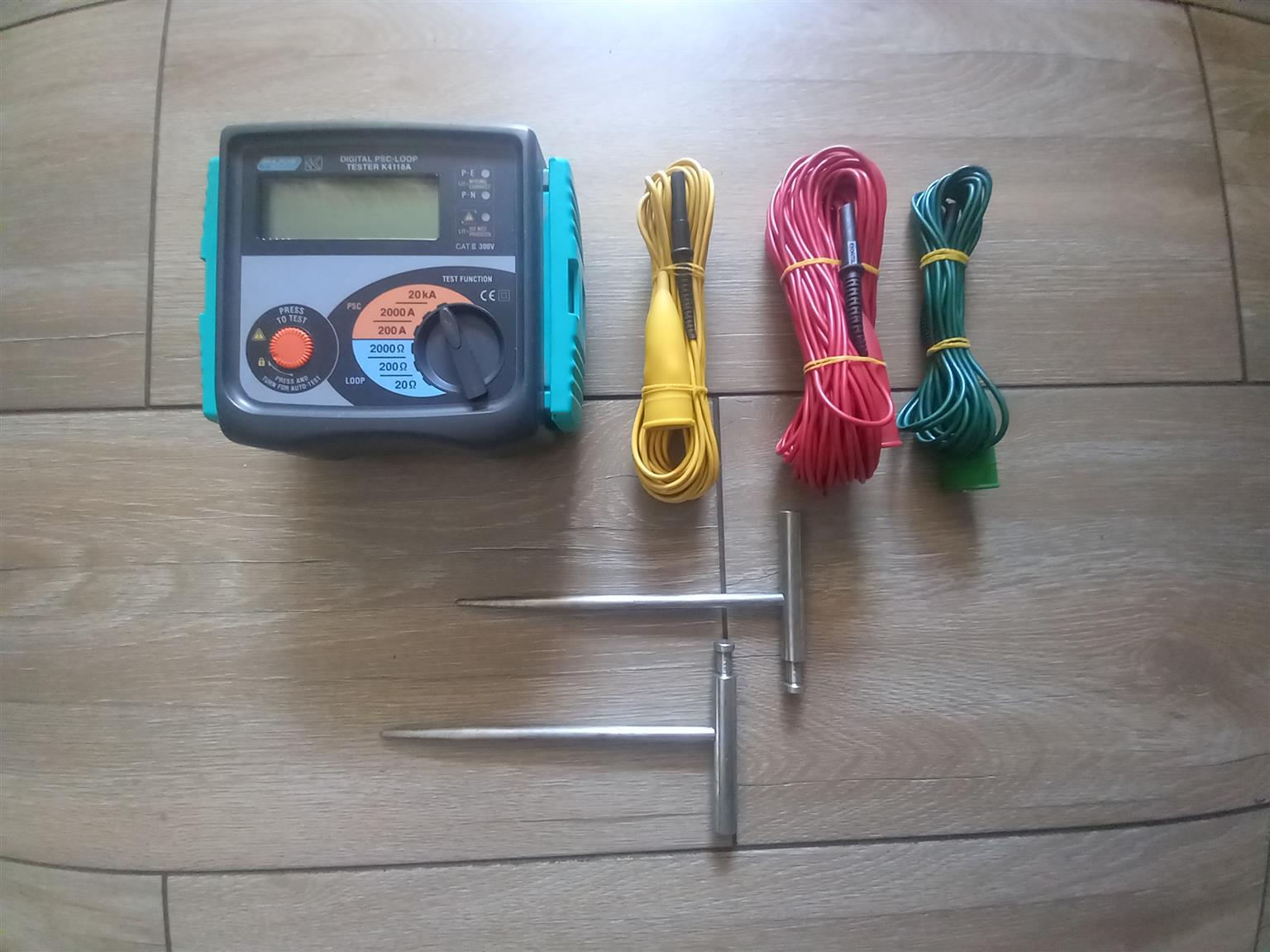

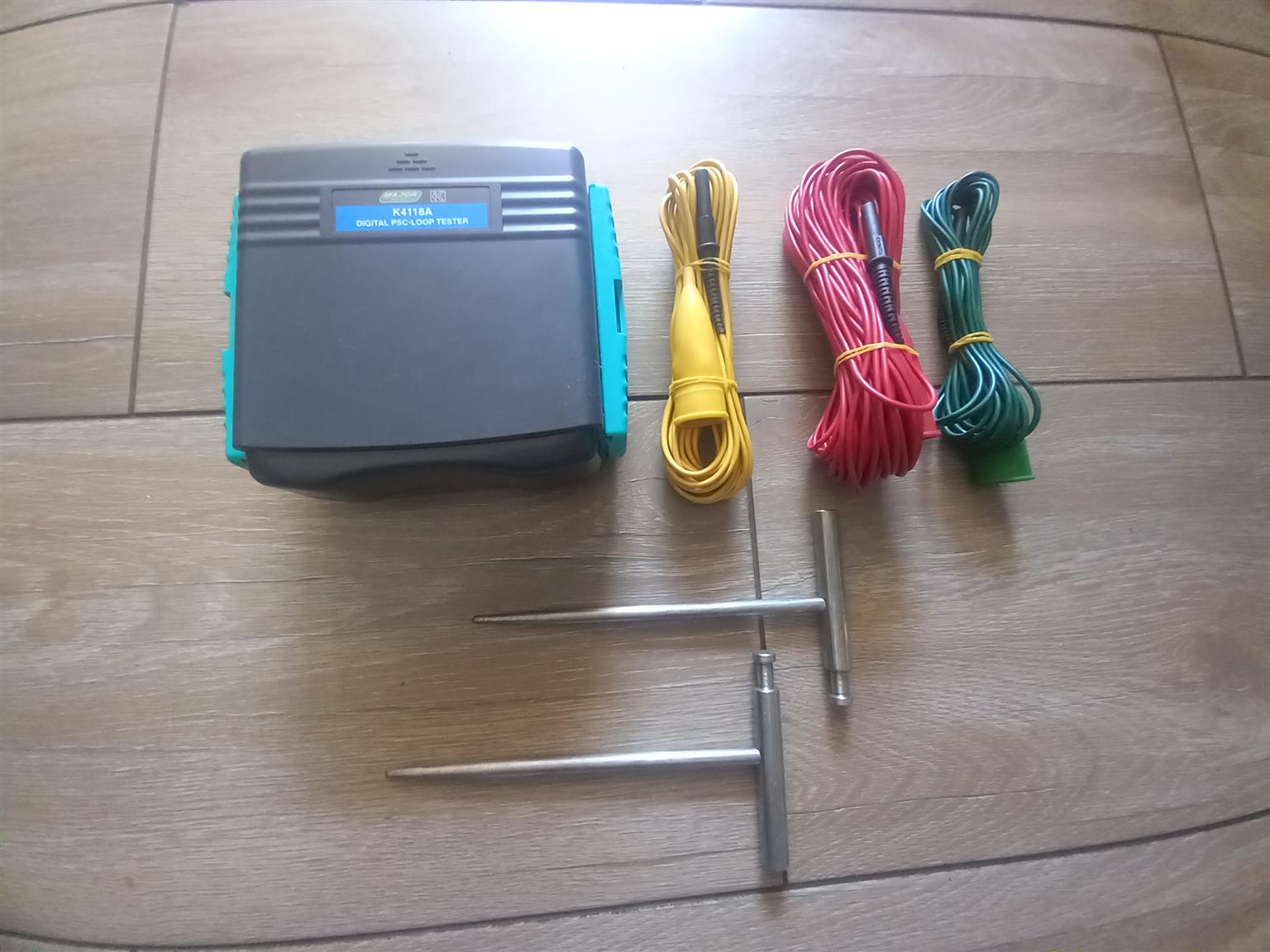

1x K4118 Loop Impedance & PSC Tester
Pouch for leads
Test leads
Instruction manual
COC
