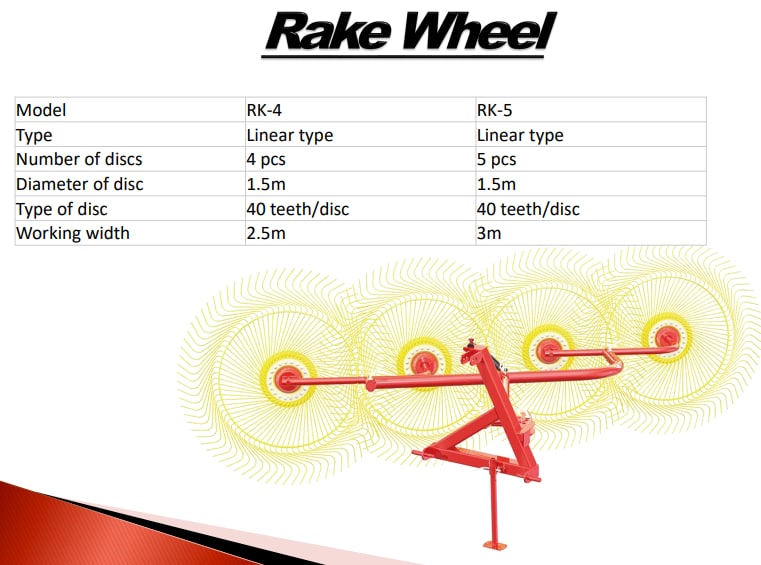

Rake Wheel ( 9lz2.5_Rk-4) ( Official Dealer)

* 65 MN high elasticity spring-tooth ensure our hay rake
can adapt to different landforms.
* Its rocker arm can rotate 90 degrees to facilitate the
tractor to operate in the fields.
* The joint angle could be adjusted to meet different
requirements.
* Working width: 2500mm
* Matched Power: 15Hp
* Disc Quantity: 4pcs
* Swath width: 500-1500mm
* Working speed: 5-15km/h
* Type of disc: 40 teeth/disc 1.50 diameter
* Working efficiency: 2-3ha/h
* Linkage: 3 point mounted
* Weight: 230kg
* Overall width in transport position: 1500mm
* Overall height in transport position: 3500mm
