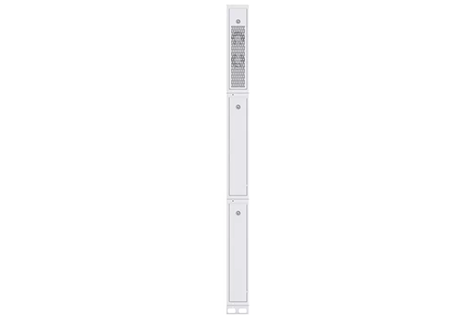

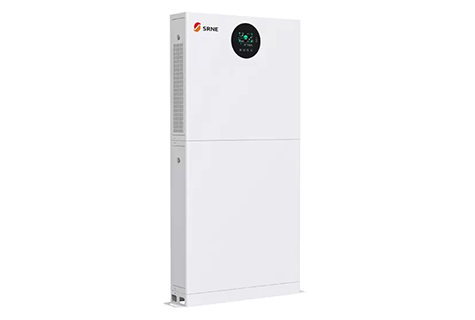

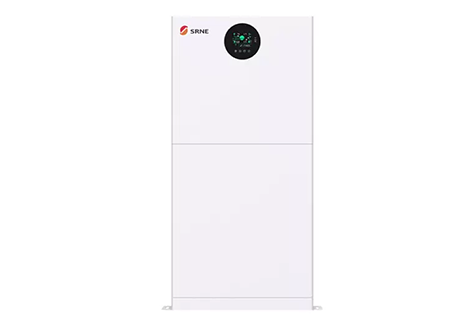

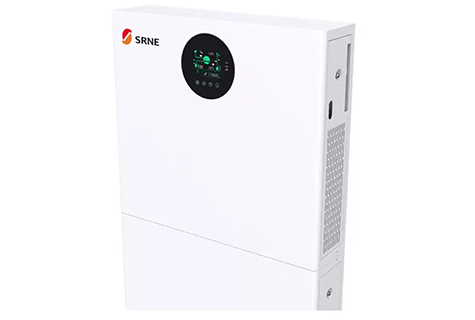

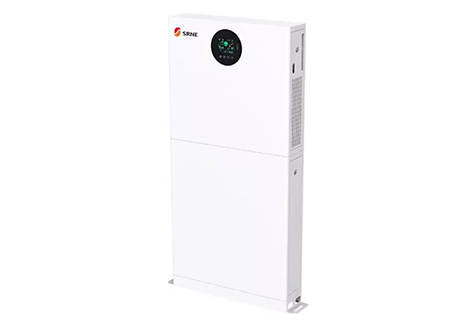

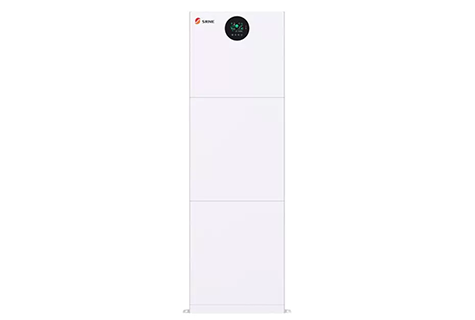

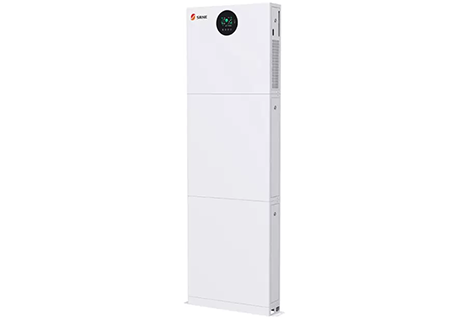

SRNE: Vertical Energy Storage System (All-In-1)

FINANCE AVAILABLE
DELIVERY AVAILABLE

Installation Services available on request.
All required paperwork included.

https://www.oliross.co.za/Products/Home/Details/44dbacce-c664-4591-8e00-868d48efbe21/srne-vertical-energy-storage-system-all-in-1-sr-eov24

General Data
Package Model: SR-EOV24-5.0S-S1
Long Life: 5000 Cycles @ 80% DOD
Easy To Install & Use
Multiple Working Modes
Fast & Flexible Charging
Scalability: Up to 4 Batteries In Parallel

Description
Battery Technical Specification
Battery Model: SR-EOV24-5.0A-E1
Number Of Batteries: 1
Battery Energy: 5.12KWH
Battery Capacity: 200AH
Weight: 100Kg
Dimension: 1190mmL x 600mmD x 184mmH
Battery Type: LiFePO4
Battery Rated Voltage: 25.6V
Battery Working Voltage Range: 22.4VDC – 28.8VDC
Maximum Charging Current: 150A
Maximum Discharging Current: 150A
DOD: 80%
Designed Life Span: 5000 Cycles

Inverter Technical Specification
Inverter Model: SR-EOV24-3.5S-C1
PV Charge
Solar Charge Type: MPPT
Maximum Input Power: 4000W
PV Charging Current Range: 0A-80A
PV Operating Voltage Range: 120VDC-500VDC
MPPT Voltage Range: 120VDC-450VDC
AC Charge
Maximum Charge Power: 2240W
AC Charging Current Range: 0A-80A
Rated Input Voltage: 220VAC-230VAC
Input Voltage Range: 90VAC-280VAC
AC Output
Rated Output Power: 3500W
Maximum Output Current: 30A
Frequency: 50Hz
Overload Current: 35A
Battery Inverter Output
Rated Output Power: 3500W
Maximum Peak Power: 6000VA
Power Factor: 1
Pated Output Voltage: 230VAC
Frequency: 50Hz
Auto Switch Period: <15ms

Environment Limit
Communication: RS485 / CAN / WIFI
Charging Temperature Range: 0°C to 45°C
Discharging Temperature Range: -10°C to 45°C
Operation Humidity: 5% to 85%
Cooling Mode: Force-Air-Cooling @ 60bB
Ingress Protection: IP20
Operation Environment: Indoor
Installation Method: Vertical
Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
