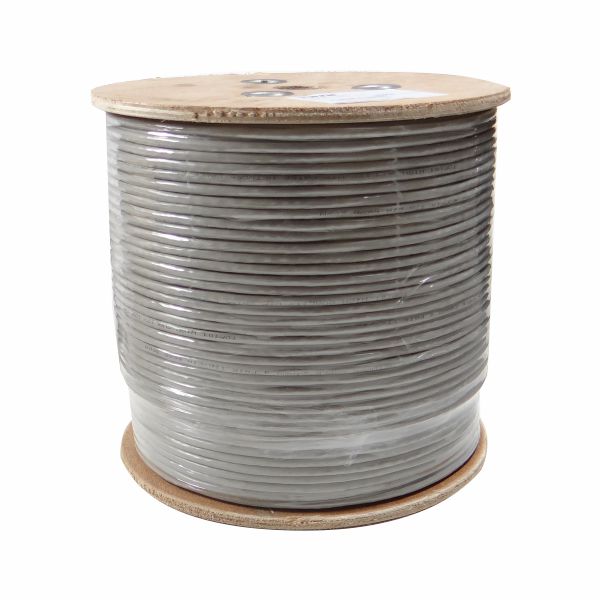

TOP101 Cat5e Bare Pure Copper UTP Network Cable 305M Roll

TOP101 Cat5e Bare Pure Copper UTP Network cable has under gone and passed the performance testing via the fluke test. It is compliant with various network standards such as the 10BASE-T, 100BASE-T,100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active and the TR-16 Passive. The TOP101 Cat5e Bare Pure Copper UTP cable, as its name suggests, is constructed from 24AWG bare copper. It is packaged in an easy to use wooden reel and come in 305m rolls. This cable is your best choose when doing networking installations.


Specifications:

No. of pairs: 4 pairs
Conductor configuration: 0.5mm 24AWG
Conductor material: UTP Bare Copper
Insulation material: HDPE
Insulation dimension: 0.9mm
Outer jacket: PVC
Color: Grey
Jacket thickness: 0.54mm
Package: Wooden Reel
Length: 305 Meters
Rip Cord: Yes
Compliant Network Standards:
10BASE-T, 100BASE-T, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
