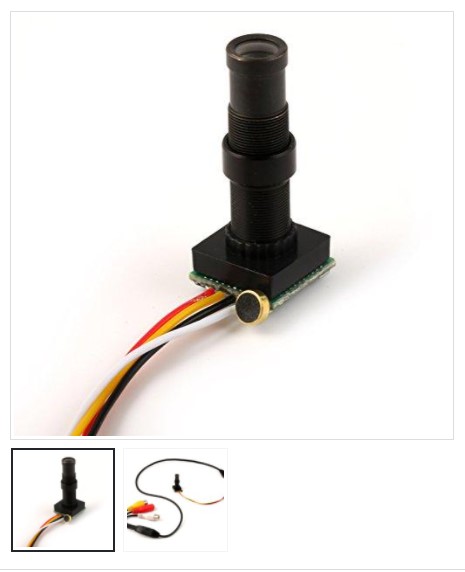

Micro Pinhole Camera

CCTV Camera Specifications:
image sensor: 1/4″ HD Sensor
Resolution: 1280*960
pixel : 500W pixel
Horizontal Resolution:600 TVL
Minimum illumination:0.05Lux
S/N Ratio:>48db
Gamma Characteristic: 0.45
Refresh rate: 60f/s NTSC 50f/s PAL
Electronic Shutter: NTSC: 1/60, 1/100000s
Operating Temperature : – 20℃ ~ +60℃
Power Consumption: PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT
PIN4- white AUDIO OUT , if connect power line,it was 12VDC.
White balance: Auto
Video output:1vp-p75Ω; Negative
Synchronizing system: interior synchronization
Image Color: Color
