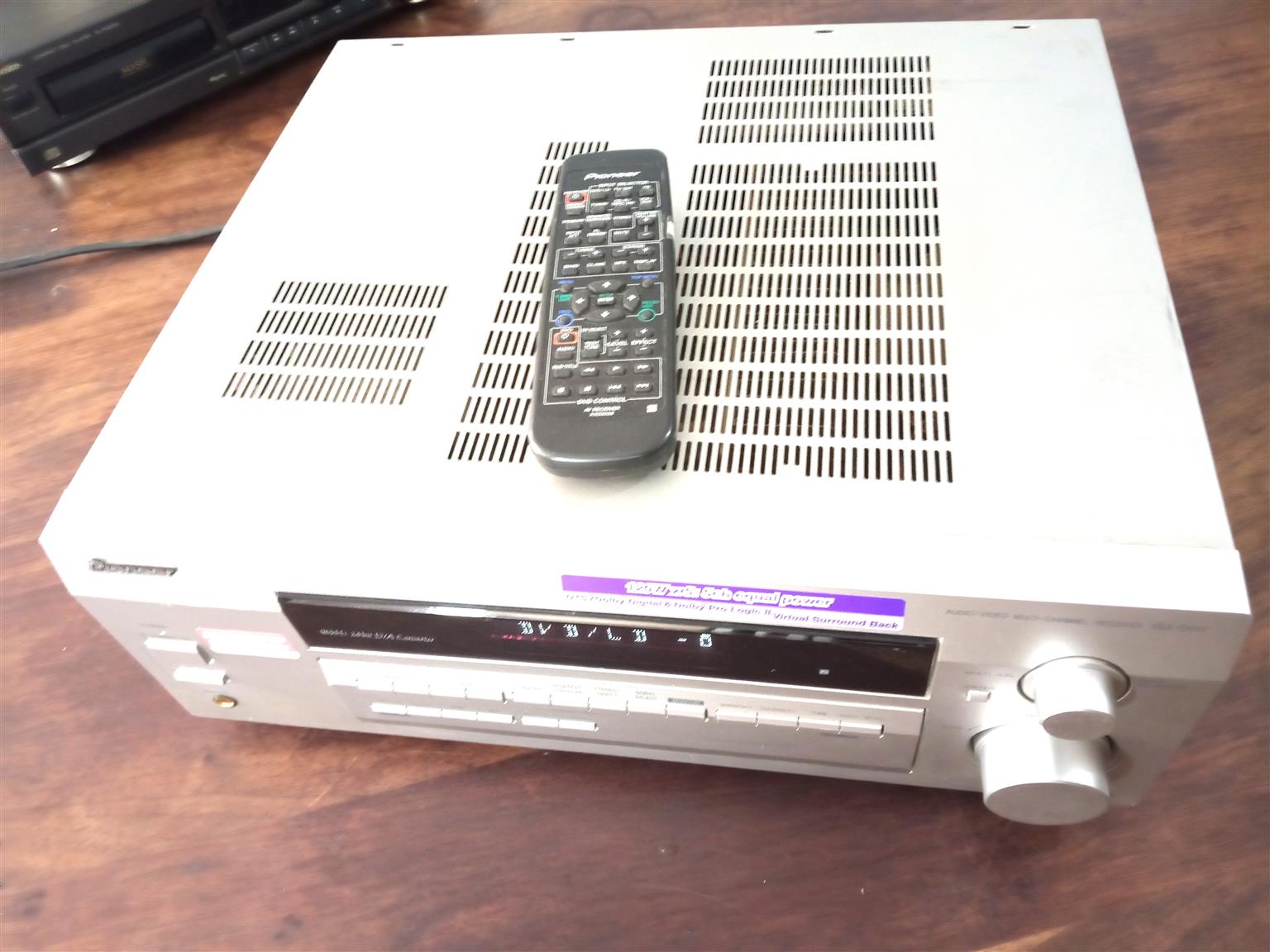

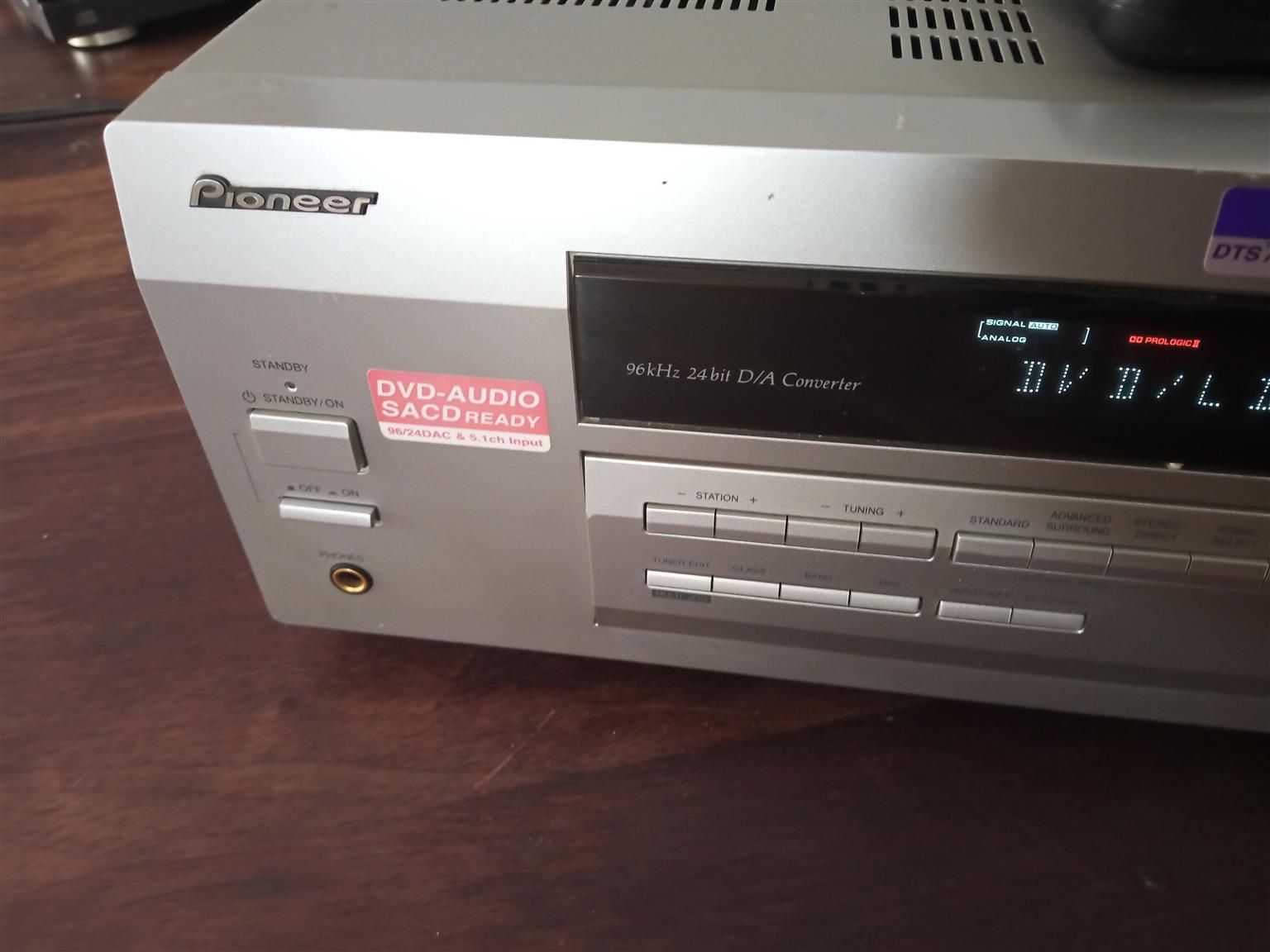

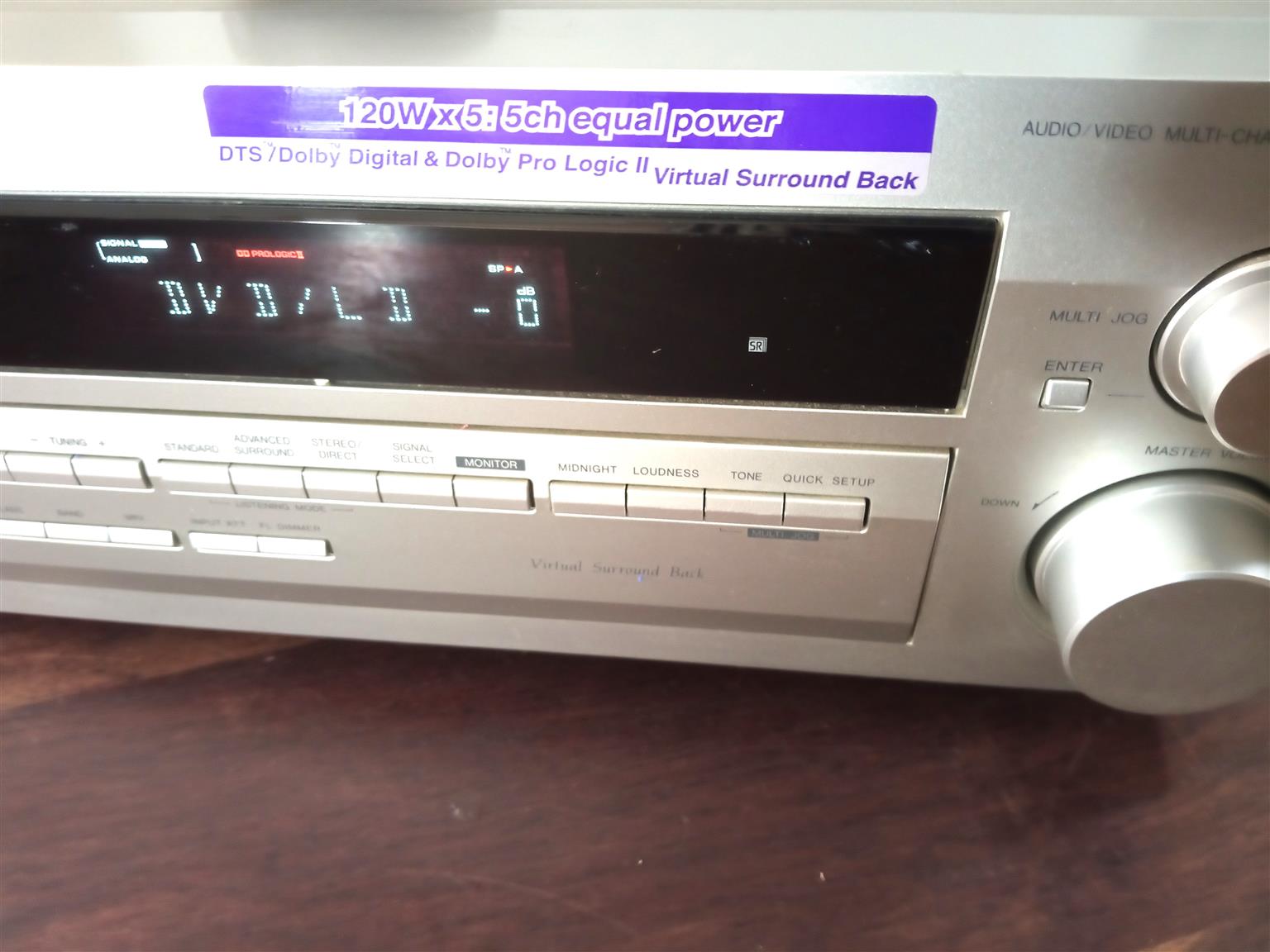

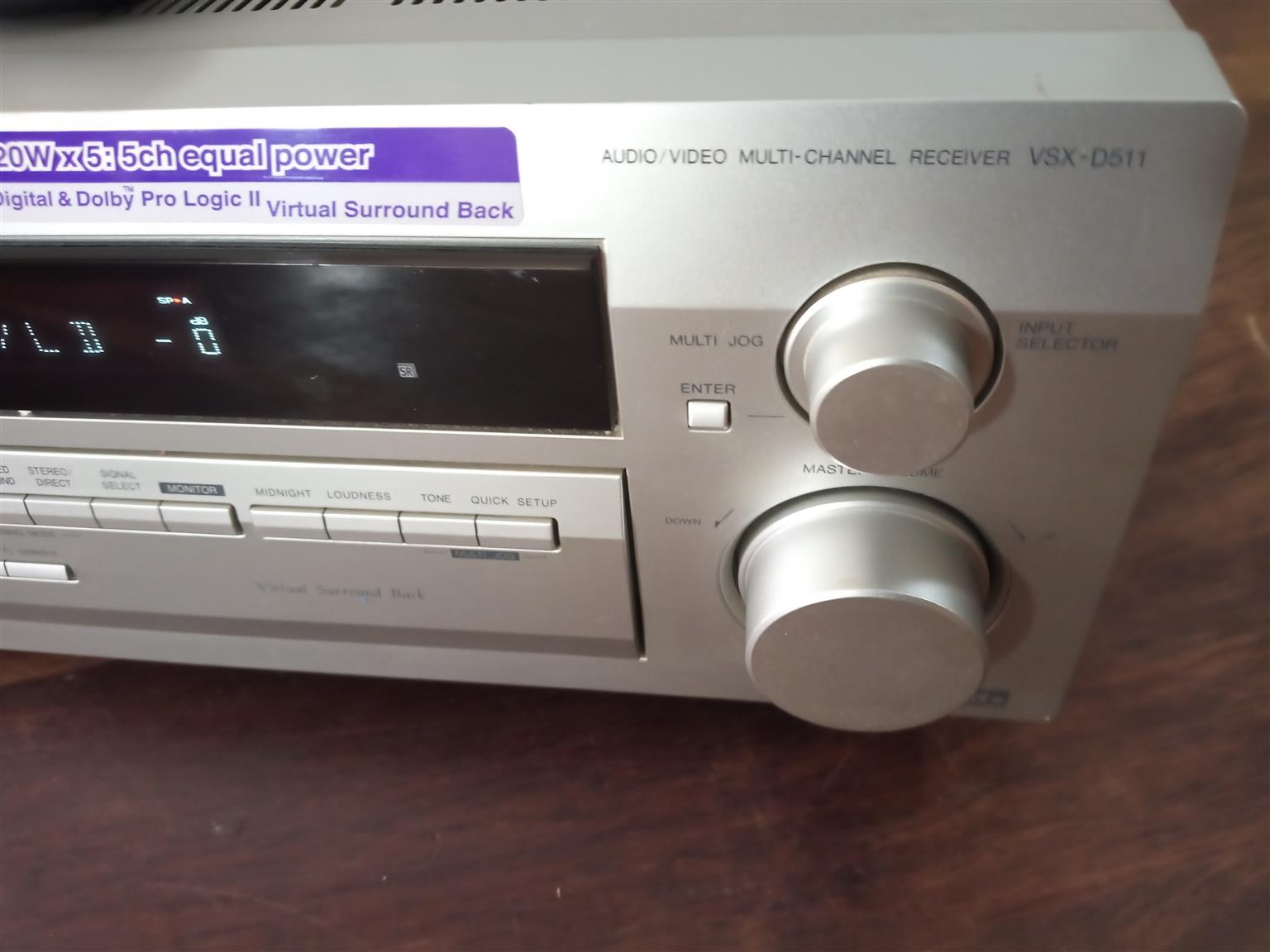

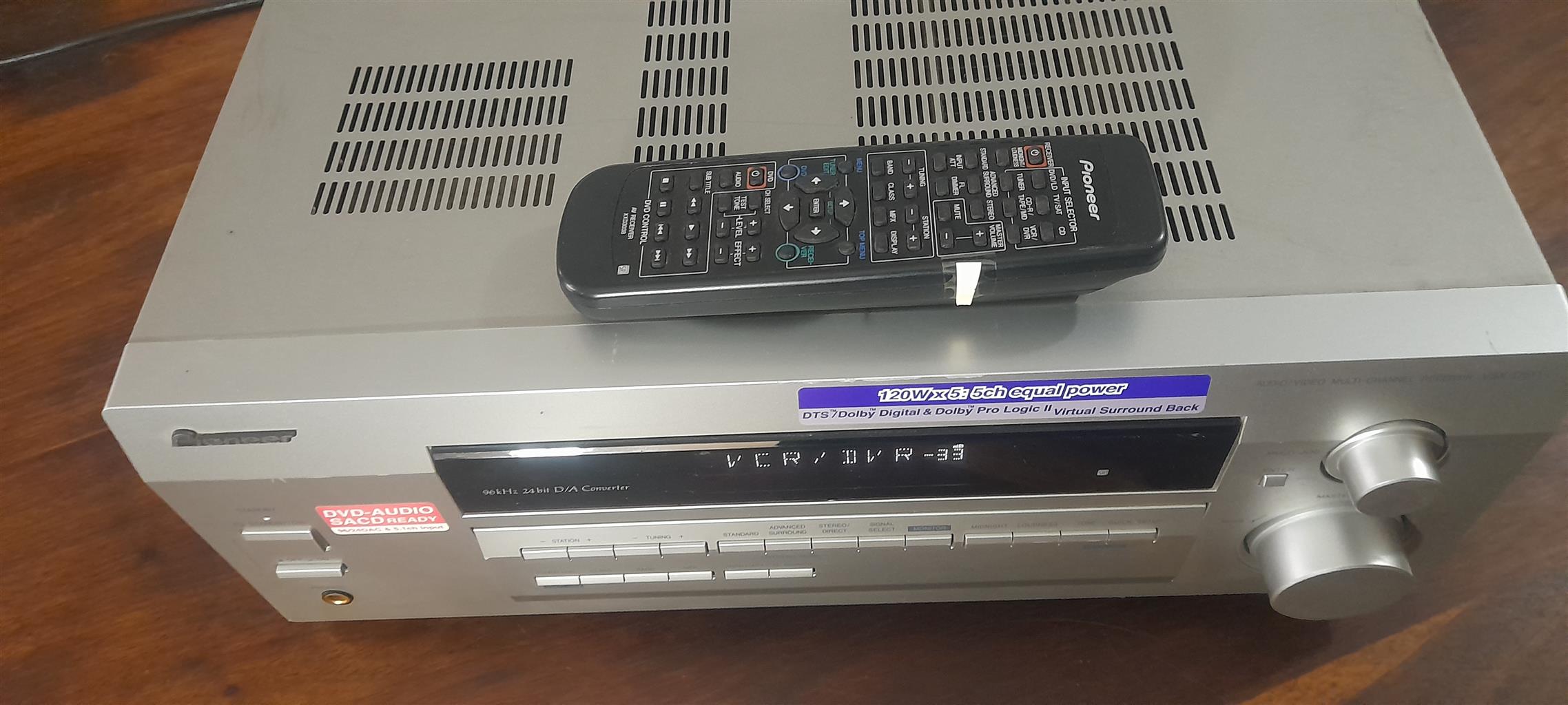

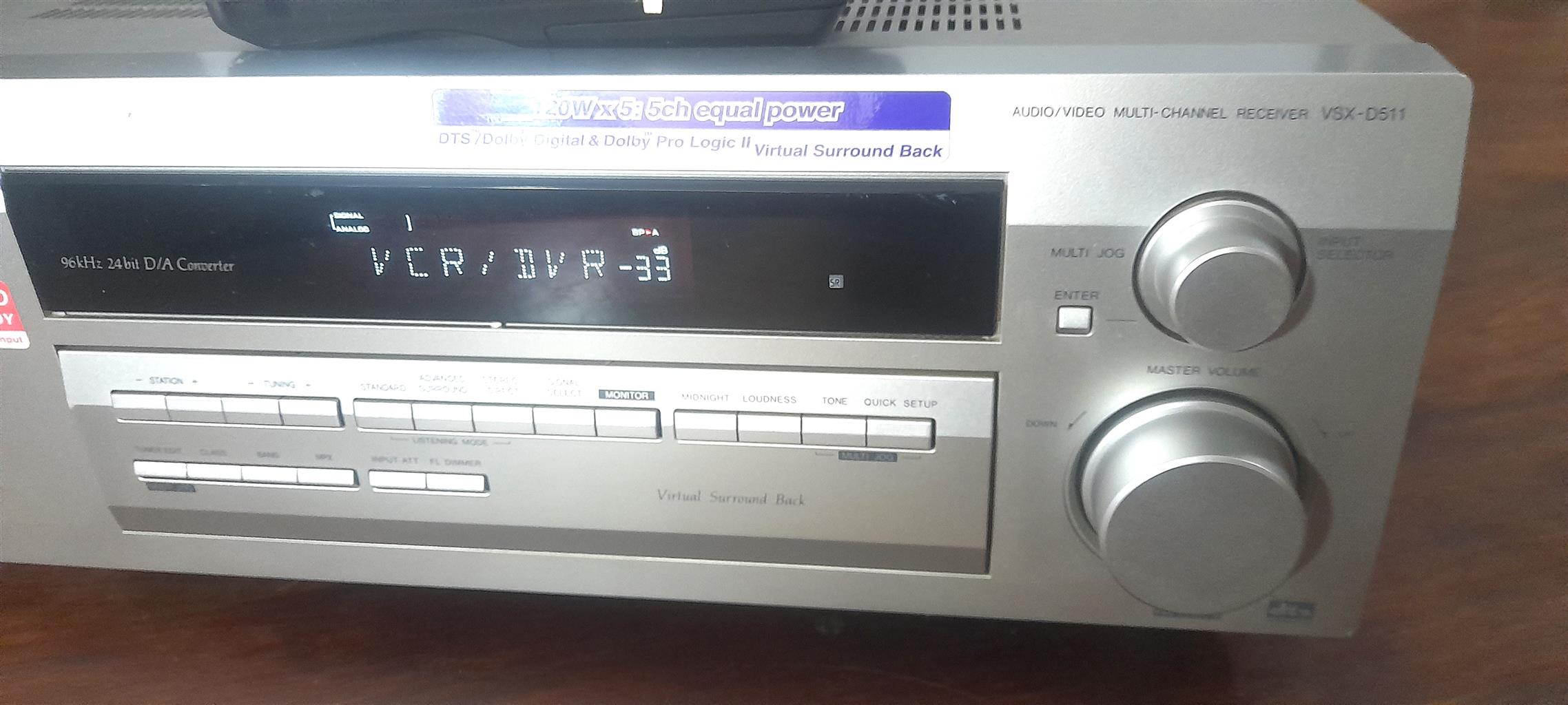

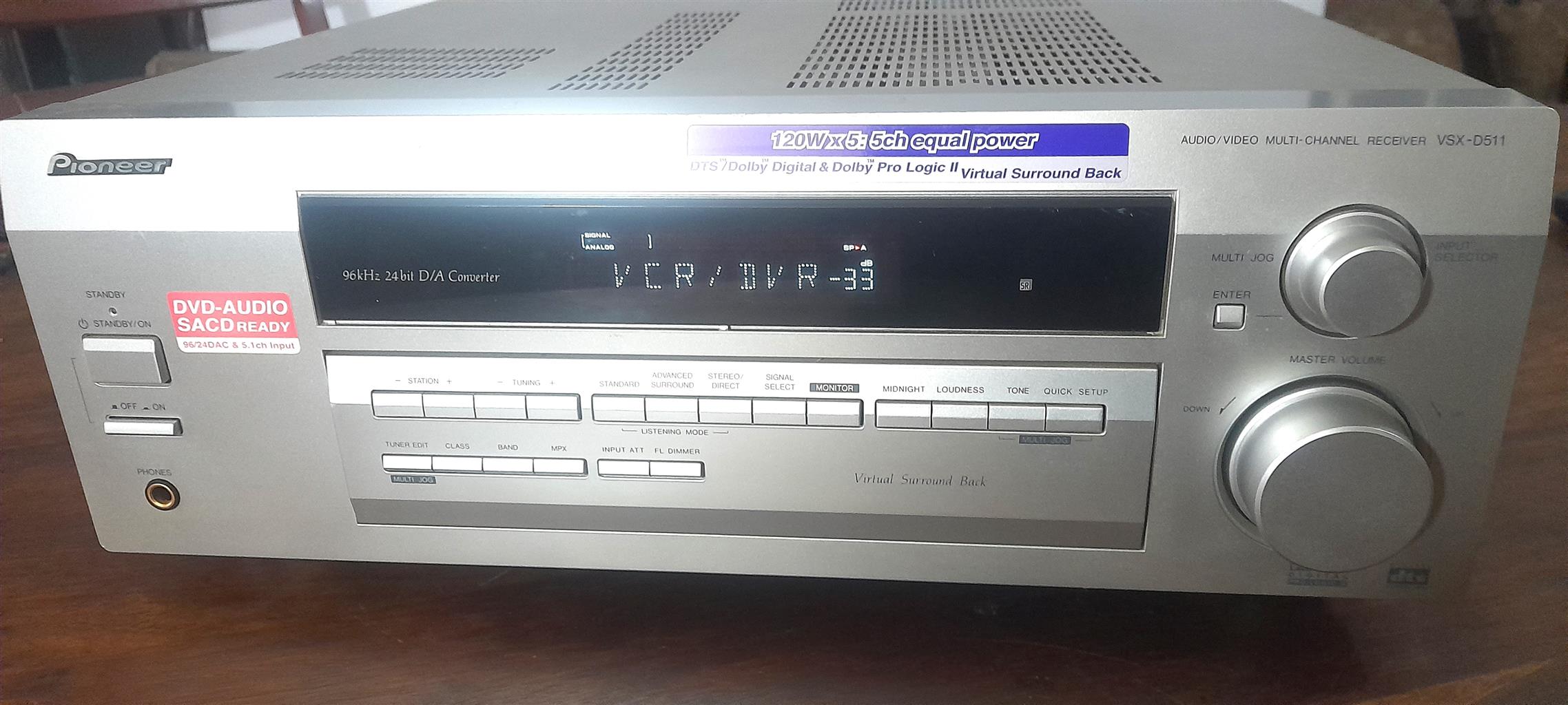

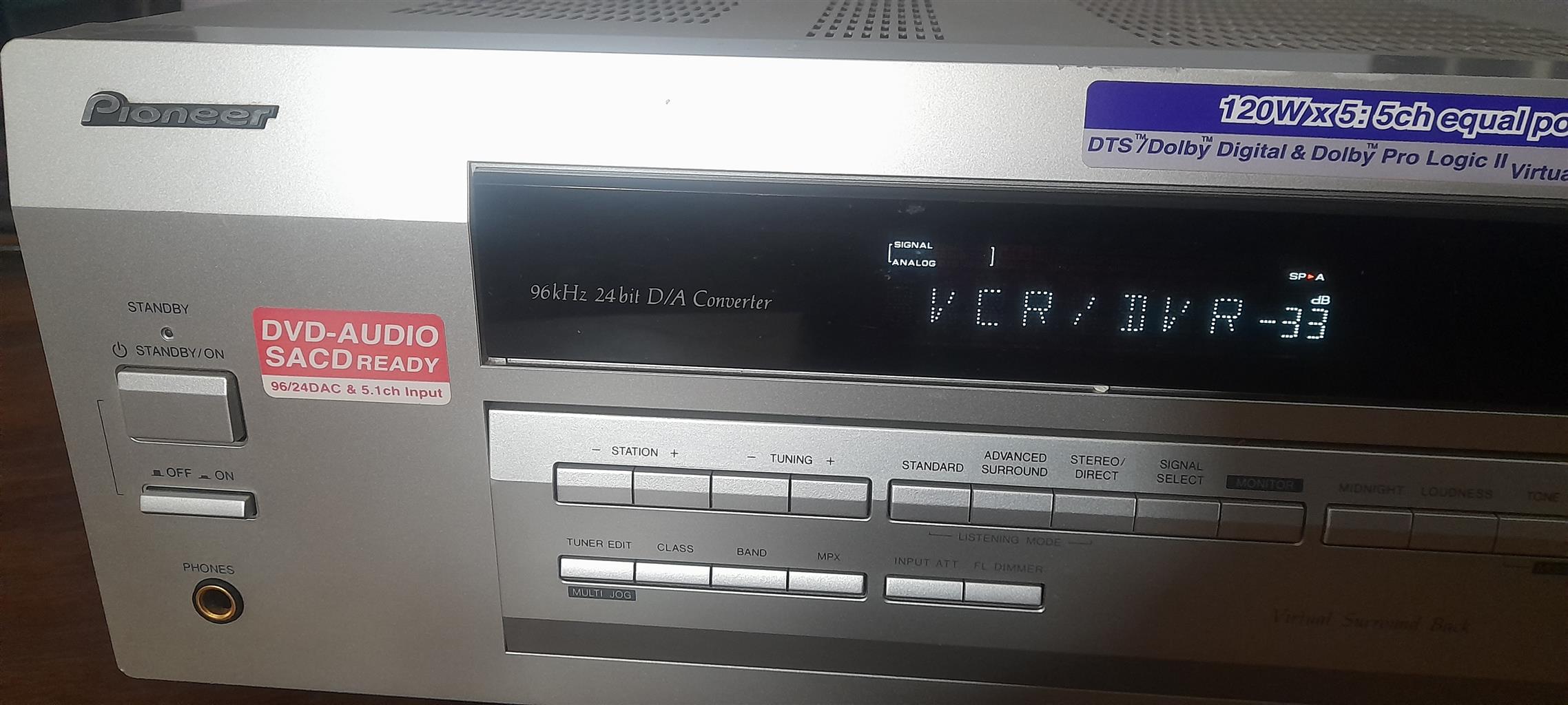

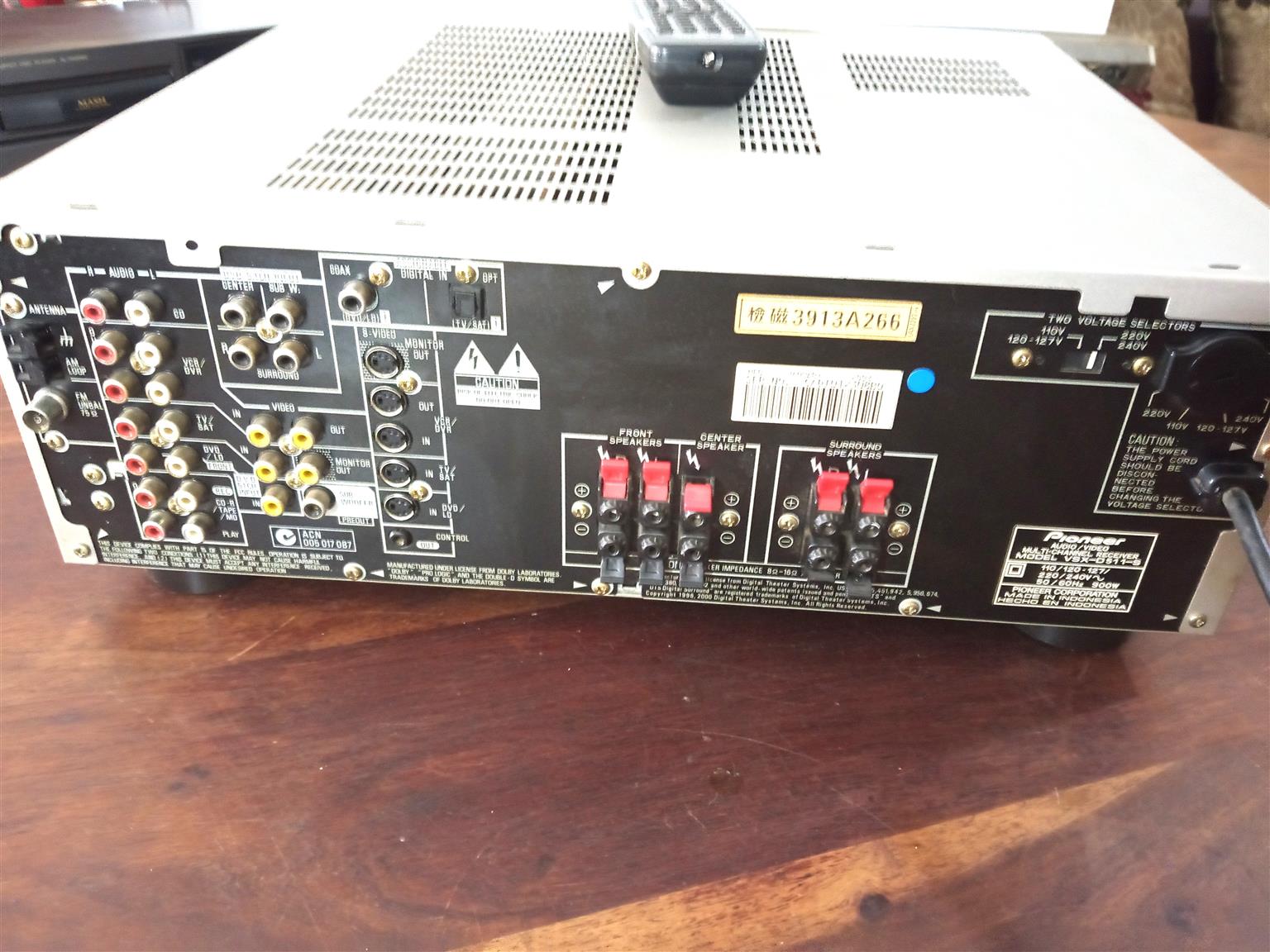

Pioneer VSX-D511 Audio Video Multi Channel Receiver

Pioneer VSX-D511 Audio Video Multi Channel Receiver
Continuous average power output of 120 watts*per channel, min., at 8 ohms, from 20 Hz to 20,000 Hz with no more than 0.2 %** total harmonic distortion (front).
o Continuous Power Output (Stereo)Front - 120 W per channel(20–20,000 Hz, THD 0.2 %, 8 Ω)
Continuous Power Output (Surround)Front 120 W per channel(1kHz, THD 1.0 %, 8 Ω)
o Center 120 W (1kHz, THD 1.0 %, 8 Ω)
o Surround 120 W per channel(1kHz, THD 1.0 %, 8 Ω)
Input (Sensitivity/Impedance): CD, VCR/DVR, CD-R/TAPE/MD,DVD/LD, TV/SAT - 200 mV/47 kΩ
Frequency Response: CD, VCR/DVR, CD-R/TAPE/MD, DVD/LD,TV/SAT 5 Hz to 100,000 Hz dB
Output (Level/Impedance): VCR/DVR REC, CD-R/TAPE/MD REC- 200 mV/2.2 kΩ
Tone Control:
o BASS ± 6 dB (100 Hz)
o TREBLE ± 6 dB (10 kHz)
o LOUDNESS +6.5 dB/+3 dB (100 Hz/10 kHz)(at volume level –50 dB)
Signal-to-Noise Ratio(IHF, short circuited, A network): CD, VCR/DVR, CD-R/TAPE/MD,DVD/LD, TV/SAT - 96 dB
Signal-to Noise Ratio: [EIA, at 1 W (1 kHz)]CD, VCR/DVR, CD-R/TAPE/MD,DVD/LD, TV/SAT - 79 dB
